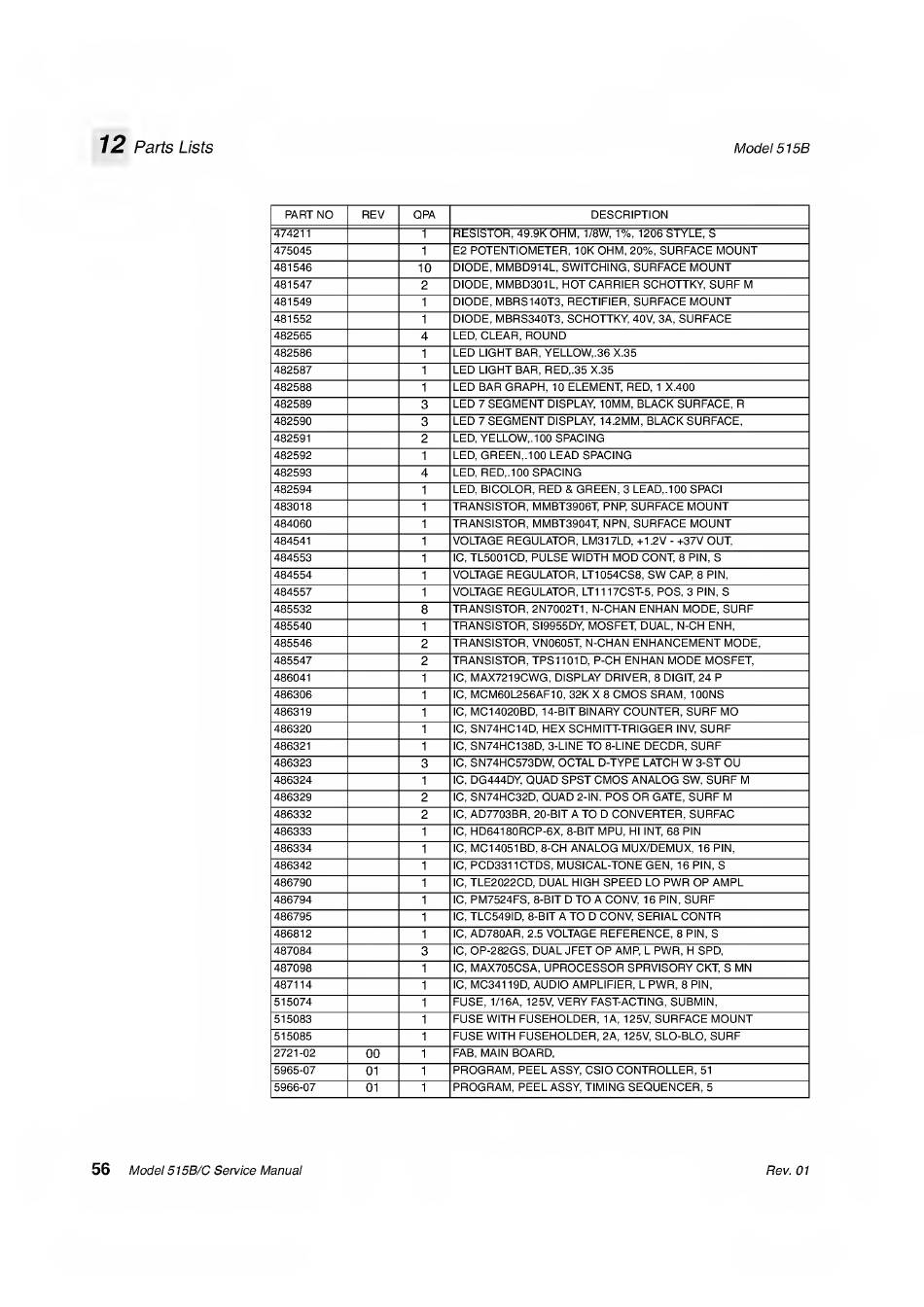

Parts Lists Model 515B
PART NO REV QPA DESCRIPTION
474211
1
RESISTOR,
49.9K
OHM,
1/8W, 1%, 1206
STYLE, S
475045
1
E2 POTENTIOMETER, 10K OHM, 20%, SURFACE MOUNT
481546
10
DIODE, MMBD914L, S\A/ITCHING, SURFACE MOUNT
481547
2
DIODE, MMBD301L, HOT CARRIER SCHOTTKY, SURF M
481549
1
DIODE, MBRS140T3, RECTIFIER, SURFACE MOUNT
481552
1
DIODE, MBRS340T3, SCHOTTKY, 40V, 3A, SURFACE
482565 4
LED, CLEAR, ROUND
482586
1
LED LIGHT BAR, YELLO\A/,.36 X.35
482587
1
LED LIGHT BAR, RED,.35 X.35
482588
1
LED BAR GRAPH, 10 ELEMENT, RED, 1 X.400
482589
3
LED 7 SEGMENT DISPLAY, 10MM, BLACK SURFACE, R
482590
3
LED 7 SEGMENT DISPLAY, 14.2MM, BLACK SURFACE,
482591 2 LED, YELLO\A/,.100 SPACING
482592
1 LED, GREEN,.100 LEAD SPACING
482593
4
LED, RED,.100 SPACING
482594
1
LED, BICOLOR, RED & GREEN, 3 LEAD,.100 SPACI
483018 1 TRANSISTOR, MMBT3906T, PNP, SURFACE MOUNT
484060 1
TRANSISTOR, MMBT3904T, NPN, SURFACE MOUNT
484541
1
VOLTAGE REGULATOR, LM317LD, +1.2V - +37V OUT,
484553 1
1C, TL5001CD, PULSE W/IDTH MOD CONT, 8 PIN, S
484554
1
VOLTAGE REGULATOR, LT1054CS8, SW CAP, 8 PIN,
484557
1 VOLTAGE REGULATOR, LT1117CST-5, POS, 3 PIN, S
485532
8
TRANSISTOR, 2N7002T1, N-CHAN ENHAN MODE, SURF
485540 1
TRANSISTOR, SI9955DY, MOSFET, DUAL, N-CH ENH,
485546
2
TRANSISTOR, VN0605T, N-CHAN ENHANCEMENT MODE,
485547 2 TRANSISTOR, TPS1101D, P-CH ENHAN MODE MOSFET,
486041
1
1C, MAX7219C\A/G, DISPLAY DRIVER, 8 DIGIT, 24 P
486306
1
1C, MCM60L256AF10, 32K X 8 CMOS SRAM, 100NS
486319
1
1C, MC14020BD, 14-BIT BINARY COUNTER, SURF MO
486320 1 1C, SN74HC14D, HEX SCHMITT-TRIGGER INV, SURF
486321
1
1C, SN74HC138D, 3-LINE TO 8-LINE DECDR, SURF
486323
3
1C, SN74HC573DW, OCTAL D-TYPE LATCH W/ 3-ST OU
486324
1
1C, DG444DY, OUAD SPST CMOS ANALOG SVJ, SURF M
486329
2
1C, SN74HC32D, OUAD 2-IN. POS OR GATE, SURF M
486332
2
1C, AD7703BR, 20-BIT A TO D CONVERTER, SURFAC
486333
1
1C, HD64180RCP-6X, 8-BIT MPU, HI INT, 68 PIN
486334
1
1C, MCI4051BD, 8-CH ANALOG MUX/DEMUX, 16 PIN,
486342
1
1C, PCD3311CTDS, MUSICAL-TONE GEN, 16 PIN, S
486790 1 1C, TLE2022CD, DUAL HIGH SPEED LO PW/R OP AMPL
486794
1
1C, PM7524FS, 8-BIT D TO A CONV, 16 PIN, SURF
486795
1
1C, TLC549ID, 8-BIT A TO D CONV, SERIAL CONTR
486812
1
1C, AD780AR, 2.5 VOLTAGE REFERENCE, 8 PIN, S
487084
3
1C, OP-282GS, DUAL JFET OP AMP, L PW/R, H SPD,
487098 1
1C, MAX705CSA, UPROCESSOR SPRVISORY CKT, S MN
487114
1
1C, MC34119D, AUDIO AMPLIFIER, L PWR, 8 PIN,
515074
1
FUSE, 1/16A, 125V, VERY FAST-ACTING, SUBMIN,
515083
1
FUSE\A/ITH FUSEHOLDER, 1A, 125V, SURFACE MOUNT
515085 1
FUSE \A/ITH FUSEHOLDER, 2A, 125V, SLO-BLO, SURF
2721-02
00 1
FAB, MAIN BOARD,
5965-07
01
1
PROGRAM, PEEL ASSY, CSIO CONTROLLER, 51
5966-07
01 1
PROGRAM, PEEL ASSY, TIMING SEOUENCER, 5
56
