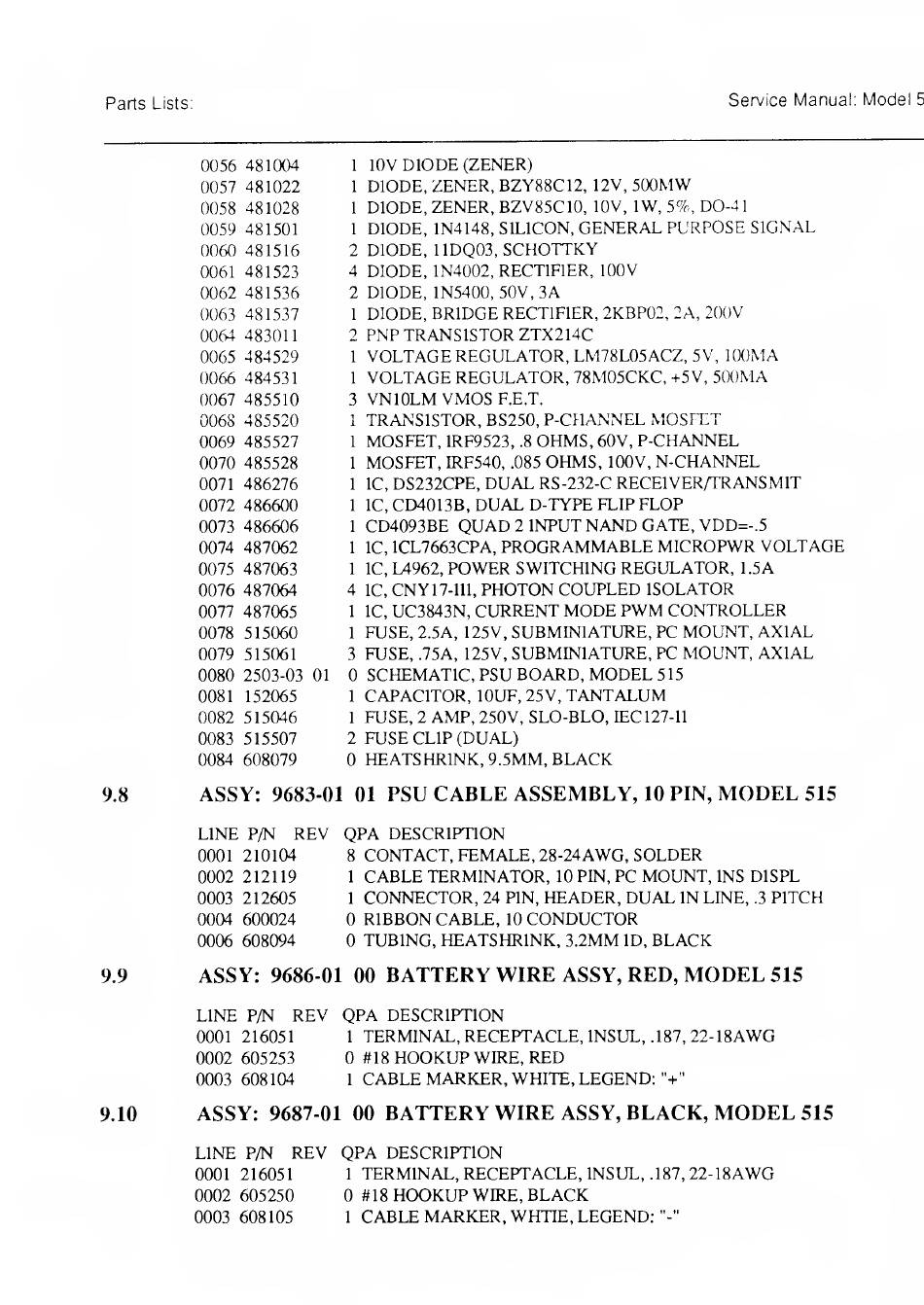

Novametrix Medical Systems 515 Service Manual page 64

Parts Lists:
Service Manual: Model 5
9.8
9.9
9.10
0056 481004 1
0057 481022 1
0058 481028
1
0059 481501
1
0060 481516 2
0061 481523
4
0062 481536 2
0063 481537
1
0064 483011
2
0065 484529
1
0066 484531 1
0067 485510 3
0068 485520
1
1
0069 485527 1
0070 485528 1
0071 486276 1
0072 486600
1
0073 486606 1
0074 487062 1
0075 487063
1
0076 487064
4
0077 487065
1
0078 515060 1
0079 515061
3
0080 2503-03 01 0
0081 152065
1
0082 515046 1
0083 515507
2
0084 608079
0
lOV DIODE (ZENER)
DIODE, ZENER, BZY88CI2, 12V, 500MW
DIODE, ZENER, BZV85C10, lOV, IW, 5%, DO-41
DIODE, 1N4148, SILICON, GENERAL PURPOSE SIGNAL
DIODE, 11DQ03, SCHOTTKY
DIODE, 1N4002, RECTIFIER, lOOV
DIODE, 1N5400, 50V, 3A
DIODE, BRIDGE RECTIFIER, 2KBP02, 2A, 2()0V
PNP TRANSISTOR ZTX214C
VOLTAGE REGULATOR, LM78L05ACZ, 5V, lOOMA
VOLTAGE REGULATOR, 78M05CKC, +5V, 500iVIA
VNIOLM VMOS F.E.T.
TRANSISTOR, BS250, P-CHANNEL MOSFET
MOSFET, IRF9523, .8 OHMS, 60V, P-CHANNEL
MOSFET, IRF540, .085 OHMS, lOOV, N-CHANNEL
IC, DS232CPE, DUAL RS-232-C RECEIVER/TRANSMIT
IC, CD4013B, DUAL D-TYPE FLIP FLOP
CD4093BE QUAD 2 INPUT NAND GATE, VDD=-.5
IC, ICL7663CPA, PROGRAMMABLE MICROPWR VOLTAGE
IC, L4962, POWER SWITCHING REGULATOR, 1.5A
IC, CNY17-III, PHOTON COUPLED ISOLATOR
IC, UC3843N, CURRENT MODE PWM CONTROLLER
FUSE, 2.5A, 125V, SUBMINIATURE, PC MOUNT, AXIAL
FUSE, .75A, 125V, SUBMINIATURE, PC MOUNT, AXIAL
SCHEMATIC, PSU BOARD, MODEL 515
CAPACITOR, lOUF, 25V, TANTALUM
FUSE, 2 AMP, 250V, SLO-BLO, lEC 127-11
FUSE CLIP (DUAL)
HEATSHRINK, 9.5MM, BLACK
ASSY; 9683-01 01 PSU CABLE ASSEMBLY, 10 PIN, MODEL 515
LINE P/N REV
0001 210104
0002 212119
0003 212605
0004 600024
0006 608094
QPA DESCRIPTION
8 CONTACT, FEMALE, 28-24AWG, SOLDER
1 CABLE TERMINATOR, 10 PIN, PC MOUNT, INS DISPL
1 CONNECTOR, 24 PIN, HEADER, DUAL IN LINE, .3 PITCH
0 RIBBON CABLE, 10 CONDUCTOR
0 TUBING, HEATSHRINK, 3.2MM ID, BLACK
ASSY: 9686-01 00 BATTERY WIRE ASSY, RED, MODEL 515
LINE P/N REV QPA DESCRIPTION
0001 216051 1 TERMINAL, RECEPTACLE, INSUL, .187, 22-18AWG
0002 605253 0 #18 HOOKUP WIRE, RED
0003 608104 1 CABLE MARKER, WHITE, LEGEND: "H-"
ASSY: 9687-01 00 BATTERY WIRE ASSY, BLACK, MODEL 515
LINE P/N REV QPA DESCRIPTION
0001 216051 1 TERMINAL,RECEPTACLE, INSUL, .187, 22-18AWG
0002 605250 0 #18 HOOKUP WIRE, BLACK
0003 608105 1 CABLE MARKER, WHTIE, LEGEND;
