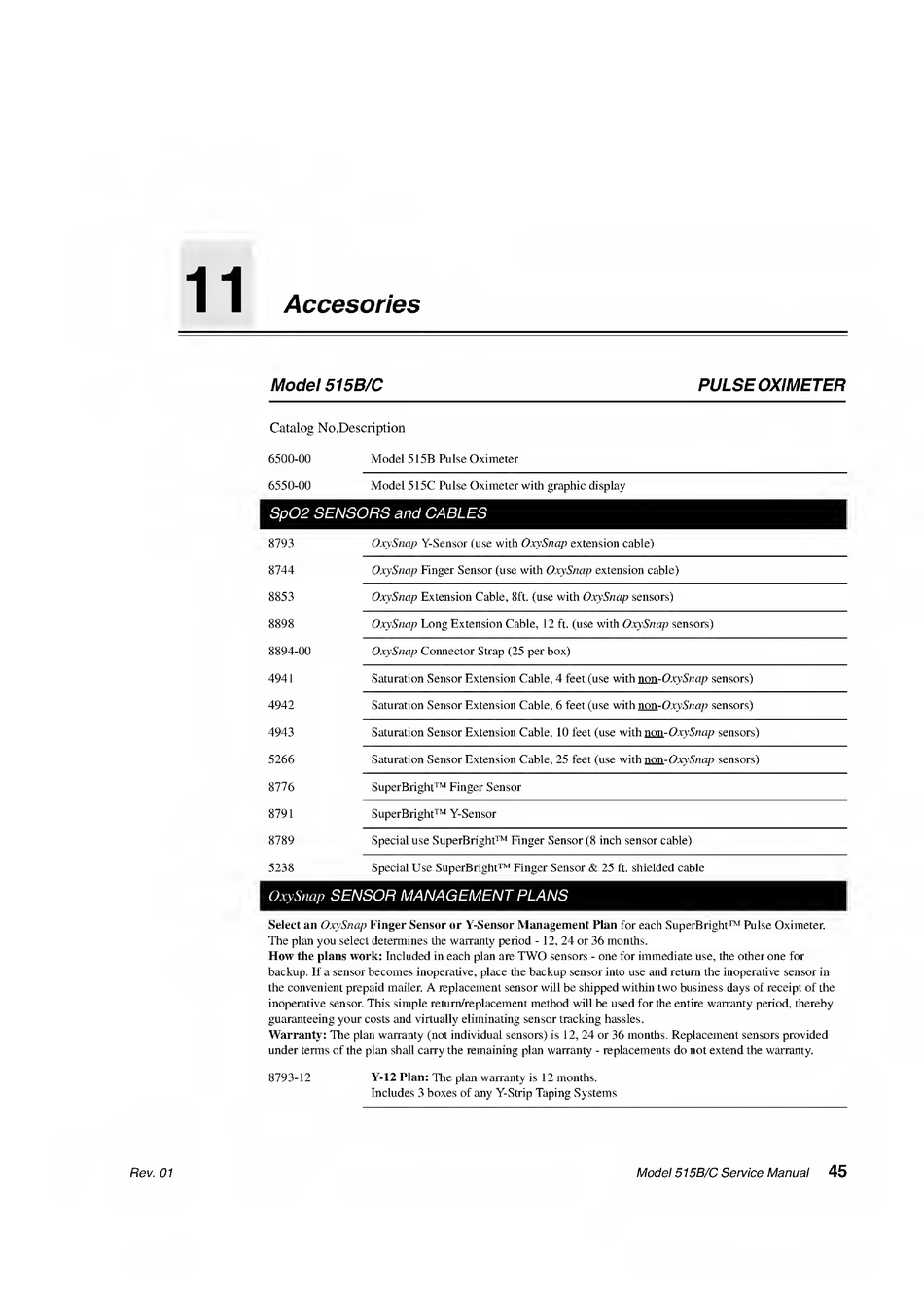

Model 515B/C PULSE OXIMETER
Catalog No.Description
6500-00 Model 515B Pulse Oximeter
6550-00
Model 515C Pulse Oximeter with graphic display
Sp02 SENSORS and CABLES
8793 OxySnap Y-Sensor (use with OxySnap extension cable)
8744 OxySnap Finger Sensor (use with OxySnap extension cable)
8853
OxySnap Extension Cable, 8ft. (use with OxySnap sensors)
8898
OxySnap Long Extension Cable, 12 ft. (use with OxySnap sensors)
8894-00 OxySnap Connector Strap (25 per box)
4941 Saturation Sensor Extension Cable, 4 feet (use with nnn-OxvSnap sensors)
4942 Saturation Sensor Extension Cable, 6 feet (use with nun-OxySnap sensors)
4943
Saturation Sensor Extension Cable, 10 feet (use with noa-OxySnap sensors)
5266 Saturation Sensor Extension Cable, 25 feet (use with noa-OxySnap sensors)
8776 SuperBright™ Finger Sensor
8791
SuperBright™ Y-Sensor
8789 Special use SuperBright™ Finger Sensor (8 inch sensor cable)
5238 Special Use SuperBright™ Finger Sensor & 25 ft. shielded cable
OxySnap
SENSOR MANAGEMENT PLANS
Select an OxySnap Finger Sensor or Y-Sensor Management Plan for each SuperBright™ Pulse Oximeter.
The plan you select determines the warranty period - 12, 24 or 36 months.
How the plans work: Included in each plan are TWO sensors - one for immediate use, the other one for
backup. If a sensor becomes inoperative, place the backup sensor into use and return the inoperative sensor in
the convenient prepaid mailer. A replacement sensor will be shipped within two business days of receipt of the
inoperative sensor. This simple return/replacement method will be used for the entire warranty period, thereby
guaranteeing your costs and virtually eliminating sensor tracking hassles.
Warranty: The plan warranty (not individual sensors) is 12, 24 or 36 months. Replacement sensors provided
under terms of the plan shall carry the remaining plan warranty - replacements do not extend the warranty.
8793-12 Y-12 Plan: The plan warranty is 12 months.
Includes 3 boxes of any Y-Strip Taping Systems
