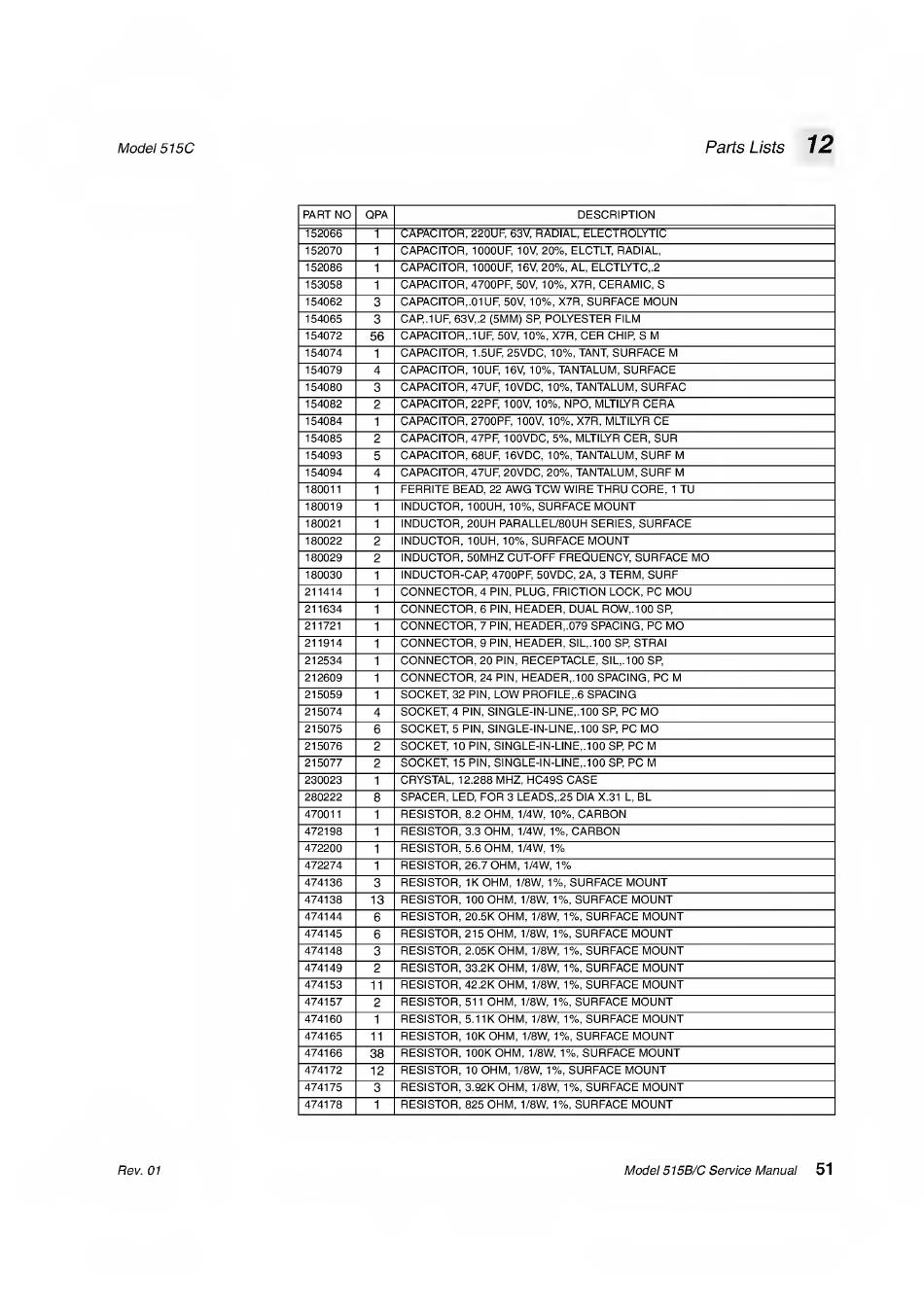

Novametrix Medical Systems 515 Service Manual page 81

Model 515C
Parts Lists
12
PART NO QPA DESCRIPTION
152066
1
CAPACITOR, 220UF,
63V,
RADIAL, ELECTROLYTIC
152070
1
CAPACITOR, 1000UF, 10V, 20%, ELCTLT, RADIAL,
152086 1 CAPACITOR, 1000UF, 16V, 20%, AL, ELCTLYTC,.2
153058 1 CAPACITOR, 4700PF, 50V, 10%, X7R, CERAMIC, S
154062 3 CAPACITOR,.01UF, 50V, 10%, X7R, SURFACE MOUN
154065 3 CAR.IUF, 63V,.2 (5MM) SP, POLYESTER FILM
154072
56
CAPACITOR,.1UF, 50V, 10%, X7R, CER CHIP, S M
154074 1 CAPACITOR, 1.5UF, 25VDC, 10%, TANT, SURFACE M
154079 4 CAPACITOR, 10UF, 16V, 10%, TANTALUM, SURFACE
154080 3 CAPACITOR, 47UF, 10VDC, 10%, TANTALUM, SURFAC
154082 2 CAPACITOR, 22PF, 100V, 10%, NPO, MLTILYR CERA
154084 1 CAPACITOR, 2700PF, 100V, 10%, X7R, MLTILYR CE
154085
2
CAPACITOR, 47PF, 100VDC, 5%, MLTILYR CER, SUR
154093
5
CAPACITOR, 68UF, 16VDC, 10%, TANTALUM, SURF M
154094
4
CAPACITOR, 47UF, 20VDC, 20%, TANTALUM, SURF M
180011 1 FERRITE BEAD, 22 AW/G TCW/ W/IRE THRU CORE, 1 TU
180019
1
INDUCTOR, 100UH, 10%, SURFACE MOUNT
180021 1 INDUCTOR, 20UH PARALLEL/80UH SERIES, SURFACE
180022 2 INDUCTOR, 10UH, 10%, SURFACE MOUNT
180029
2 INDUCTOR, 50MHZ CUT-OFF FREOUENCY, SURFACE MO
180030 1 INDUCTOR-CAR 4700PF, 50VDC, 2A, 3 TERM, SURF
211414 1
CONNECTOR, 4 PIN, PLUG, FRICTION LOCK, PC MOU
211634 1 CONNECTOR, 6 PIN, HEADER, DUAL RO\A/,.100 SP,
211721 1
CONNECTOR, 7 PIN, HEADER,.079 SPACING, PC MO
211914 1 CONNECTOR, 9 PIN, HEADER, SIL,.100 SP, STRAI
212534
1
CONNECTOR, 20 PIN, RECEPTACLE, SIL,.100 SP,
212609
1
CONNECTOR, 24 PIN, HEADER,.100 SPACING, PC M
215059
1
SOCKET, 32 PIN, LOW/ PROFILE,.6 SPACING
215074 4 SOCKET, 4 PIN, SINGLE-IN-LINE,.100 SP, PC MO
215075 6 SOCKET, 5 PIN, SINGLE-IN-LINE,.100 SP, PC MO
215076
2
SOCKET, 10 PIN, SINGLE-IN-LINE,.100 SP, PC M
215077 2 SOCKET, 15 PIN, SINGLE-IN-LINE,.100 SP, PC M
230023
1 CRYSTAL, 12.288 MHZ, HC49S CASE
280222 8 SPACER, LED, FOR 3 LEADS,.25 DIA X.31 L, BL
470011
1 RESISTOR, 8.2 OHM, 1/4W/, 10%, CARBON
472198 1 RESISTOR, 3.3 OHM, 1/4W/, 1%, CARBON
472200
1
RESISTOR, 5.6 OHM, 1/4W/, 1%
472274 1 RESISTOR, 26.7 OHM, 1/4W/, 1%
474136 3 RESISTOR, IK OHM, 1/8W/, 1%, SURFACE MOUNT
474138
13 RESISTOR, 100 OHM, 1/8W/, 1%, SURFACE MOUNT
474144
6
RESISTOR, 20.5K OHM, 1/8W/, 1%, SURFACE MOUNT
474145 6 RESISTOR, 215 OHM, 1/8W/, 1%, SURFACE MOUNT
474148 3 RESISTOR, 2.05K OHM, 1/8W/, 1%, SURFACE MOUNT
474149
2 RESISTOR, 33.2K OHM, 1/8W/, 1%, SURFACE MOUNT
474153 11 RESISTOR, 42.2K OHM, 1/8W/, 1%, SURFACE MOUNT
474157 2 RESISTOR, 511 OHM, 1/8W/, 1%, SURFACE MOUNT
474160
1
RESISTOR, 5.11K OHM, 1/8W/, 1%, SURFACE MOUNT
474165
11 RESISTOR, 10K OHM, 1/8W/, 1%, SURFACE MOUNT
474166 38 RESISTOR, 100K OHM, 1/8W/, 1%, SURFACE MOUNT
474172 12 RESISTOR, 10 OHM, 1/8W/, 1%, SURFACE MOUNT
474175 3 RESISTOR, 3.92K OHM, 1/8W/, 1%, SURFACE MOUNT
474178
1
RESISTOR, 825 OHM, 1/8W/, 1%, SURFACE MOUNT
