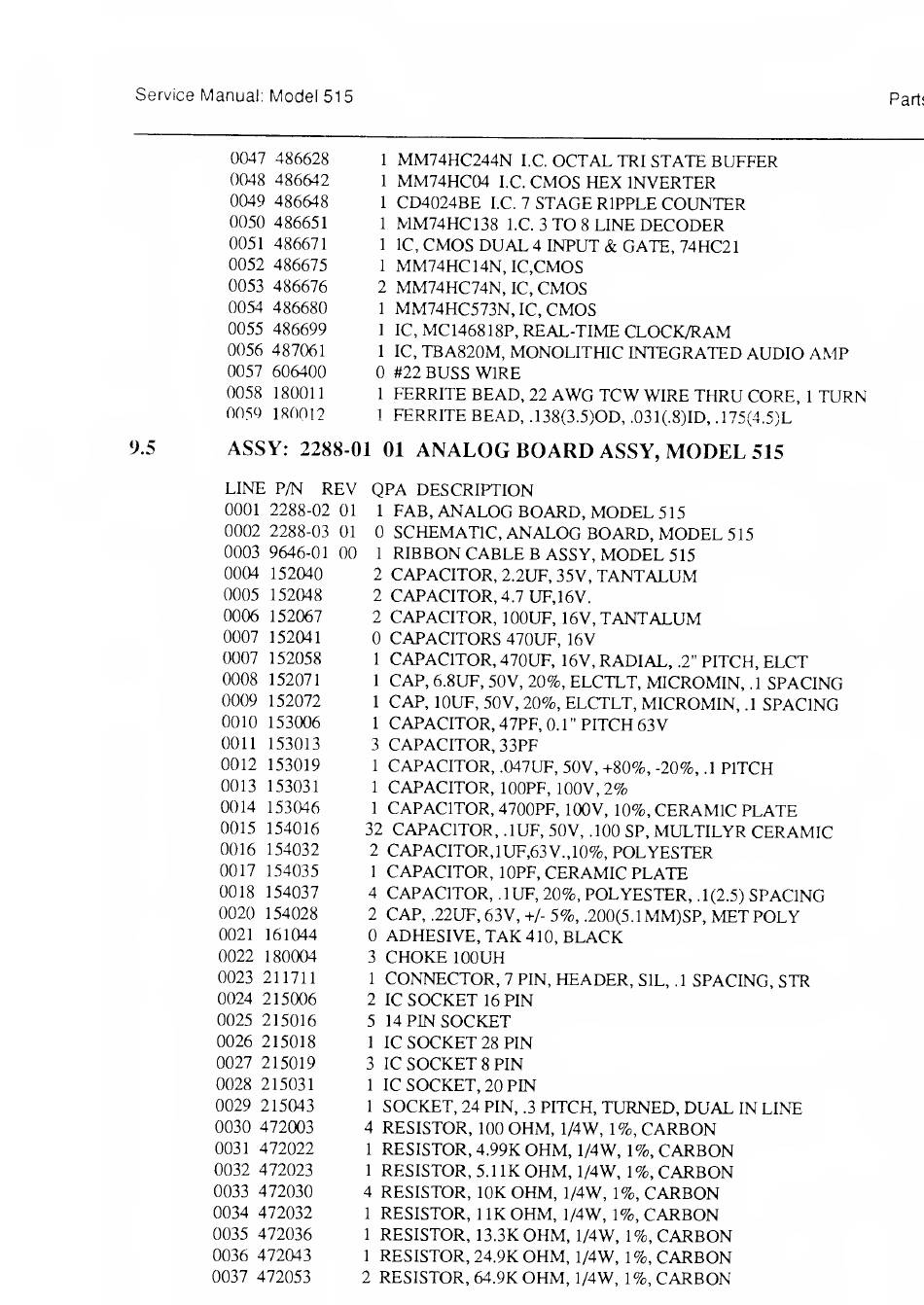

Service Manual: Model 515
0047 486628 1 MM74HC244N I.C. OCTAL TRI STATE BUFFER
0048 486642 1 MM74HC04 I.C. CMOS HEX INVERTER
0049 486648 I CD4024BE I.C. 7 STAGE RIPPLE COUNTER
0050 486651 1 MM74HC138 I.C. 3 TO 8 LINE DECODER
0051 486671 I IC, CMOS DUAL 4 INPUT & GATE, 74HC2I
0052 486675 I MM74HCI4N, IC.CMOS
0053 486676 2 MM74HC74N, IC, CMOS
0054 486680 1 MM74HC573N, IC, CMOS
0055 486699 I IC, MC1468ISP, REAL-TIME CLOCK/RAM
0056 487061 1 IC, TBA820M, MONOLITHIC INTEGRATED AUDIO AMP
0057 606400 0 #22 BUSS WIRE
0058 180011 1 FERRITE BEAD, 22 AWG TCW WIRE THRU CORE, 1 TURN
0059 180012 1 FERRITE BEAD, .138(3.5)OD,.031(.8)ID,.175(4.5)L
9.5 ASSY: 2288-01 01 ANALOG BOARD ASSY, MODEL 515
LINE P/N REV QPA DESCRIPTION
0001 2288-02 01 1 FAB, ANALOG BOARD, MODEL 515
0002 2288-03 01 0 SCHEMATIC, ANALOG BOARD, MODEL 515
0003 9646-01 00 1 RIBBON CABLE B ASSY, MODEL 515
0004 152040 2 CAPACITOR, 2.2UF, 35V, TANTALUM
0005 152048 2 CAPACITOR, 4.7 UF, 16V.
0006 152067 2 CAPACITOR, lOOUF, 16V, TANTALUM
0007 152041 0 CAPACITORS 470UF, 16V
0007 152058 1 CAPACITOR, 470UF, 16V, RADIAL, .2" PITCH, ELCT
0008 152071 1 CAP, 6.8UF, 50V, 20%, ELCTLT, MICROMIN, .1 SPACING
0009 152072 1 CAP, lOUF, 50V, 20%, ELCTLT, MICROMIN, .1 SPACING
0010 153006 1 CAPACITOR, 47PF, 0.1" PITCH 63V
0011 153013 3 CAPACITOR, 33PF
0012 153019 1 CAPACITOR, .047UF, 50V, h-80%,-20%, .1 PITCH
0013 153031 1 CAPACITOR, lOOPF, lOOV, 2%
0014 153046 1 CAPACITOR, 4700PF, lOOV, 10%, CERAMIC PLATE
0015 154016 32 CAPACITOR, .lUF, 50V, .100 SP,MULTILYR CERAMIC
0016 154032 2 CAPACIT0R,1UF,63V.,10%, POLYESTER
0017 154035 1 CAPACITOR, lOPF, CERAMIC PLATE
0018 154037 4 CAPACITOR, .lUF, 20%, POLYESTER, .1(2.5) SPACING
0020 154028 2 CAP, .22UF, 63V,-i-/-5%, .200(5.1MM)SP, MET POLY
0021 161044 0 ADHESIVE, TAK 410, BLACK
0022 180004 3 CHOKE lOOUH
0023 211711 1 CONNECTOR, 7 PIN, HEADER, SIL, .1 SPACING, STR
0024 215006 2 IC SOCKET 16 PIN
0025 215016 5 14 PIN SOCKET
0026 215018 1 IC SOCKET 28 PIN
0027 215019 3 IC SOCKET 8 PIN
0028 215031 1 IC SOCKET, 20 PIN
0029 215043 1 SOCKET, 24 PIN, .3 PITCH, TURNED, DUAL IN LINE
0030 472003 4 RESISTOR, 100 OHM, 1/4W, 1%, CARBON
0031 472022 1 RESISTOR, 4.99K OHM, 1/4W, 1%, CARBON
0032 472023 1 RESISTOR, 5.1 IK OHM, 1/4W, 1%, CARBON
0033 472030 4 RESISTOR, lOK OHM, 1/4W, 1%, CARBON
0034 472032 1 RESISTOR, 1 IK OHM, 1/4W, 1%, CARBON
0035 472036 1 RESISTOR, 13.3K OHM, 1/4W, 1%, CARBON
0036 472043 1 RESISTOR, 24.9K OHM, 1/4W, 1%, CARBON
0037 472053 2 RESISTOR, 64.9K OHM, 1/4W, 1%, CARBON
