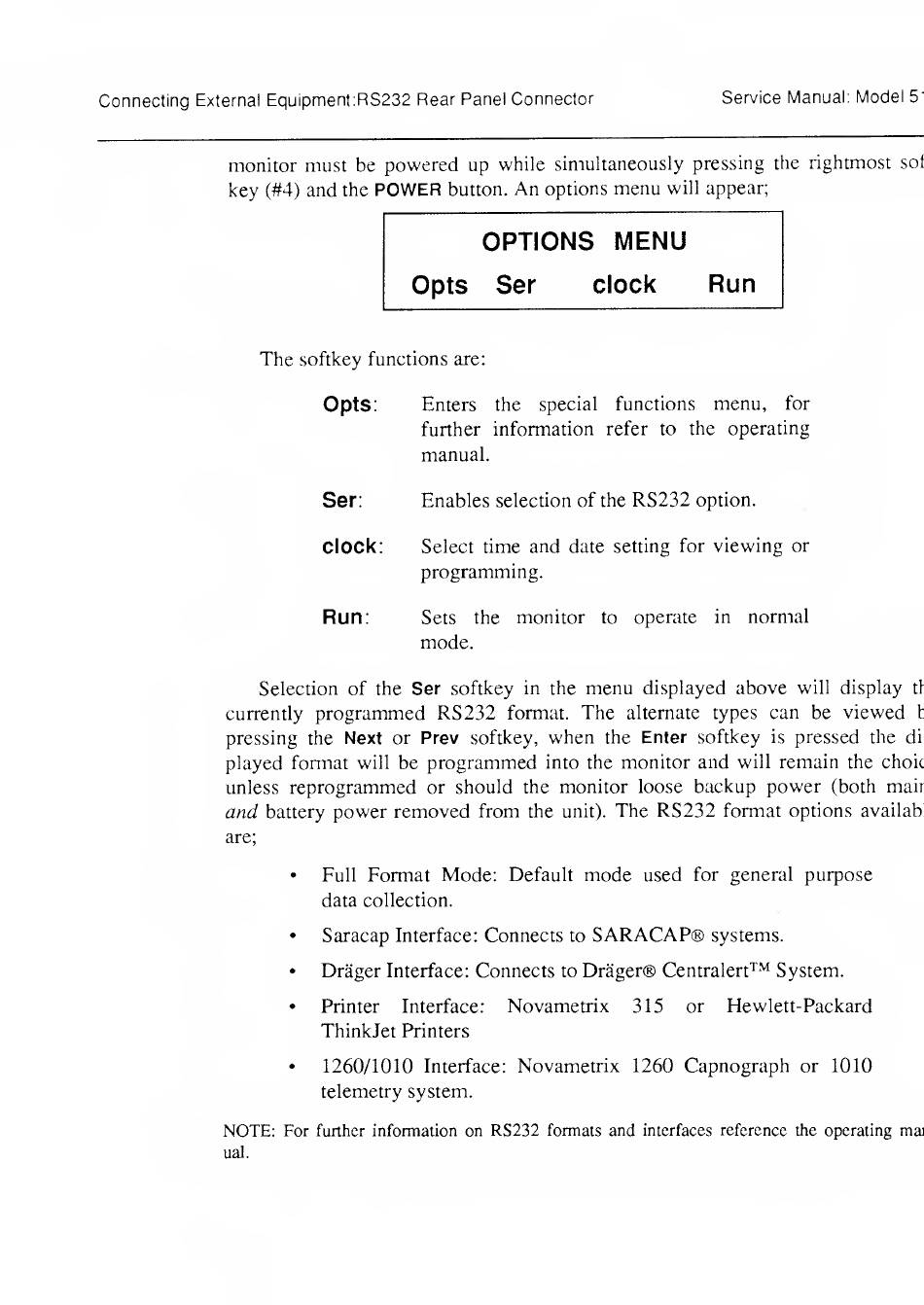

Connecting External Equipment:RS232 Rear Panel Connector
Service Manual: Model 51
monitor must be powered up while simultaneously pressing the rightmost sof
key (#4) and the
POWER
button. An options menu will appear;
OPTIONS MENU
Opts Ser clock Run
The softkey functions are:
Opts;
Enters the special functions menu, for
further information refer to the operating
manual.
Ser:
Enables selection of the RS232 option.
clock;
Select time and date setting for viewing or
programming.
Run:
Sets the monitor to operate in normal
mode.
Selection of the
Ser
softkey in the menu displayed above will display th
currently programmed RS232 format. The alternate types can be viewed b
pressing the
Next
or
Prev
softkey, when the
Enter
softkey is pressed the di:
played fomiat will be programmed into the monitor and will remain the choic
unless reprogrammed or should the monitor loose backup power (both mair
and battery power removed from the unit). The RS232 format options availabl
are;
• Full Format Mode: Default mode used for general purpose
data collection.
• Saracap Interface: Connects to SARACAP® systems.
• Drager Interface: Connects to Drager® Centralert'^''^ System.
• Printer Interface: Novametrix 315 or Hewlett-Packard
ThinkJet Printers
• 1260/1010 Interface: Novametrix 1260 Capnograph or 1010
telemetry system.
NOTE: For further information on RS232 formats and interfaces reference the operating mai
ual.
