Service Manual: Model 515
Connecting External Equipment:Model 315 Printer Int'

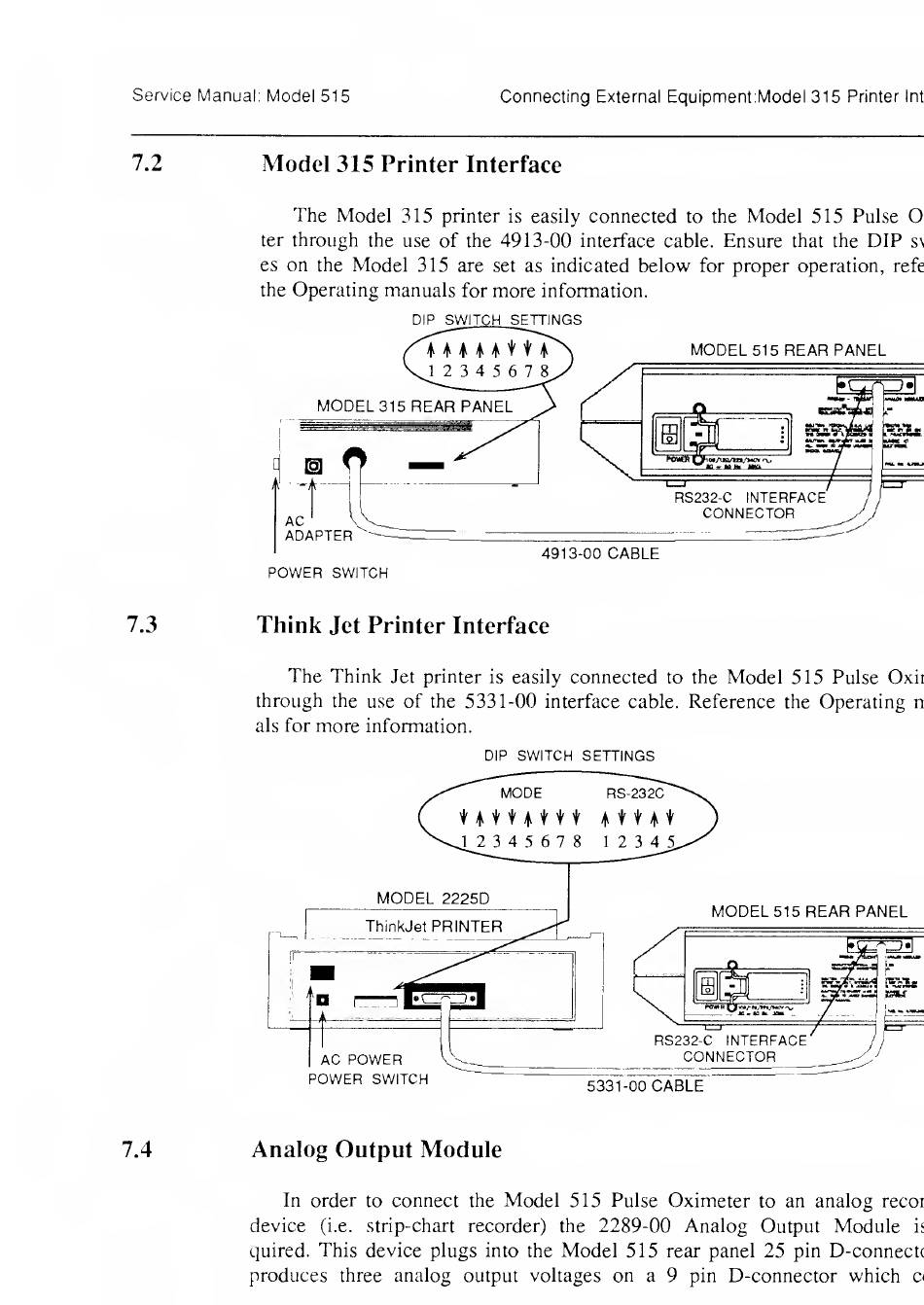

7.2 Model 315 Printer Interface
The Model 315 printer is easily connected to the Model 515 Pulse O:
ter through the use of the 4913-00 interface cable. Ensure that the DIP sv
es on the Model 315 are set as indicated below for proper operation, refe
the Operating manuals for more information.
DIP SWITCH SETTINGS
POWER SWITCH
7.3 Think Jet Printer Interface
The Think Jet printer is easily connected to the Model 515 Pulse Oxir
through the use of the 5331-00 interface cable. Reference the Operating n
als for more information.
DIP SWITCH SETTINGS
7.4 Analog Output Module
In order to connect the Model 515 Pulse Oximeter to an analog recor
device (i.e. strip-chart recorder) the 2289-00 Analog Output Module is
quired. This device plugs into the Model 515 rear panel 25 pin D-connectc
produces three analog output voltages on a 9 pin D-connector which
C(
