�� | S�� ��� � S�� ��� | Product description
3.
Product description
�.�
Intended use
Warning of possible damage or injury!
Safe operation of the SDL 41x / SDL 42x
cannot be guaranteed for applications not
conforming to the intended purpose.
The SDL 41x / SDL 42x is only ever to be
employed for the intended purpose.
The user is not authorized to convert or
modify the SDL 41x / SDL 42x.
The SDL 41x / SDL 42x is a special accessory for series
BSA 43xx brake dynamometers. The SDL 41x / SDL 42x
is only to be used for checking toe-in or toe-out on
double-track vehicles.
The following also applies with regard to the intended
use:
R
Read and observe all the documents accompanying
the SDL 41x / SDL 42x.
R
Ensure compliance with the technical data for the
SDL 41x / SDL 42x and all its components.
R
Always heed the safety instructions when performing
work.
R
Only operate the SDL 41x / SDL 42x in the proper
manner.
R
Ensure correct working procedures when performing
all brake tests.
R
Perform maintenance work in due time.
Any application beyond the scope of these
specifications does not constitute the intended
purpose and could result in serious injuries or damage.
The manufacturer cannot accept any liability for injury
or damage arising from such usage.
�.�
�ist of versions
Version
SDL 410
SDL 415
SDL 425
Tab. 1:
Versions of SDL 41x / SDL 42x
|
1 691 636 210
2010-09-17
x
x
-
-
x
-
x
-
x
-
x
x
�.�
Scope of delivery
The scope of delivery of the SDL 41x / SDL 42x
includes the following components:
R
Side slip tester SDL 410 incl. mounting set
R
Depending on version:
$
Precision potentiometer inc. cables
$
Resistance strain gauge sensor incl. cables
$
Compensation plate incl. mounting set
�.�
Accessories
The following components are available as accessories
for the SDL 41x / SDL 42x:
Component
Edge protection frame side slip
tester
Edge protection frame side slip
tester with compensation plate
�.5
S�� ��� � S�� ���

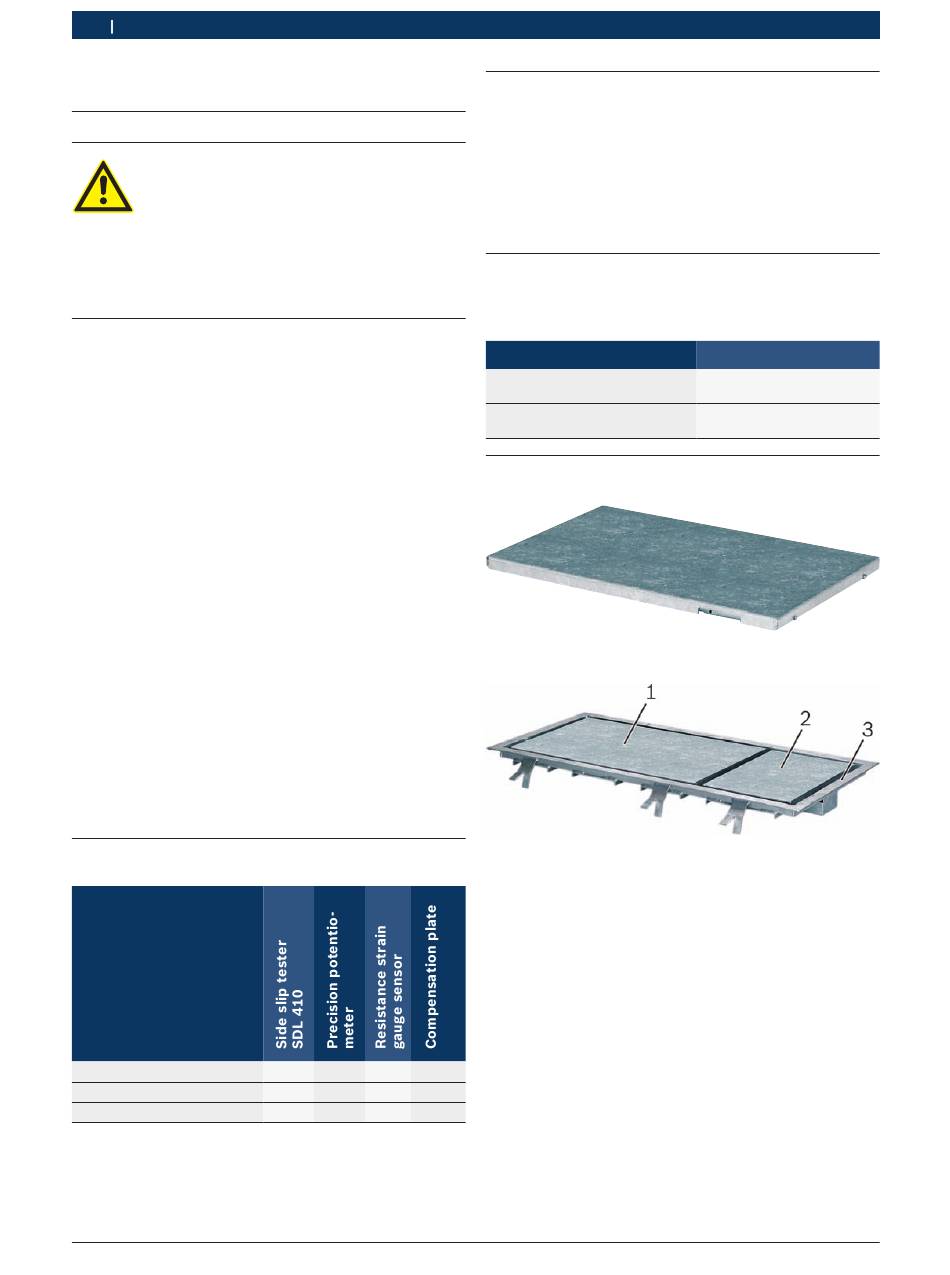

Fig. 1:
Side slip tester SDL 410
Fig. 2:
Side slip tester SDL 410 with compensation plate and
edge protection frame
1 Side slip tester SDL 410
2 Compensation plate
3 Edge protection frame
The SDL 41x / SDL 42x is a laterally slidable steel plate.
A precision potentiometer or resistance strain gauge
sensor measures the lateral deflection of the side slip
tester.
The purpose of the compensation plate is to compen-
sate unwanted mechanical stress in the chassis before
the side slip measurement starts. As a result the side
slip measurement is more repeatable.
Order number
1 691 632 000
1 691 632 001
Robert Bosch GmbH
