2.2.12

Masimo Interface Board Theory of Operation

Introduction
The Accutorr Plus Masimo interface board (P/N: 0670-00-0716) provides an isolated
Ò
data and power interface between the Accutorr Plus and the Masimo
MP-3 Pulse
Oximetry Module.
The patient isolation requirement for the Masimo section is 1500VAC, less than or equal
to 1mA leakage current, from input connectors J1 and J4-all terminals to J2-all terminals.
The isolated DC/DC converter, T1, supplies the regulated+5DIG as required by the
Ò
Masimo
MS-3 Pulse Oximetry Module. The digital 5V is then utilized to generate the
analog "15V used by the MS-3. The optocouplers (U1 and U2) isolate the signals used
Ò
for bidirectional serial communication with the Masimo
MS-3 Pulse Oximetry Module.
Control signal, SpO
_COMM at J4 will allow the Accutorr Plus software to interrupt
2
the serial transmission for future options. Future interface to the Display Controller
board (at J3) will provide isolated "9volts to the Front End
Theory of Operation
An overall block diagram of the interface board is shown in Figure 1 below. All data and
control lines interfaced to the SpO
Module are opto isolated. Power to the SpO
2
2
Module is isolated by a DC/DC converter with the input coming directly from the
CPU/LED Module.

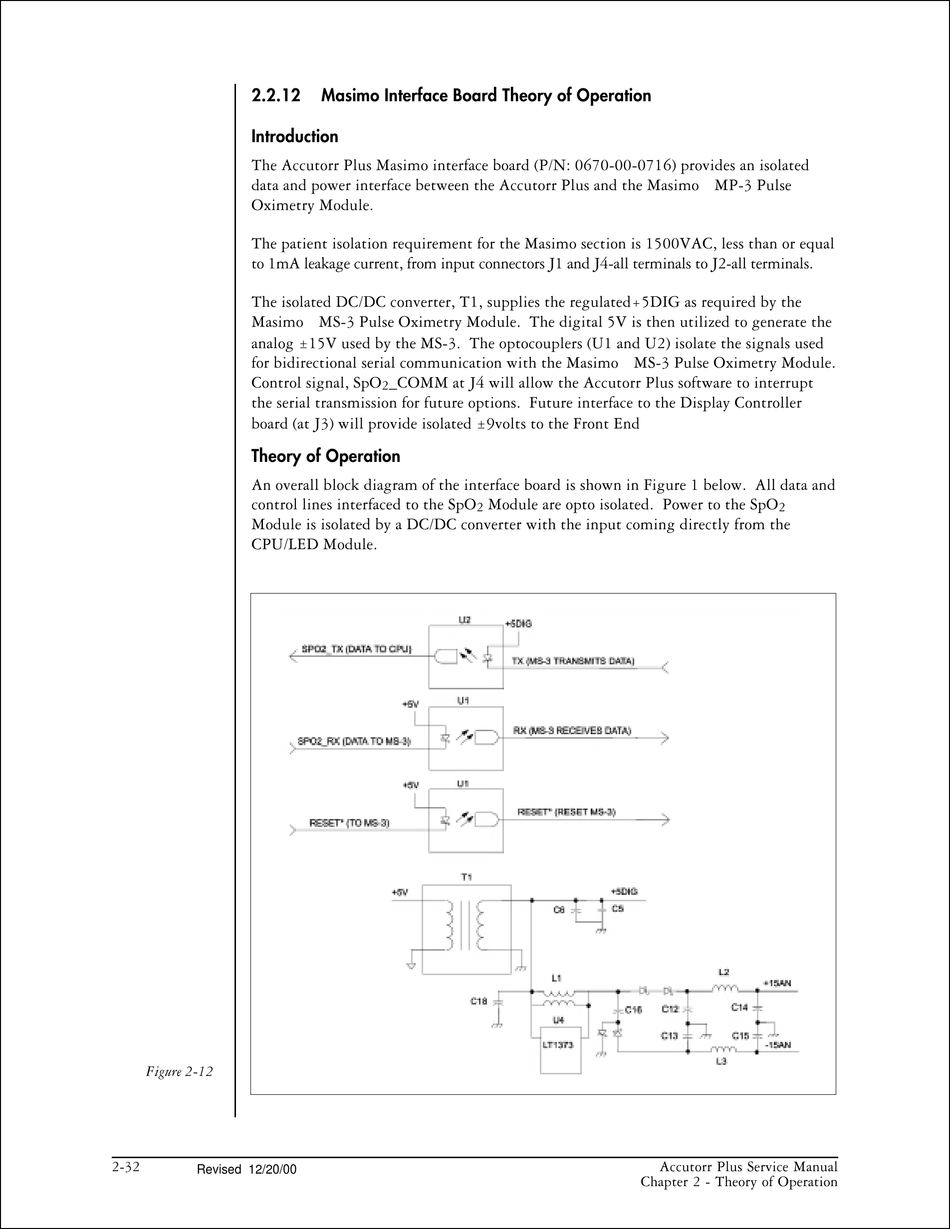

Figure 2-12
2-32
Accutorr Plus Service Manual
Revised 12/20/00
