1.2.2 Rear Panel

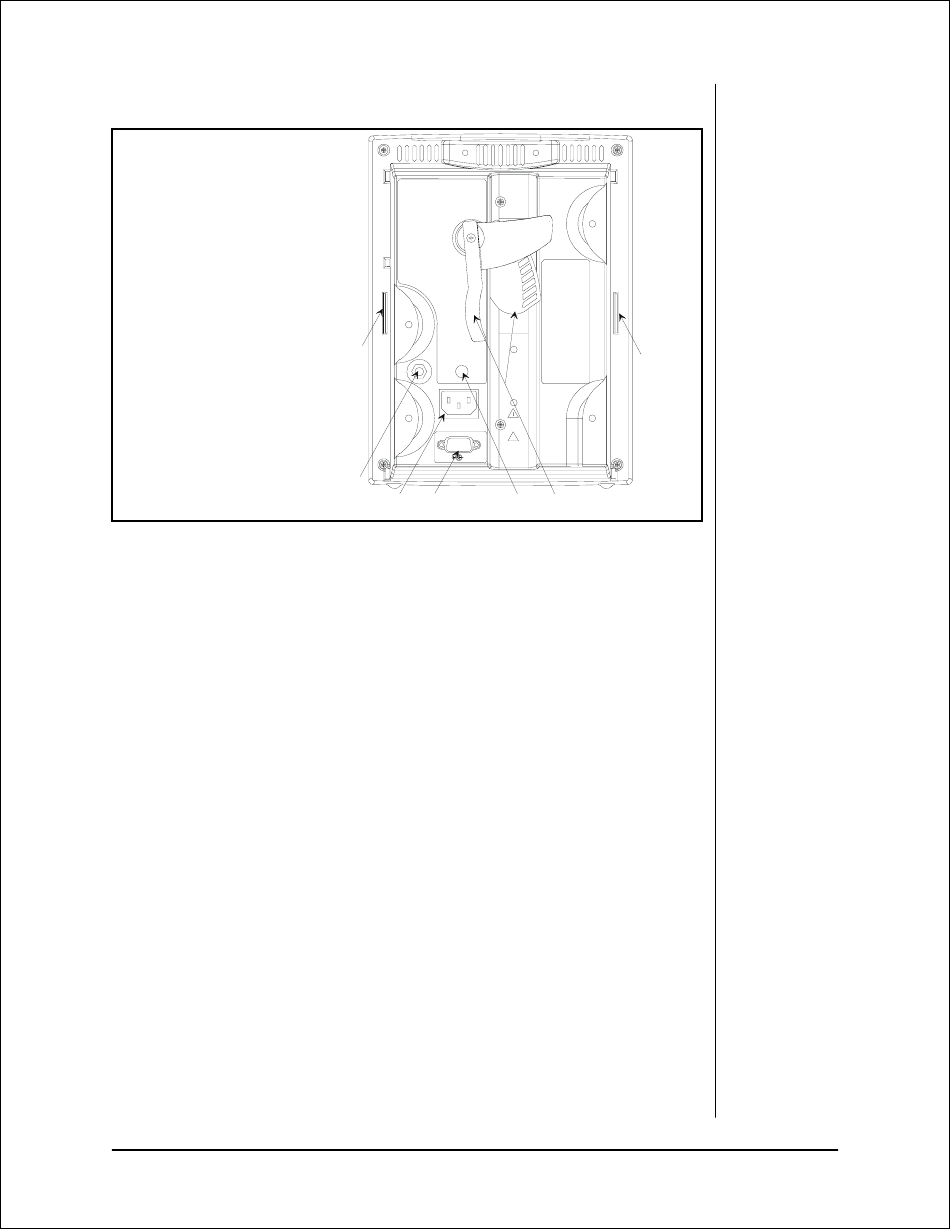

Figure 1-5 Rear Panel - All Units
42. Thermometer Module Connector
Used to attached one of the optional Datascope thermometer modules (PTM or
AccuTemp IR).
43. Equipotential Lug
Provides equipotential bonding between hospital equipment.
44. Power Connector
AC
Allows for . power cord connection.
A.C
45. Communications Connector
Provides compatible communications to external devices and hospital's information
system.
46. Datascope Connector
Used by Datascope Technical Service Personnel.
47. Pole Mounting Handle and Cam
Provides the ability to quickly mount the Accutorr Plus to a rolling pole.
48. Recorder Module Connector
Used to connect the optional Datascope recorder module.
