Datascope Accutorr Plus Service Manual page 68

Accutorr Plus with Datascope SpO2 or without SpO2
Notes:
1. Detailed functional descriptions
are found in the Theory of Operations section
2. Functional blocks with dashed outlines are optional
features. (---)
3. Shaded blocks are considered
"black box" devices
Captive Cable,
Soldered to
CPU Circuit board.
J5
P1
Recorder
circuit board
0670-00-0583

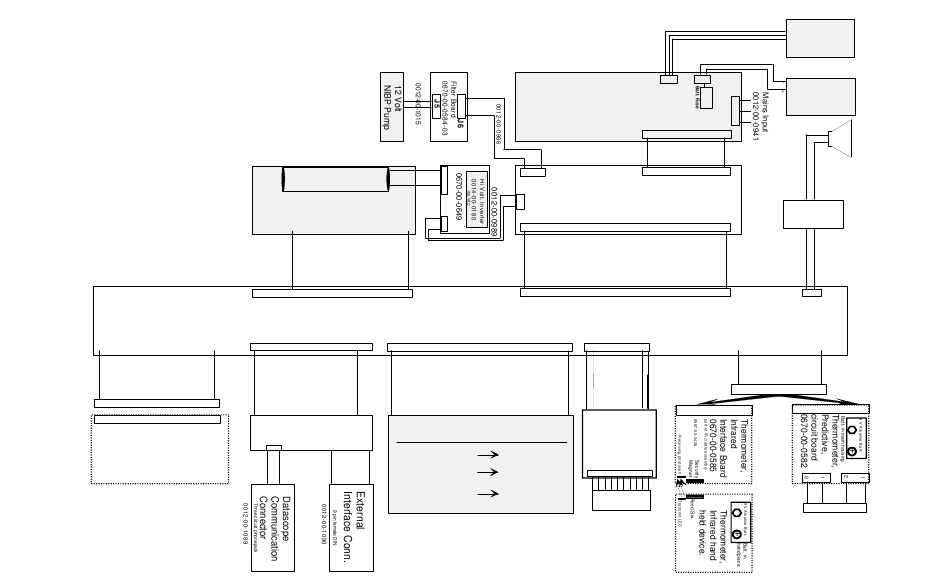

Wiring Diagram
Electro luminescent
CAPTIVE CABLE
J1
panel lite
LCD Display
Module
0160-00-0034
J2
CAPTIVE CABLE
0012-00-0988
J8
CPU / LED Board
0670-00-0650-03 for units with SpO2
0670-00-0650-04 for units Without SpO2
J3
Captive Cable soldered to the
Communication Circuit board
External Communication
Circuit board
KEYPADS:
0670-00-0661-01
J3
Units with Trend display, and
No SpO2: 0331-00-0102
Captive Cable,
Soldered to
Units with Trend display, and
Communication
Circuit board. SpO2: 0331-00-0103
Units without Trend display,
and No SpO2: 0331-00-0104
DC Power Supply
0014-00-0184 (SLA)
OR
0014-00-0225 (Li-Ion)
NIBP Board
J2
0670-00-0584-02
J4
0012-00-0944
J1
J2
J7
0012-00-1238
Male / Female
Header Connector
Datascope SpO2
Circuit Board
GRAPHIC OVERLAYS:
0670-00-0593-03
0330-00-0026-XX
0330-00-0027-XX J 3
0330-00-0025-XX
Datascope SpO2 sensor
receptacle Front Panel
0012-00-1223
Li-Ion Batt. Cable
0997-00-0944 10.8 V Battery
Lithium - Ion
SLA Batt. Cable
0146-00-0069
0406-00-0754
OR
J4 OR J4
12 V Battery
Lead Acid
J2
0146-00-0043
J3
0012-00-0943
J3
Tone Processor Board
0670-00-1134
J6
Captive Cable,
Soldered to
CPU Circuit board.
J4
P1
P1
J3
_
P1
Temp. Probe receptacle
0012-00-0953 WITH 9 V battery or
0012-00-1335 WITHOUT 9V battery
Accutorr Plus with Datascope
SpO or without SpO Wiring
2
Block Diagram
Revised 12/20/00
Speaker with Cable
0012-00-0257-05
Tone Processor Board
shown but not used in
all versions.
_
Battery shown but not
used in all versions
J2
2
2-6
