1.3.2 PATIENT SETUP AND ROOM/BED ASSIGNMENT

1.3.2.1
The Patient Size is selected using the PATIENT SETUP key (37).
1. Press the PATIENT SETUP key (37) to
select the Patient size. Three choices are
available: Adult, Pediatric and Neonate.
Each time the key is pressed the patient
size changes. The indicator under the
graphic of the patient size illuminates to
indicate which size is selected. The
factory default setting for the Patient
size is Adult. See section 1.3.15, "User
Configuration" to set a custom default
setting. NOTE: Do not press and hold
the PATIENT SETUP key to change the
patient size. Pressing and holding this
key, enter the initial cuff inflation
pressure change mode.
1.3.2.2
The initial cuff inflation pressure depends on the Patient Size setting. The initial cuff
inflation pressures are listed in the table below. The initial cuff inflation pressures can
be modified from the default (custom or factory) settings. When the Accutorr Plus is
powered down, these modifications are deleted.
1. To change the initial cuff inflation pressure, press and hold the PATIENT SETUP key
(37) (2 beep tones, approx. 3 seconds). The current initial cuff pressure for the
selected patient size displays in the MAP display.
2. Use the Patient Info. Up and Down Arrow keys (27 & 28) to change the pressure.
3. Once the desired pressure is displayed, press the PATIENT SETUP key (37) to enter
this value. NOTE: Waiting 15 seconds will also enter this value.
PATIENT SIZE
SETTING
Adult
Pediatric
Neonate
NOTE: The default patient size and initial cuff inflation pressure can be customized. See
section 1.3.15, "User Configuration" for details on how to set custom defaults.
1-18
Revised 06/25/99

Selecting the Patient Size

Cuff Inflation Pressure

INITIAL FACTORY LOWEST
DEFAULT CUFF SELECTABLE
INFLATION VALUES PRESSURE
180 mmHg 100 mmHg
140 mmHg 60 mmHg
100 mmHg 40 mmHg
Pediatric Neonate
Adult
PATIENT
SETUP

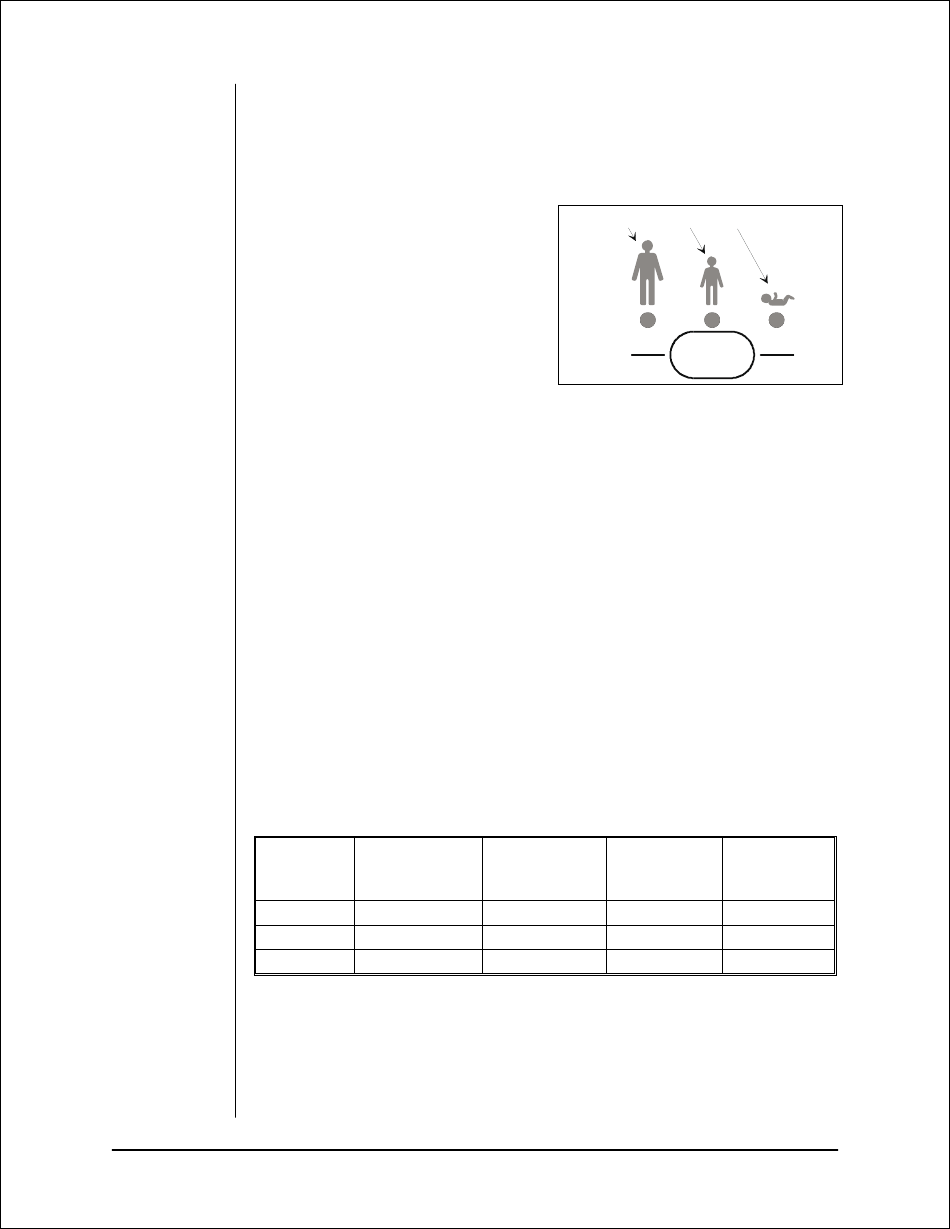

Figure 1-8 - Patient Size Graphics and Indicators
HIGHEST INCREMENT
SELECTABLE
PRESSURE
260 mmHg 5 mmHg
160 mmHg 5 mmHg
120 mmHg 5 mmHg
