1.3.18

PLACEMENT OF THE QUICK REFERENCE CARD

The Quick Reference card provides abbreviated descriptions of front panel keys on one
side, and on the other side provides descriptions of the status codes. To attach the Quick
Reference card, thread the NIBP hose through the two holes in the card.

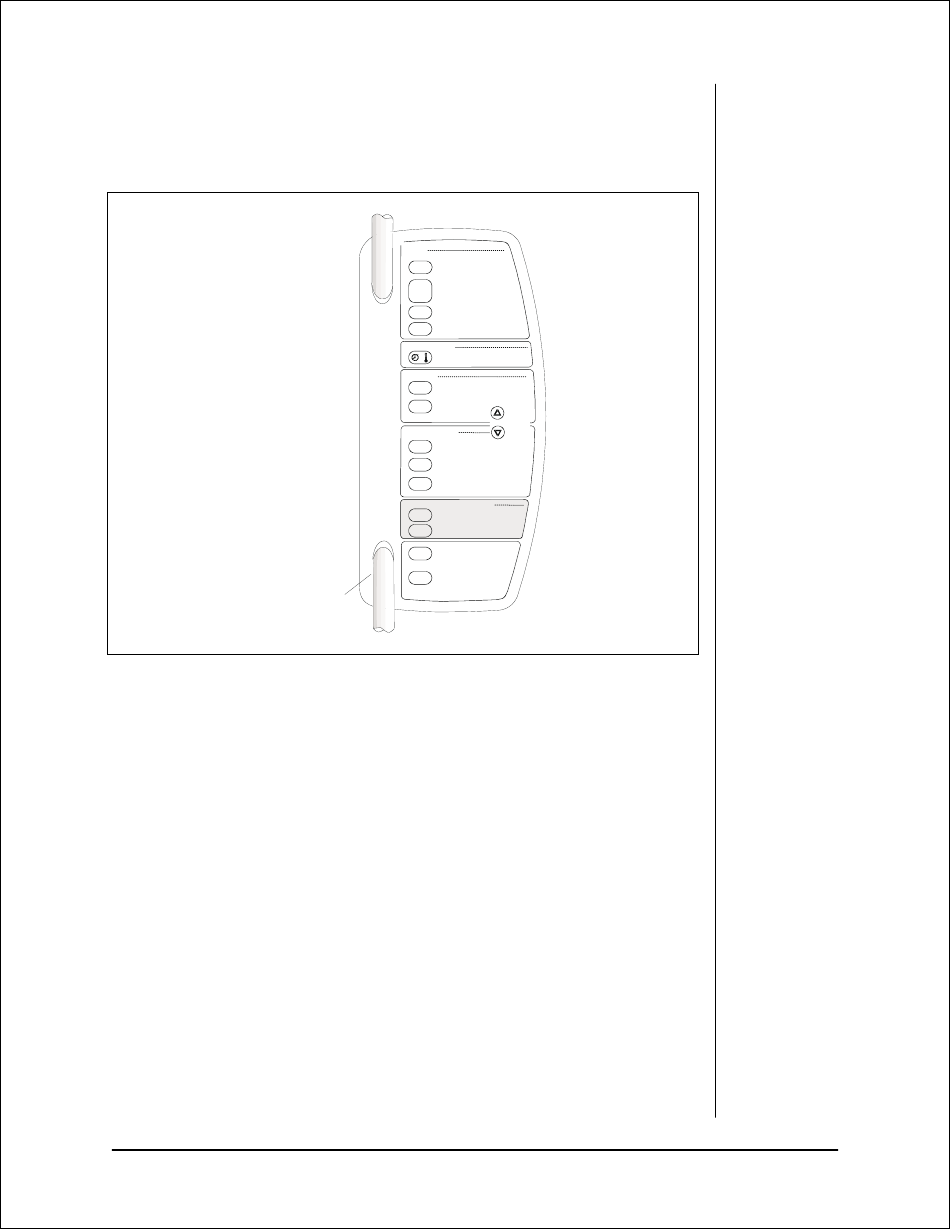

Thread the NIBP
hose through the
2 holes in the Quick
Reference Card.
Figure 1-22 Placement of Quick Reference Label
NOTE: The card shown in figure 1-22 is a sample to show how to attach the card. The
actual card may differ.
Accutorr Plus Service Manual
Chapter 1, Operation
NIBP
PATIENT Choose Patient Size
SETUP
Start NIBP
START
N I BP Measurement
Stop NIBP Measurement
DEFLATE
Deflate Cuff
Set Interval
INTERVAL V
TIMER/TEMP .
Interval, Elapsed Time or Temperature
ALARMS
Choose a Parameter,
SET
ALARMS use arrows to change
Silence Alarm
MUTE
Up/
Increase
Down/
PATIENT INFO.
Decrease
Activates Room /Bed
ROOM
BED
mode, use arrows to change
DATA Display Prior Measurement(s)
SCAN
To erase most recent measurement,
DELETE press DATA SCAN, then press and
INFO
hold DELETE INFO for 1 beep
®
ACCUTORR PLUS WITH TREND
Switch Trend/Menu Display
MENU
Select Parameter
SELECT
Press to print/stop print
PRINT
Press and hold for 2 beeps to
DEFAULTS
restore all hospital settings
