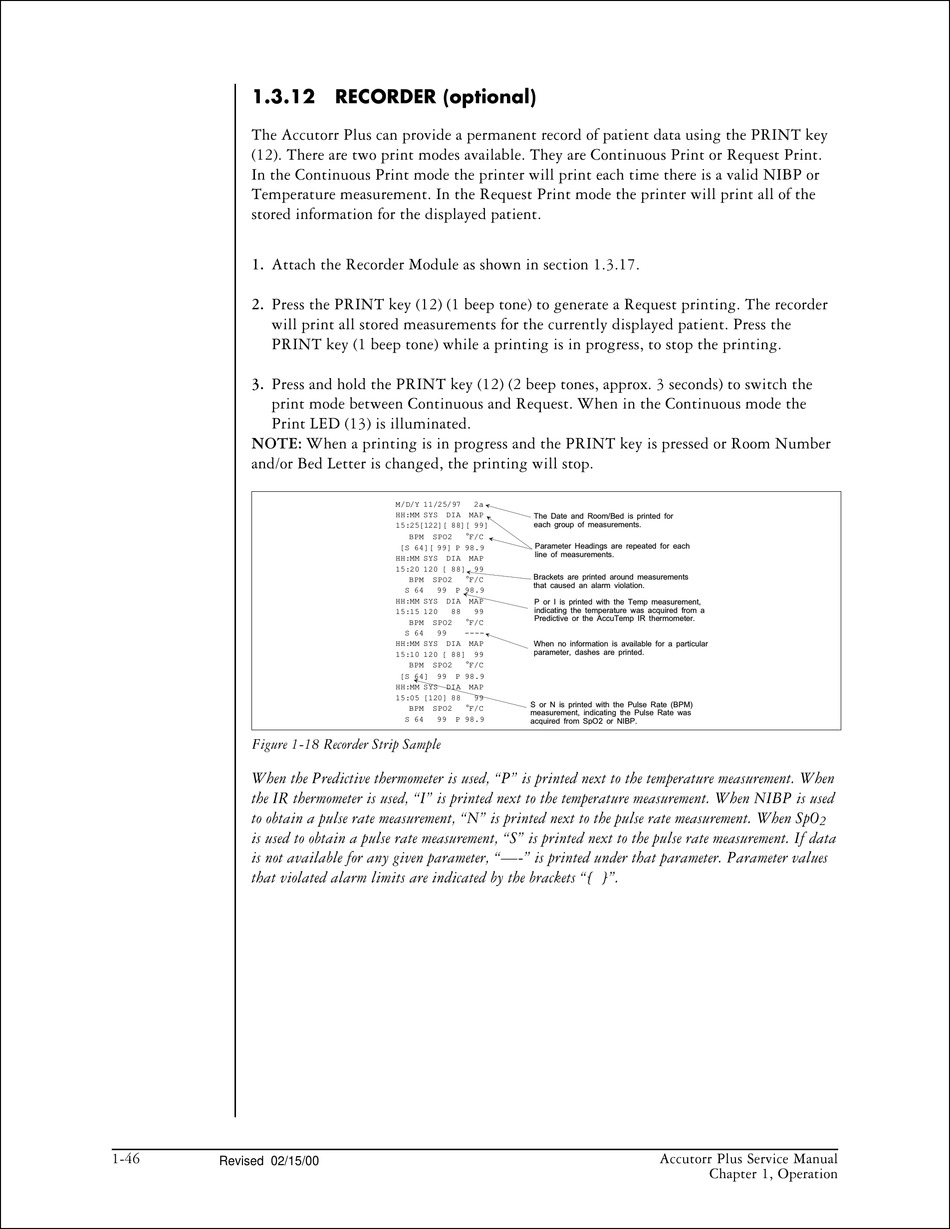

Recorder (Optional) - Datascope Accutorr Plus Service Manual

1.3.12
The Accutorr Plus can provide a permanent record of patient data using the PRINT key
(12). There are two print modes available. They are Continuous Print or Request Print.
In the Continuous Print mode the printer will print each time there is a valid NIBP or
Temperature measurement. In the Request Print mode the printer will print all of the
stored information for the displayed patient.
1. Attach the Recorder Module as shown in section 1.3.17.
2. Press the PRINT key (12) (1 beep tone) to generate a Request printing. The recorder
will print all stored measurements for the currently displayed patient. Press the
PRINT key (1 beep tone) while a printing is in progress, to stop the printing.
3. Press and hold the PRINT key (12) (2 beep tones, approx. 3 seconds) to switch the
print mode between Continuous and Request. When in the Continuous mode the
Print LED (13) is illuminated.
NOTE: When a printing is in progress and the PRINT key is pressed or Room Number
and/or Bed Letter is changed, the printing will stop.
Figure 1-18 Recorder Strip Sample
When the Predictive thermometer is used, "P" is printed next to the temperature measurement. When
the IR thermometer is used, "I" is printed next to the temperature measurement. When NIBP is used
to obtain a pulse rate measurement, "N" is printed next to the pulse rate measurement. When SpO
is used to obtain a pulse rate measurement, "S" is printed next to the pulse rate measurement. If data
is not available for any given parameter, "—-" is printed under that parameter. Parameter values
that violated alarm limits are indicated by the brackets "[ ]".
1-46
Revised 02/15/00

RECORDER (optional)

M/D/Y 11/25/97 02a
HH:MM SYS DIA MAP
15:25[122][ 88][ 99]
E
BPM SPO2 F/C
[S 64][ 99] P 98.9
HH:MM SYS DIA MAP
15:20 120 [ 88] 99
E
BPM SPO2 F/C
S 64 99 P 98.9
HH:MM SYS DIA MAP
15:15 120 88 99
BPM SPO2 E F/C
S 64 99 ----
HH:MM SYS DIA MAP
15:10 120 [ 88] 99
E
BPM SPO2 F/C
[S 64] 99 P 98.9
HH:MM SYS DIA MAP
15:05 [120] 88 99
BPM SPO2 E F/C
S 64 99 P 98.9
The Date and Room/Bed is printed for
each group of measurements.
Parameter Headings are repeated for each
line of measurements.
Brackets are printed around measurements
that caused an alarm violation.
P or I is printed with the Temp measurement,
indicating the temperature was acquired from a
Predictive or the AccuTemp IR thermometer.
When no information is available for a particular
parameter, dashes are printed.
S or N is printed with the Pulse Rate (BPM)
measurement, indicating the Pulse Rate was
acquired from SpO2 or NIBP.
