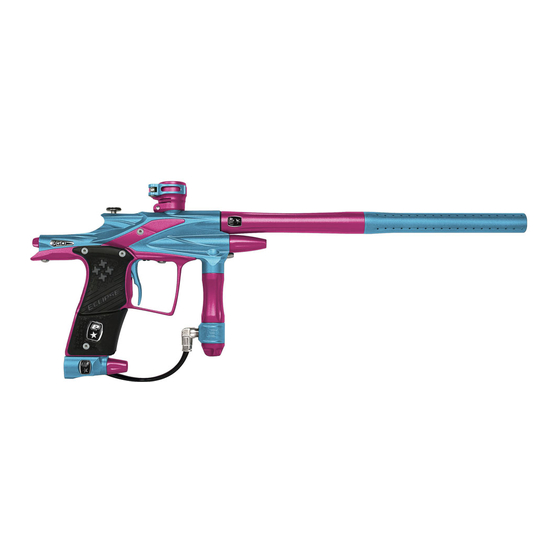

PLANET ECLIPSE EGO TEN Operator's Manual
  1. Manuals
  2. Brands
  3. PLANET ECLIPSE Manuals
  4. Paintball equipment
  5. EGO TEN
  6. Operator's manual

PLANET ECLIPSE EGO TEN Operator's Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the EGO TEN and is the answer not in the manual?

Questions and answers

Related Manuals for PLANET ECLIPSE EGO TEN

Summary of Contents for PLANET ECLIPSE EGO TEN

  • Page 2 WARNING adHere strictlY to tHese and all otHer safetY instructions and Guidelines! Please read and understand all Always fit a barrel-blocking device to the Ego10 when instruction manuals before use. not in use. The Eclipse Ego10 is not a toy. Paintball safetY Always remove all paintballs from the Ego10 when rules must be folloWed at all times.
  • Page 3 QuicK Guide WARNING CONTENTS ORIENTATION adHere strictlY to tHese and all otHer QUICK SET-UP safetY instructions and Guidelines! USING YOUR EGO10 MENU TREE ADVANCED SET-UP MAINTENANCE FAULT FINDING Persons under 18 years of age must have adult tHis users manual is in enGlisH. SERVICE CENTERS supervision when using or handling the Ego10.
  • Page 4 6 orientation 27 > tHe sound indicator > tHe triGGer detection Names the component parts of the Ego10 Marker. This indicator section is essential reading for everyone. 28 > tHe locK indicator > tHe batterY leVel indicator 6 > KnoW Your eGo10 >...
  • Page 5 41 > debounce 59 > tHe eGo10 triGGer assemblY -The Debounce Parameter QuicK Guide > emPtY 61 > tHe eGo10 solenoid assemblY -The breech Empty Time Parameter > full 63 > remoVinG tHe ValVe assemblY -The breech Full Time Parameter CONTENTS CONTENTS >...
  • Page 6 KnoW Your eGo10 bolt Pin clamPinG leVer ValVe feednecK bolt sPrinG bodY ValVe lPr bodY Guide eXHaust ValVe lPr caP rammer caP torPedo ValVe rammer PluG frm screW frame assemblY inline reGulator assemblY batterY frame screW frame screW macro line elboW eYe coVer screW ooPs Knob...
  • Page 7 ecliPse sHaft 3 barrel QuicK Guide CONTENTS note: ThE bOrE SizE OF yOUr ShAFT 3 MAy vAry ACCOrDiNg TO ThE MODEl OF EgO10 yOU hAvE. ORIENTATION ORIENTATION QUICK SET-UP your Eclipse Ego10 comes as standard with an Eclipse Shaft 3 barrel. USING YOUR EGO10 MENU TREE The barrel screws into the body of the Ego10 using a right hand thread...
  • Page 8 inline reGulator #015 nbr 90 inline reGulator toP #015 nbr 70 inline reGulator Piston inline reGulator sPrinG inline reGulator sWiVel #008 nbr 70 inline reGulator adJuster screW #011 nbr 70 #016 nbr 70 inline reGulator bottom...
  • Page 9 loW Pressure reGulator QuicK Guide CONTENTS ORIENTATION ORIENTATION #14x2 nbr 70 QUICK SET-UP #016 nbr 70 USING YOUR EGO10 MENU TREE ADVANCED SET-UP lPr bodY MAINTENANCE FAULT FINDING #010 nbr 70 SERVICE CENTERS PARTS LIST SPARES & ACCESSORIES lPr Piston sPrinG INDEX lPr Piston #013 nbr 70...
  • Page 10 eGo10 solenoid assemblY sPool caP sPool sPrinG GasKet sPool sHaft solenoid manifold inlet barb m2.5x6 fiXinG screWs Pilot ValVe...
  • Page 11 eGo10 bolt assemblY QuicK Guide CONTENTS ORIENTATION ORIENTATION QUICK SET-UP USING YOUR EGO10 MENU TREE ADVANCED SET-UP bolt PlunGer MAINTENANCE FAULT FINDING SERVICE CENTERS PARTS LIST bolt Pin SPARES & ACCESSORIES bolt insert INDEX 015 nbr70 bolt sPrinG 012 nbr70 eGo10 bolt note: ThE CONFigUrATiON OF yOUr EgO10 bOlT MAy DiFFEr DEPENDiNg ON ThE vErSiON OF EgO10 yOU hAvE.
  • Page 12 tHe eGo10 naViGation console PREVIOUS / At the rear of the Ego10 grip frame you will find the RAISE navigation console (fiGure 1.5) which is used for: > turninG tHe eGo10 on and off usinG tHe button SELECT > scrollinG tHrouGH menus WitH tHe buttons >...
  • Page 13 oPerational oVerVieW QuicK Guide below is a brief overview of what happens during CONTENTS the Ego10 firing cycle. The location of parts ORIENTATION ORIENTATION discussed in the text below can be found on page QUICK SET-UP 74-75. USING YOUR EGO10 MENU TREE Assuming the Ego10 is gassed up and turned on, air supply...
  • Page 15 installinG a 9V batterY QuicK Guide CONTENTS Ensure that the Ego10 is switched off. lay the marker on a ORIENTATION flat surface in front of you with the feed tube furthest away QUICK SET-UP QUICK SET-UP and with the barrel pointing to the right. USING YOUR EGO10 Use a 5/64”...
  • Page 16 sWitcHinG on tHe eGo10 To switch on the Ego10 press the button twice in quick succession, referred to elsewhere in this manual as ‘double- clicking’ . The Ego10 can also be switched on by pushing and holding the button (fiGure 3.1). sWitcHinG off tHe eGo10 Press and hold the...
  • Page 17 usinG tHe breaK beam QuicK Guide sensor sYstem CONTENTS ORIENTATION QUICK SET-UP QUICK SET-UP The break beam sensor system, referred elsewhere in this manual as ‘bbSS’ is used to detect when a paintball is ready USING YOUR EGO10 to fire from the Ego10. if no paintball is ready then the MENU TREE bbSS will inhibit the Ego10 from firing.
  • Page 18 settinG uP Your eGo10 WARNING WarninG: maKe sure tHe marKer is turned off before you can begin to use your Ego10, you will need to and tHat no Paintballs are in tHe marKer or attach an air system and a paintball loader. loader before installinG an air sYstem.
  • Page 19 t-slot mountinG macroline HosinG and QuicK Guide sYstem elboWs CONTENTS ORIENTATION The Ego10 utilises a T-slot arrangement to mount the OOPS To aid the longevity of your macroline hosing, it is very QUICK SET-UP to the bottom of the frame. The T-slot is an improvement important to remove it from (and install it back into) the USING YOUR EGO10 USING YOUR EGO10...
  • Page 20 installinG an adJustable air sYstem WARNING WarninG: maKe sure tHe marKer is turned off and tHat no Paintballs are in tHe marKer or loader before installinG an air sYstem. Firstly disconnect the macroline hosing from the elbow attached to the OOPS at the base of the grip frame (see fiGure 4.4).
  • Page 21 attacHinG a loader QuicK Guide CONTENTS Using a 5/32” hex key or your fingers, turn the sprocket ORIENTATION screw of the clamping feed neck counter clockwise (see fiGure 5.1). QUICK SET-UP USING YOUR EGO10 USING YOUR EGO10 release the clamping lever on the feed neck (see fiGure MENU TREE and test to see if your loader can easily be pushed...
  • Page 22 settinG tHe triGGer The Ego10 provides the user with the option to use either a micro-switch or an Opto sensor as the means for detecting trigger pulls. before you begin to adjust and set your trigger, you must first select the method of trigger detection that you wish to use by entering the Main menu and making your selection from the menu (see...
  • Page 23 (continued) QuicK Guide CONTENTS is used to adjust the micro switch activation screw ORIENTATION point in the trigger pull at which the micro-switch is QUICK SET-UP activated. Turn the screw clockwise to decrease the amount of trigger travel to the activation point. Turn the USING YOUR EGO10 USING YOUR EGO10 screw counter clockwise to increase the amount of trigger...
  • Page 24 adJustinG tHe VelocitY when using your Ego10, you may wish to change the velocity at which your Ego10 is firing. This is done by inserting a 1/8" hex key into the adjuster screw at the bottom of your Ego10 inline regulator and adjusting it accordingly (see fiGure 7.1).
  • Page 25 SOFTwArE MAy hAvE A DiFFErENT lAyOUT OF ThE rUN SCrEEN FrOM whAT iS PriNTED iN ThiS MANUAl. yOU MAy FiND SOME iCONS hAvE bEEN ADDED Or rEMOvED ENTirEly. iF yOU ArE UNSUrE AbOUT ANy iCONS whiCh DO NOT FEATUrE iN ThE MANUAl CONTACT yOUr lOCAl DEAlEr/SErviCE CENTrE Or PlANET ECliPSE DirECTly.
  • Page 26 tHe breaK beam sensor bbss fault Has been cleared and sYstem indicator (bbss) no ball detected The sensor is enabled. No ball is detected so the Ego10 cannot be fired. To reset the bbSS The bbSS is able to switch itself off in the event of a icon, use the button to switch off the blockage or contamination preventing it from functioning...
  • Page 27 tHe sound indicator QuicK Guide oPto sensor selected, readinG mid-ranGe CONTENTS The sound indicator on the run screen is used to convey if The Ego10 is configured to use the Opto ORIENTATION parameter in the menu (page 43) is SOUnD HarDWarE sensor to detect trigger pulls.
  • Page 28 tHe locK indicator when the game timer reaches the the gamer timer will start aLarM tiME The Ego10 has a tournament lock which prevents the user to flash and the audible alarm will from making changes to any parameter that affects the sound every second, provided that the way in which the Ego10 shoots, without the need for tools.
  • Page 29 tHe actual tHe menu sYstem QuicK Guide rate of fire CONTENTS behind the run screen is a structured menu system ORIENTATION comprised of two layers of menus. Each menu contains a when the actual rOF is selected QUICK SET-UP number of menu items and each menu item can either be for display the run screen will look a parameter or a branch to another menu.
  • Page 30 main menu main menu turn off Turn off the Ego10 Preset load USEr 1 load the USEr1 settings USEr 2 load the USEr 2 settings FACTOry load the default factory settings (semi-automatic) NPPl load NPPl 2008 compliant settings PSP 10 load the PSP 10 balls per second (bPS) compliant settings PSP 12 load the PSP 12 balls per second (bPS) compliant settings...
  • Page 31 QuicK Guide main menu CONTENTS ORIENTATION QUICK SET-UP USING YOUR EGO10 ramP setuP* (fire mode dePendant) MENU TREE MENU TREE tYPe ADVANCED SET-UP STEP Step ramping liNEAr linear ramping MAINTENANCE CANCEl Cancel selection FAULT FINDING SERVICE CENTERS rate* PARTS LIST 0 - 100% Percentage linear ramp rate (TyPE dependant) semi sHots...
  • Page 32 main menu full 1.0 - 20.0 ms Time in milliseconds (ms) that a paintball must be in the breech for the Ego10 to be ready to fire Pull tm 3.0 - 25.0 ms Time in milliseconds (ms) that the trigger must be pulled for a shot to be fired release tm 3.0 - 25.0 ms Time in milliseconds (ms) that the trigger must be released before a pull can be recorded...
  • Page 33 QuicK Guide main menu CONTENTS ORIENTATION dbl clicK QUICK SET-UP NONE Double click is disabled entirely POwEr UP Double click for power up only USING YOUR EGO10 Double click is fully enabled MENU TREE MENU TREE CANCEl Cancel the Dbl click selection ADVANCED SET-UP bacK return to Main menu...
  • Page 34 accessinG tHe menu alterinG Parameters sYstem when the displayed item is a parameter, as indicated by a parameter value on the right of the screen, To access the Main menu from the run screen double-click pressing the button will activate the EDit button and the first item on the Main menu will be mode which allows the parameter value to...
  • Page 35 PArAMETErS FrOM whAT iS PriNTED iN ThiS MANUAl. yOU MAy FiND SOME PArAMETErS hAvE bEEN ADDED Or rEMOvED ENTirEly. iF yOU ArE UNSUrE AbOUT ANy PArAMETErS whiCh DO NOT FEATUrE iN ThE MANUAl CONTACT yOUr lOCAl DEAlEr/ SErviCE CENTrE Or PlANET ECliPSE DirECTly.
  • Page 36 Preset > nPPl: load a set of parameters that configures the Ego10 to comply with the 2008 NPPl rules governing firing tHe Preset menu modes. in order to simplify the set up of the Ego10 a number of > PsP 10: load a set of parameters that configures the preset configurations are available for selection.
  • Page 37 fire mode bs on rof QuicK Guide tHe firinG mode Parameter tHe maXimum rate of fire CONTENTS Parameter ORIENTATION This parameter is used to select the firing QUICK SET-UP mode of the Ego10 and has the following parameter is used to set the BS On rOF choices: maximum achievable rate of fire from the...
  • Page 38 ramP setuP > steP: Step ramping will cause the Ego10 to shoot in tHe ramP settinGs menu semi-automatic until a number of trigger pulls, set by SEMi SHOtS , have been made at a minimum pull rate, set This menu is only available when ramping has been .
  • Page 39 semi sHots restart QuicK Guide tHe semi sHots menu tHe ramP restart Parameter CONTENTS ORIENTATION The parameter sets the number of shots parameter defines the amount rEStart QUICK SET-UP in semi-automatic that are required at the of time after the last trigger pull during rate before ramping will start.
  • Page 40 dWell filter tHe dWell Parameter tHe filter menu DWELL parameter sets the amount of The parameters on the FiLtEr menu are all used to tune time that the solenoid is energized and the Ego10’s software filters which prevent the Ego10 from therefore the amount of gas that is released firing unless all of the necessary conditions are met.
  • Page 41 debounce Pull tm QuicK Guide tHe debounce Parameter tHe triGGer Pull time Parameter CONTENTS ORIENTATION pULL tM parameter is used to set the DEBOUnCE parameter is used to combat QUICK SET-UP minimum amount of time that the trigger any trigger bounce that might occur in the must be pulled before it is recognised as a Ego10 and can be set between level 1 and USING YOUR EGO10...
  • Page 42 basic triGGer HardWare filter set-uP tHe HardWare menu HarDWarE menu comprises parameters that control low level functionality of the Ego10 electronic hardware. 95% of trigger bounce problems can be eliminated by utilizing one of the nine fixed choices DEBOUnCE (lEvEl 1-9). in attempting to eliminate trigger bounce it is advisable to try the nine fixed choices before DEBOUnCE...
  • Page 43 triGGer tones QuicK Guide tHe triGGer detection tHe tones Parameter CONTENTS Parameter ORIENTATION This parameter determines if the Ego10 QUICK SET-UP emits a tone each time any of the The Ego10 is fitted with a dual trigger pull pushbuttons on the navigation console detection system.
  • Page 44 Grn leVel dbl clicK tHe double clicKinG Parameter tHe lcd bacKliGHt Green leVel Parameter This parameter is used to select where double-clicking the button can be used. The percentage of green light emitted from The choices available for this parameter are: the lCD backlight.
  • Page 45 traininG clocK QuicK Guide tHe traininG Parameter tHe clocK menu (selected models onlY) CONTENTS ORIENTATION training parameter is used to select CLOCK menu allows the time and date on the Ego10’s QUICK SET-UP Training mode. in Training mode the Ego10 internal clock to be adjusted.
  • Page 46 sHot count GauGe maX tHe sHot count menu tHe GauGe maX Parameter SHOt COUnt menu allows the user to alter the shot gaUgE MaX parameter allows the user gauge that appears in the shot count run screen. to set the number the gauge counts down from every time the Ego10 is fired.
  • Page 47 timer alarm QuicK Guide tHe Game timer menu tHe alarm time Parameter CONTENTS ORIENTATION This menu is comprised of parameters that control the An alarm condition is generated whenever QUICK SET-UP operation of the game Timer. the game timer counts down to a specific time set by the parameter.
  • Page 48 cleaninG tHe breaK beam sensor sYstem WARNING WarninG: de-Gas Your marKer, discHarGinG anY stored Gas in a safe direction, and remoVe tHe barrel, loader, air sYstem and anY Paintballs to maKe tHe marKer easier and safer to WorK Undo the retaining screw for the break beam sensor cover fiG 9.1 on the left hand side of the Ego10 using a 5/64"...
  • Page 49 (continued) QuicK Guide CONTENTS remove the rubber detent and using a dry cotton bud ORIENTATION clean the detent and it’s location point in the Ego10 body. QUICK SET-UP (see fiGure 9.4) replace the detent back into the Ego10 USING YOUR EGO10 body (see fiGure 9.5) and place the bbSS back into the...
  • Page 50 cleaninG tHe inline reGulator WARNING WarninG: de-Gas Your marKer, discHarGinG anY stored Gas in a safe direction, and remoVe tHe barrel, loader, air sYstem and anY Paintballs to maKe tHe marKer easier and safer to WorK fiG 10.1 note: ThE iNTErNAlS OF yOUr iNliNE rEgUlATOr MAy vAry ACCOrDiNg TO ThE MODEl OF EgO10 ThAT yOU hAvE.
  • Page 51 (continued) QuicK Guide CONTENTS ORIENTATION Thoroughly clean the two 008 Nbr 70 o-rings on the adjuster screw and lubricate ready for re-assembly. inspect QUICK SET-UP the top face of the adjuster unit for any excessive wear or USING YOUR EGO10 damage as this could cause the inline regulator to creep MENU TREE (see fiGure 10.6).
  • Page 52 cleaninG tHe loW Pressure reGulator (lPr) WARNING WarninG: de-Gas Your marKer, discHarGinG anY stored Gas in a safe direction, and remoVe tHe barrel, loader, air sYstem and anY Paintballs to maKe tHe marKer easier and safer to WorK note: ThE iNTErNAlS OF yOUr lPr MAy vAry ACCOrDiNg TO ThE MODEl OF EgO10 yOU hAvE.
  • Page 53 (continued) QuicK Guide CONTENTS nsert the front spring (silver in colour) into the lPr cap, so ORIENTATION that it rests neatly on the adjuster screw (see fiGure 11.5). QUICK SET-UP USING YOUR EGO10 Place the gold coloured spring onto the lPr piston and insert piston and spring into the lPr cap, o-ring end first MENU TREE (see fiGure 11.6).
  • Page 54 maintaininG tHe rammer WARNING WarninG: de-Gas Your marKer, discHarGinG anY stored Gas in a safe direction, and remoVe tHe barrel, loader, air sYstem and anY Paintballs to maKe tHe marKer easier and safer to WorK Pull the bolt pin upwards so that it disengages the rammer, allowing the bolt to be removed via the rear of the Ego10 (see fiGure 12.1).
  • Page 55 (continued) QuicK Guide CONTENTS lubricate all of the seals on the rammer shaft and inside ORIENTATION the rammer cap and replace the rammer into the rear of QUICK SET-UP the Ego10 body as shown in (see fiGure 12.7). USING YOUR EGO10 MENU TREE note: DO NOT USE ECliPSE grEASE ON ThE rAMMEr.
  • Page 56 cleaninG and lubricatinG tHe bolt WARNING WarninG: de-Gas Your marKer, discHarGinG anY stored Gas in a safe direction, and remoVe tHe barrel, loader, air sYstem and anY Paintballs to maKe tHe marKer easier and safer to WorK fiG 13.1 raise the bolt pin and remove the bolt and bolt pin from the Ego10 marker body (fiGure 13.1).
  • Page 57 remoVinG tHe frame QuicK Guide CONTENTS ORIENTATION WARNING QUICK SET-UP WarninG: de-Gas Your marKer, discHarGinG anY USING YOUR EGO10 stored Gas in a safe direction, and remoVe tHe barrel, loader, air sYstem and anY Paintballs MENU TREE to maKe tHe marKer easier and safer to WorK ADVANCED SET-UP MAINTENANCE MAINTENANCE...
  • Page 58 attacHinG tHe frame WARNING WarninG: de-Gas Your marKer, discHarGinG anY stored Gas in a safe direction, and remoVe tHe barrel, loader, air sYstem and anY Paintballs to maKe tHe marKer easier and safer to WorK fiG 14.5 Carefully thread the solenoid and break beam sensor system wires through the access holes in the top of the Ego10 grip frame and re-attach the grip...
  • Page 59 tHe eGo10 triGGer QuicK Guide assemblY CONTENTS ORIENTATION QUICK SET-UP WARNING USING YOUR EGO10 WarninG: de-Gas Your marKer, discHarGinG anY MENU TREE stored Gas in a safe direction, and remoVe tHe barrel, loader, air sYstem and anY Paintballs ADVANCED SET-UP to maKe tHe marKer easier and safer to WorK MAINTENANCE MAINTENANCE...
  • Page 60 (continued) replace the trigger spring into the spring hole in the top of the trigger and position the trigger so that the hole through the trigger lines up with the holes in the bearing carrier, slide the trigger pin in place (see fiGure 15.6) gently lower the trigger assembly and bearing carrier into the frame, taking care not to damage the micro-switch or...
  • Page 61 tHe eGo10 solenoid QuicK Guide assemblY CONTENTS ORIENTATION QUICK SET-UP WARNING USING YOUR EGO10 WarninG: de-Gas Your marKer, discHarGinG anY MENU TREE stored Gas in a safe direction, and remoVe tHe barrel, loader, air sYstem and anY Paintballs ADVANCED SET-UP to maKe tHe marKer easier and safer to WorK MAINTENANCE MAINTENANCE...
  • Page 62 (continued) Using a 5/64” hex key remove the Spool cap and spring . remove the Spool shaft using a pair of (see fiGure 16.7) needle-nosed pliers as shown in see fiGure 16.8 . Clean the spool shaft using a cloth to wipe off any paint, debris or old grease and lubricate all of the o-rings on the spool shaft with Eclipse grease before re-inserting it (see fiGure...
  • Page 63 remoVinG tHe ValVe QuicK Guide assemblY CONTENTS ORIENTATION WARNING QUICK SET-UP USING YOUR EGO10 WarninG: de-Gas Your marKer, discHarGinG anY MENU TREE stored Gas in a safe direction, and remoVe tHe barrel, loader, air sYstem and anY Paintballs ADVANCED SET-UP to maKe tHe marKer easier and safer to WorK MAINTENANCE MAINTENANCE...
  • Page 64 (continued) Note how one side of the exhaust valve guide is flat (A) whilst the other is raised (b) to create the surface that the exhaust valve seals on . inspect (see fiGure 17.7) the sealing face of both the exhaust valve guide and the exhaust valve for any excessive wear or damage.
  • Page 65 (continued) QuicK Guide CONTENTS when the exhaust valve is in the correct place, you will be ORIENTATION able to see the closed side through the valve plug hole in QUICK SET-UP the Ego10 body (see fiGure 17.12) USING YOUR EGO10 MENU TREE Using a 1/8”...
  • Page 66 tHe eGo10 on/off PurGe sYstem (ooPs) WARNING WarninG: de-Gas Your marKer, discHarGinG anY stored Gas in a safe direction, and remoVe tHe barrel, loader, air sYstem and anY Paintballs to maKe tHe marKer easier and safer to WorK having disconnected the macroline hose from the fitting on the OOPS body, unscrew the OOPS knob from the fiG 18.1 OOPS body...
  • Page 67 (continued) QuicK Guide CONTENTS Clean and check the condition of the single internal ORIENTATION 006 Nbr90 o-ring in the front of the OOPS insert, replace QUICK SET-UP if necessary (see fiGure 18.5) . lubricate all three of these USING YOUR EGO10 o-rings liberally using Eclipse grease (see fiGure 18.6) MENU TREE...
  • Page 68 WARNING WarninG: de-Gas Your marKer, discHarGinG anY stored Gas in a safe direction, and remoVe tHe barrel, loader, air sYstem and anY Paintballs to maKe tHe marKer easier and safer to WorK...
  • Page 69 QuicK Guide sYmPtom Possible cause solution CONTENTS ORIENTATION Although a fresh battery has been fitted, the The battery has been fitted incorrectly. Fit the battery correctly with the positive QUICK SET-UP Ego10 will not switch on. terminal nearest to the side of the frame. USING YOUR EGO10 MENU TREE The battery terminals are not making...
  • Page 70 sYmPtom Possible cause solution The marker is chopping or trapping paint. The break beam sensor system is switched off. Switch on the break beam sensor system. The bolt is dirty, causing the sensor system to Clean the bolt. incorrectly detect a paintball. The break beam sensor system is dirty causing Clean the break beam sensor system.
  • Page 71 QuicK Guide sYmPtom Possible cause solution CONTENTS ORIENTATION Keep the break beam sensors clean to ensure The break beam sensor system does not The break beam sensor system is dirty. QUICK SET-UP correct readings (See Maintenance Section). appear to be reading correctly. USING YOUR EGO10 Check that the red receiver is on the right-hand break beam sensors are the wrong way around.
  • Page 72 Are you unsure of where to send your Ego10 to be repaired or serviced? if your local Eclipse dealer can’t assist you, why not contact your nearest Certified Eclipse Service Centre and arrange to send it into them to undertake any work that you require. united KinGdom & euroPe Planet ecliPse ltd PaintballnorGe as adrenalicia s.l. United Kingdom...
  • Page 73 Paintball central meGa PlaY morumbi Paintball QuicK Guide North Carolina brazil Call: Call: (336) 274 4002 (11) 3771-2969 Planet ecliPse llc CONTENTS Visit: www.pballcentral.com Email: paintball@megaplaymorumbi.com.br rhode island ORIENTATION Visit: www.megaplaymorumbi.com.br Call: (401) 247 9061 Paintball sHoWcase...
  • Page 75 QuicK Guide Part name CONTENTS ORIENTATION QUICK SET-UP valve guide 9v battery bolt O-ring USING YOUR EGO10 valve Plug Frame Clamping Feed Tube MENU TREE Clamping Feed Screw valve Spring Trigger ADVANCED SET-UP Exhaust valve Assembly Printed Circuit board body MAINTENANCE rammer Cap bearing Carrier...
  • Page 76 screW descriPtion PCb SCrEw (3), bEAriNg CArriEr SCrEw (2) ( M2.5 x5 CAP hEAD SOCKET) SOlENOiD SCrEw (2) ( M2.5 x6 CAP hEAD SOCKET) rUbbEr griP SCrEw (6), bbSS COvErS SCrEw (2) ( 6-32UNC x5/16 COUNTErSUNK SOCKET) ShOrT FEED NECK SCrEw ( 1 x10-32UNF x1/2 CAP hEAD SOCKET) ClAMPiNg FEED SPrOCKET SCrEw (CUSTOM MANUFACTUrED)
  • Page 77 QuicK Guide o-rinG location o-rinG location CONTENTS ORIENTATION QUICK SET-UP USING YOUR EGO10 bolt insert MENU TREE inline regulator Swivel barrel back ADVANCED SET-UP lPr body* MAINTENANCE back of the rammer FAULT FINDING rammer Cap SERVICE CENTERS inline regulator bottom PARTS LIST PARTS LIST SPARES &...
  • Page 78 tecH fleX mat ecliPse Gun oil ecliPse Grease Protect your Ego10 whilst you maintain it The recommended oil for use in all The recommended grease for use in all with the Eclipse Tech Flex Mat. maintenance and servicing procedures maintenance and servicing procedures that require oil.
  • Page 79 QuicK Guide CONTENTS ORIENTATION 09 GraVel PacK tecH sHirt 09 loWland KitbaG QUICK SET-UP Transport your laptop in style with the what better place to keep your Ego10? The perfect pocket covered garment for carrying all those hex keys and new 09 gravel Pack.
  • Page 80 indeX ..33 EXit Eye Cover..6, 75 Eye Cover Screw..6, 75 ..33, 47 aLarM ..30 FaCtOrY Air System..18, 20 Feedneck..6, 21, 75 ..32, 44 aUtO OFF FiLtEr ..31, 40 ..26, 32, 44 aUX OUt ..30, 37 FirE MODE AUx OUT indicator..25, 26 Frame..6, 57 –...
  • Page 81 Main Menu..30, 35 ..33, 46 SHOt COUnt QuicK Guide Menu System..29, 34 Shot Counter..28, 71 Menu Tree..30 – 33 Solenoid Assembly..6, 10, 61 – 63, 69, 75 CONTENTS Micro-switch..59 – 60, 70 Solenoid Manifold..10 ORIENTATION Micro-switch Activation Screw..22 – 23, 70, 76 Solenoid Screw..76 QUICK SET-UP MS 10..30...
  • Page 82 US 6311682, 6615814, 5881707, 5967133, 6035843, 6474326b1, 6637421b2 UK gb 234270, gb 2345953 PriNTED iN ChiNA © 2009 Copyright Planet Eclipse ltd. Eclipse, the Estar logo Device, Ego and geo are all either design trademarks, registered trademarks or trademarks of Planet Eclipse ltd. e10m09Vol2...

This manual is also suitable for:

Ego 10
