Summary of Contents for PLANET ECLIPSE GMEK
- Page 1 GMEK TRIGGER FRAME USER MANUAL - ENGLISH DE SIG NE D TO FIT: GMEK...
- Page 2 Always remove the first stage regulator and relieve all residual gas Never look into the barrel or breech area of the GMEK whilst the pressure from the GMEK for transport and storage.
- Page 3 Il contient des instructions et mesures de Always follow instructions, warnings and guidelines given with any sécurité importantes. En cas de doute, ou first stage regulator you use with the GMEK. s’il vous est impossible de comprendre le contenu du monde d’emploi, demandez Use 0.68 inch calibre paintballs only.
-
Page 4: Table Of Contents
CONTENTS GAME ON! QUICK START (05-14) TECHNICAL INFORMATION (16-19) Installation GMEK 3-way valve The GMEK frame kit Trigger assembly Setting up the GMEK Parts list GMEK safety switch Trigger adjustment Unloading the GMEK SUPPORT (20-23) Storage and transportation Index Support... -
Page 5: Quick Start
QUICK START INSTALLATION Visit our online Tech Room for videos of how to install the GMEK frame kit. We also have videos for servicing and maintaining your GMEK, as well as other Planet Eclipse markers. www.youtube.com/user/planeteclipsetv GMEK... -
Page 6: The Gmek Frame Kit

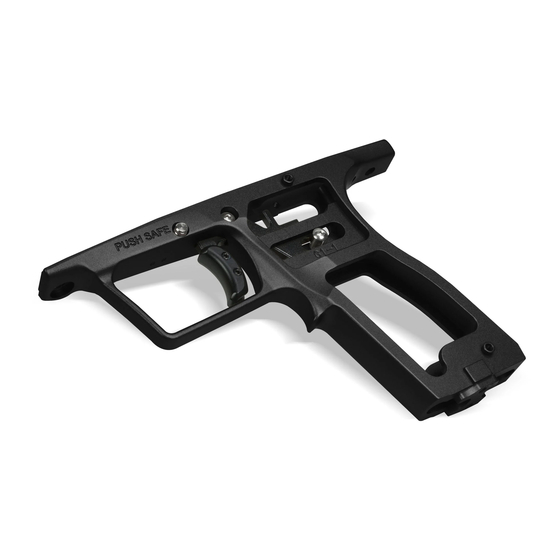

QUICK START THE GMEK FRAME KIT FIG-1 GMEK... - Page 7 QUICK START THE GMEK FRAME KIT FIG-1 The GMEK mechanical frame is an easy-to-fit kit that transforms the GTEK marker into a purely mechanical paintball marker. The kit includes: GMEK 3-Way Valve GMEK Frame Safety Switch Trigger Guide Post Trigger Plate...
-
Page 8: Setting Up The Gmek
QUICK START SETTING UP THE GMEK FIG-1 5/32 GMEK... -
Page 9: Air System
Always make sure the marker is SAFE with a barrel blocking device installed Loosen the clamping feed neck. and that no paintballs are in the GMEK or loader before installing an air system. Open the feed neck lever away from the feed neck. -
Page 10: Gmek Safety Switch
LIVE push the switch inwards from the right side of the frame FIG-2 WARNING! WARNING Always make sure the safety switch is set to SAFE when handling a GMEK. Failure to do so could result in injury or even death. GMEK... -
Page 11: Trigger Adjustment
Always make sure the marker is SAFE and de-gassed with a barrel blocking device installed and that no paintballs are in the GMEK or loader before adjusting the trigger Do not wind the screws in too far as this may prevent the GMEK from firing or even damage the marker. GMEK... -
Page 12: Unloading The Gmek
QUICK START UNLOADING THE GMEK FIG-1 5/32 GMEK... - Page 13 Unscrew clockwise to remove. Always make sure the marker is SAFE with a barrel blocking device installed and that no paintballs are in the GMEK or loader before unloading. Compressed air and nitrogen systems can be extremely dangerous if handled or used incorrectly.
-
Page 14: Storage And Transportation
Never carry your GMEK un-cased when not on a playing field. The non-playing public and law enforcement personnel may not be able to distinguish between a paintball marker and a real firearm. For your own safety and to protect the image of paintball, always carry the GMEK (or any other paintball marker) in a suitable marker case such as the one in which it was supplied. -
Page 15: Loader
Loader and mask property of their respective owners. GMEK featured may differ slightly from final production model. GMEK... -
Page 16: Technical Information
TECHNICAL INFORMATION GMEK 3-WAY VALVE FIG-1 #6 Seal (Custom) 5 x 1 NBR70 #6 Seal (Custom) 3 x 1 NBR70 6 x 1 NBR70 3-Way Valve Body 3-Way Valve Cap M2 x 16 Cross 3-Way Valve Spool Pan-Head Screws GMEK... -
Page 17: Trigger Assembly
Brass Bushing Trigger Spring 6-32 UNC X 0.5 Button-Head Screw Trigger Spring Screw (Custom) Trigger Shoe 6-32 UNC X 1/8 Socket Set Screws 6-32 UNC X 1/2 Socket Set Screws Brass Bushing Frame 6-32 UNC X 0.5 Button-Head Screw GMEK... -
Page 18: Parts List
TECHNICAL INFORMATION PARTS LIST FIG-1 GMEK... -
Page 19: Trigger Stop
TECHNICAL INFORMATION PARTS LIST FIG-1 GMEK 3-Way Valve GMEK Frame Safety Switch Trigger Guide Post Removable GMEK Trigger Shoe Adjustable Trigger Return Spring Trigger Stop GMEK Trigger Plate Trigger Guide Post OOPS Connection GMEK... -
Page 20: Support
Barrel: 09,13 On/Off Purge System: 09,13 Barrel Blocking Device: 09,13 OOPS: 09,13 Bolt: 07,19 Velocity: 03 Regulator: 02,03,09 Clamping Feed Neck: 09,13 Warning: 03,09,10,11,13,14 Warranty: 21 Safety Switch: 04,07,10,17,19 Frame: 07,17,19 Setting Up: 08,09 Storage: 02,14 Support: 21 Installation: 05 GMEK... -
Page 21: Support
Eclipse Dealer for upgrade options. For more information about our Planet Eclipse Approved Tech Centres, visit our servicing page online: PLANETECLIPSE.COM/SITE/SERVICE-CENTRES * Conditions apply, see online policies for full details at planeteclipse.com... -
Page 22: Notes
SUPPORT NOTES GMEK... - Page 23 SUPPORT NOTES GMEK...
- Page 24 Additional U.S. and International Patents may be pending. © 2017 Copyright Planet Eclipse Ltd. Eclipse, Planet Eclipse, the E Logo Device, Geo, CS1, Ego, LV1, Etek, Gtek, Etha, Gmek and EMC are all either design 130 Franklin Street Unit 14 Premier Park, Acheson Way trademarks, registered trademarks or trademarks of Planet Eclipse Ltd.
