PLANET ECLIPSE EGO TEN Operator's Manual page 49

(continued)
remove the rubber detent and using a dry cotton bud
clean the detent and it's location point in the Ego10 body.
(see fiGure 9.4) replace the detent back into the Ego10
body (see fiGure 9.5) and place the bbSS back into the
designated slot in the body
(see fiGure 9.2).
the sensor is face down in the body i.e. looking into the
breech.
replace the sensor cover and using a 5/64" hex key, replace
the bream beam sensor cover retaining screw to hold the
sensor cover in place
(see fiGure 9.6).
repeat the procedure for the opposite side of the Ego10.
you have now cleaned your break beam sensor system.
note: whEN ClEANiNg ThE brEAK bEAM SENSOr
SySTEM iNSPECT ThE CONDiTiON OF rUbbEr FiNgEr
DETENTS AND rEPlACE iF NECESSAry. ENSUrE ThAT ThE
rECEivEr SENSOr (iNDiCATED by A rED MArK & rED
hEAT ShriNK) iS lOCATED ON ThE righT-hAND SiDE OF
ThE MArKEr bODy.
WARNING
WarninG: if You are at all unsure of PerforminG
tHe maintenance Procedure Please contact Your
nearest ecliPse serVice centre. (see PaGes 72-73)
Ensure that
QuicK Guide
CONTENTS
ORIENTATION
QUICK SET-UP
USING YOUR EGO10
MENU TREE
ADVANCED SET-UP
MAINTENANCE MAINTENANCE
FAULT FINDING
SERVICE CENTERS
PARTS LIST

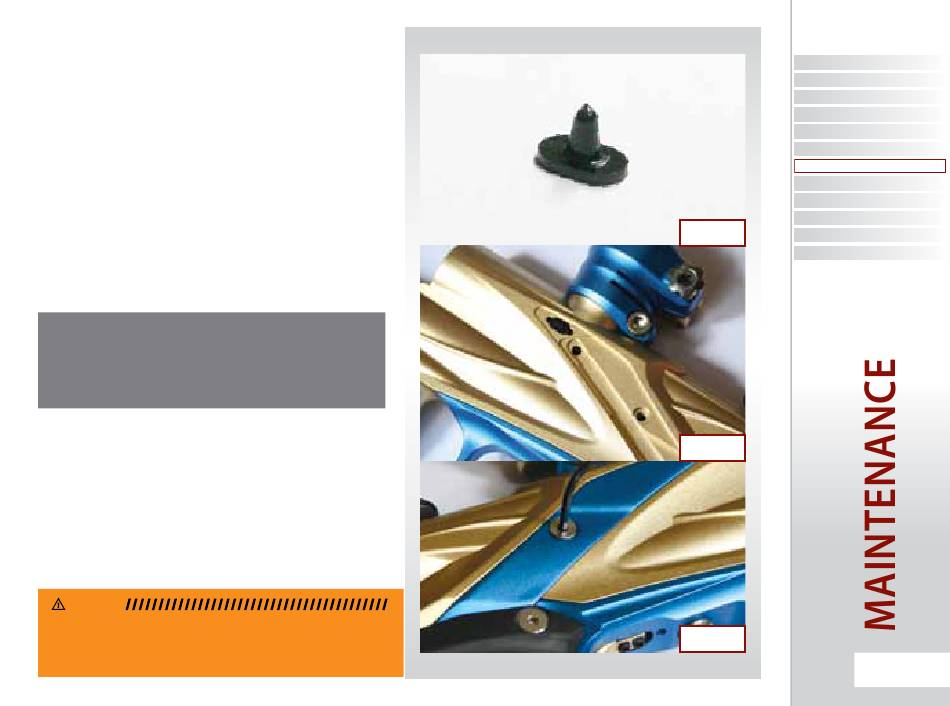

fiG 9.4
