nsert the front spring (silver in colour) into the lPr cap, so
that it rests neatly on the adjuster screw
Place the gold coloured spring onto the lPr piston and
insert piston and spring into the lPr cap, o-ring end first
(see fiGure 11.6).
before screwing the lPr cap back onto your Ego10, use a
dry cotton bud to clean the 010 Nbr 70 o-ring inside the
lPr body . lubricate this seal using a
(see fiGure 11.7)
light gun oil, such as Eclipse gun Oil.
replace the lPr cap by screwing it onto the lPr body in
the Ego10 (see fiGure 11.8).
WARNING
WarninG: if You are at all unsure of PerforminG
tHe maintenance Procedure Please contact
Your nearest ecliPse serVice centre. (see PaGes
72-73)
(see fiGure 11.5).

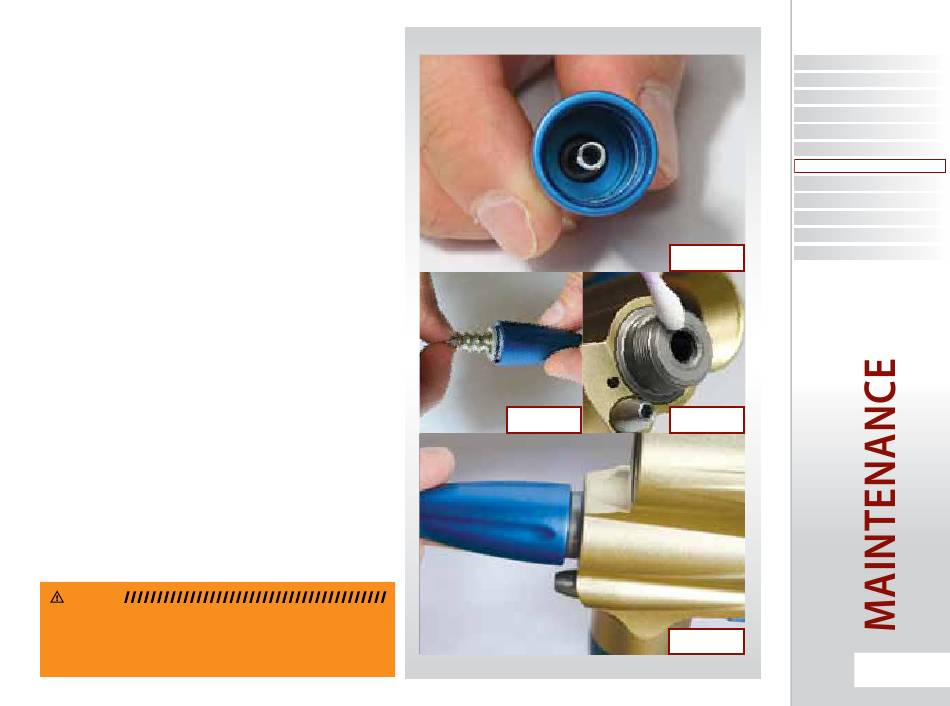

fiG 11.5
fiG 11.6 fiG 11.7
fiG 11.8
