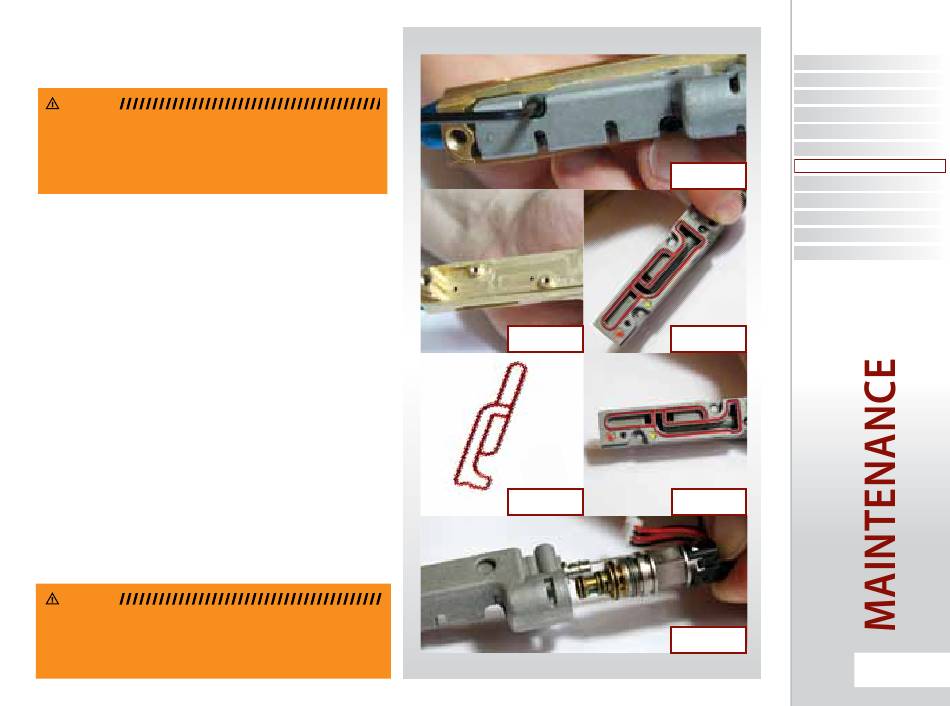

tHe eGo10 solenoid
assemblY
WARNING
WarninG: de-Gas Your marKer, discHarGinG anY
stored Gas in a safe direction, and remoVe tHe
barrel, loader, air sYstem and anY Paintballs
to maKe tHe marKer easier and safer to WorK
on.
with the frame separated from the Ego10 body and the
solenoid assembly and bbSS assembly unplugged from the
circuit board (see page 57) use a 5/64" hex key to undo and
remove the two screws that hold the solenoid assembly
onto the Ego10 body
(see fiGure 16.1).
with the solenoid assembly completely removed from the
Ego10 body the bottom of the Ego10 body should now
resemble
Ensure that the air transfer holes
fiGure 16.2
in the bottom of the body are free from contamination
from any dirt, debris, paint or moisture and clear away
any excess grease if it appears to be blocking any of the
transfer holes.
Check the underside of the solenoid assembly to ensure
that it is also free from damage or debris
16.3)
. remove and clean the rubber gasket as shown in
replace the rubber gasket ensuring that it
fiGure 16.4.
lies flat in its designated groove in the solenoid manifold
body
(see fiGure 16.5)
.
if you are replacing a defective pilot valve, unscrew it from
the solenoid manifold and replace it with a new pilot valve
unit
(see fiGure 16.6).
WARNING
WarninG: if You are at all unsure of PerforminG
tHe maintenance Procedure Please contact
Your nearest ecliPse serVice centre. (see PaGes
72-73)
(see fiGure
fiG 16.1
fiG 16.2
fiG 16.3
fiG 16.4
fiG 16.5
fiG 16.6
