installinG an
adJustable air sYstem
WARNING
WarninG: maKe sure tHe marKer is turned off
and tHat no Paintballs are in tHe marKer or
loader before installinG an air sYstem.

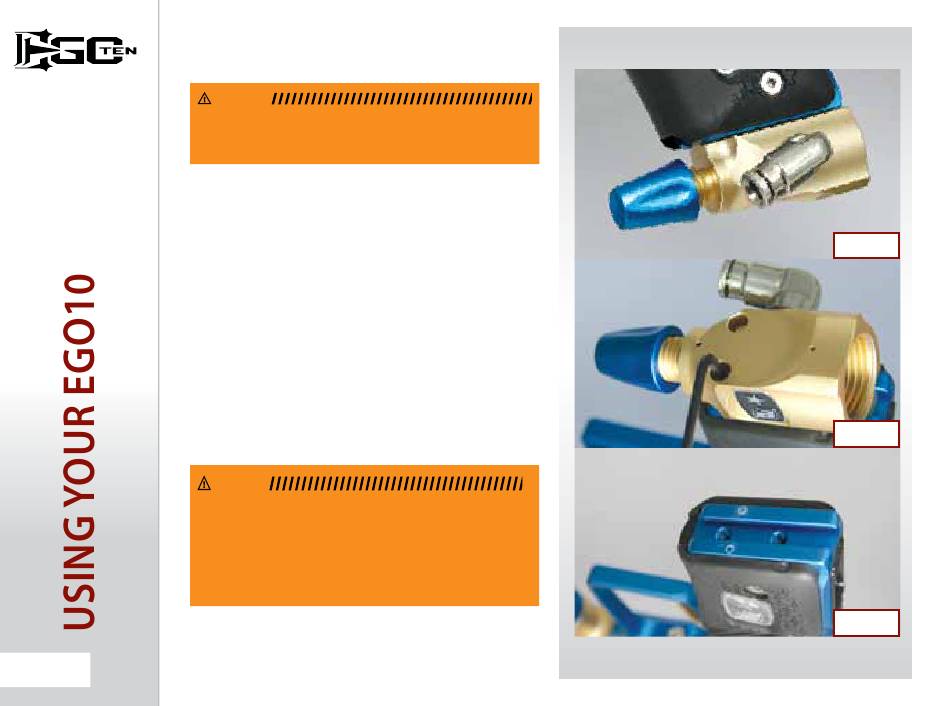

Firstly disconnect the macroline hosing from the elbow
attached to the OOPS at the base of the grip frame
(see fiGure 4.4).
Unscrew the On/Off knob completely from the OOPS and
using a 3/32" hex key turn the two screws on the bottom
of the OOPS in a counter clockwise direction so that the
OOPS can be removed from the rail by sliding it backwards
(see fiGure 4.5).
As well as the integrated slide rail at the base of the Ego10's
grip frame, there are also two 10-32 UNF threaded screw
holes which will accept all standard bottom line screws
(see fiGure 4.6).
Attach the air system of your choice, taking care to ensure
that you use the correct length and size of hosing to
accommodate your requirements.
WARNING
before attacHinG anY fiXed air sYstem, Place
attacHinG screW in tHe air sYstems desiGnated
slide rail and measure ProtrudinG screW
lenGtH. screW lenGtH must not Protrude more
tHan 10mm/0.40" otHerWise tHe eGo10 circuit
20.
board Will become damaGed.
