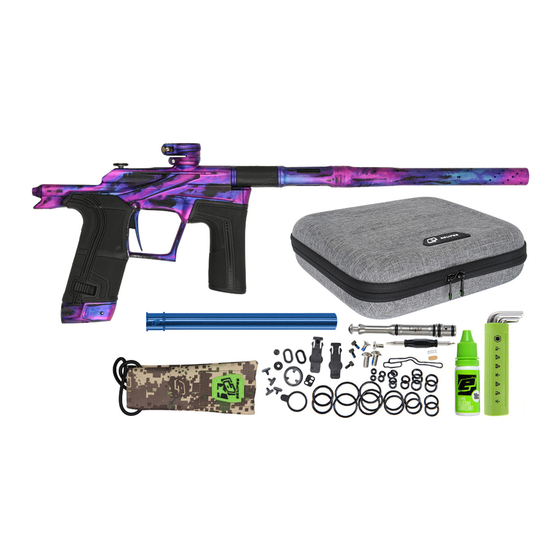

- Page 1 WORKSHOP MANUAL .68CAL PLANET ECLIPSE: EGO LV2...
- Page 2 WARNING READ CAREFULLY BEFORE USE THE PLANET ECLIPSE LV2 IS NOT A TOY. PAINTBALL SAFETY RULES MUST BE FOLLOWED AT Never allow pressurised gas to come into contact with any part of your body. ALL TIMES. Alwaysremovethefirststageregulator and relieve all residual gas pressure from the LV2 before Careless or improper use of the LV2, including failure to follow instructions and warnings within this disassembly.
-
Page 3: Table Of Contents
BOLT ‘POPS UP’ WHEN FIRING SOLENOID/MANIFOLD LEAK CONSTANT HIGH VELOCITY CONSTANT LOW VELOCITY INLINE REGULATOR LEAK BREAKING PAINT IN THE BREECH INCONSISTANT SHOT TO SHOT FPS INEFFICIENT / ‘AIRY’ SOUND TO SHOT PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL EGO LV2 © 2024 PLANET ECLIPSE LTD... -
Page 4: Lv2 Bolt And Rammer Assembly
SPRING BOLT INSERT BOLT PIN BOLT TIP 14X2 NBR70 O-RING RAMMER CAP 013 NBR70 O-RING 011 NBR70 O-RING 013 NBR70 O-RING RAMMER BUMPER 010 NBR70 O-RING BOLT RAMMER PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL EGO LV2 © 2024 PLANET ECLIPSE LTD... -
Page 5: Hp And Lp Regulator Assemblies
011 NBR70 O-RING 008 NBR70 O-RING (INTERNAL) PURGE SPRING SL4 ADJUSTER TOP 011 NBR70 O-RING SL3 REG SEAL 014 NBR70 O-RING SL4 ADJUSTER SCREW PURGE POPPET REG BODY PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL EGO LV2 © 2024 PLANET ECLIPSE LTD... -
Page 6: Solenoid Assembly
MANIFOLD TO BODY GASKET MANIFOLD LP HOSE 4X1 NBR70 O-RING 4X1 NBR70 O-RING LP BARB SOLENOID TO MANIFOLD GASKET M2.5X5 CAP HEAD SCREW LP BARB SOLENOID M1.7X16 CROSS PAN HEAD SCREW PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL EGO LV2 © 2024 PLANET ECLIPSE LTD... -

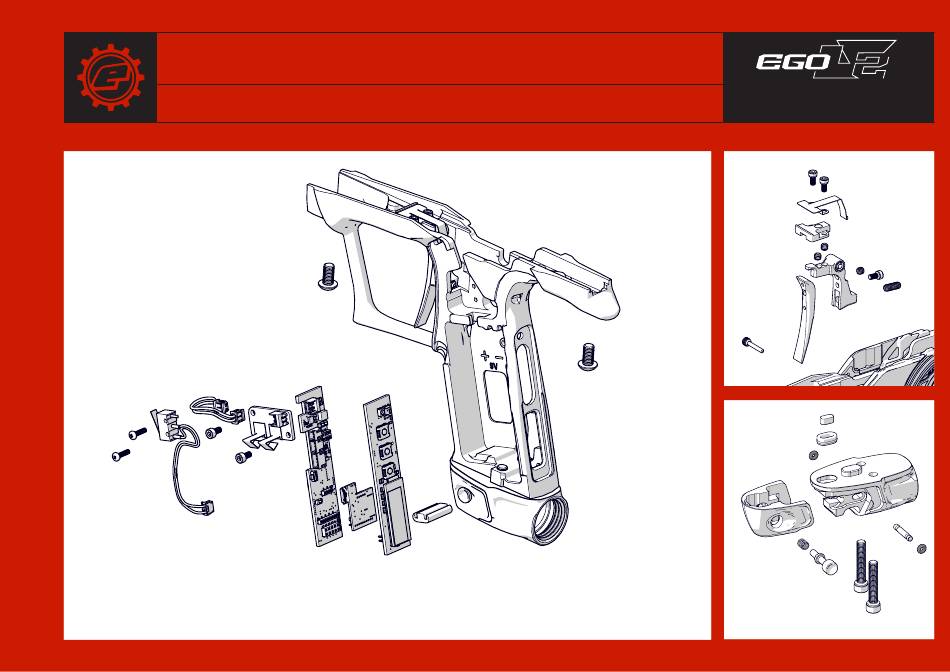

Page 7: Frame Sub-Assembly
M2X8 BUTTON HEAD SCREW #10-32 X 0.375 SOCKET BUTTON HEAD SCREW CIRCUITBOARD SPACER M2.5X5 CAP HEAD SCREW MME LV2 GUI BOARD MME LV2 COMMS BOARD MME LV2 MAIN BOARD PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL EGO LV2 © 2024 PLANET ECLIPSE LTD... - Page 8 M2.5X5 CAP HEAD SCREW TRIGGER SPRING MAGNET CARRIER #6-32 X 0.125 SOCKET GRUB SCREW M2.5X5 CAP HEAD SCREW TRIGGER BODY #6-32 X 0.5 SOCKET GRUB SCREW TRIGGER SHOE TRIGGER PIN PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL EGO LV2 © 2024 PLANET ECLIPSE LTD...
-
Page 9: Valve Assembly
5X1 NBR70 O-RING REGULATOR PLUG REGULATOR GASKET #10-32 X 0.375 SOCKET BUTTON HEAD SCREW REGULATOR HOUSING 3X1 NBR70 O-RING 017 NBR70 O-RING INLET MANIFOLD VALVE CHAMBER RETAINING BOLT VALVE CAP PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL EGO LV2 © 2024 PLANET ECLIPSE LTD... -
Page 10: Pops Assembly
004 NBR70 O-RING POPS INSERT POPS PIN 005 NBR90 O-RING POPS CROSS PIN 004 NBR70 O-RING POPS BONNET LATCH SPRING LATCH BUTTON #10-32 X 1 SOCKET CAP HEAD SCREW PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL EGO LV2 © 2024 PLANET ECLIPSE LTD... -
Page 11: Feedneck Assembly
FEEDNECK ASSEMBLY 006 NBR70 O-RING FEED SWIVEL FEED LEVER CLAMPING FEED SCREW 004 NBR70 O-RING FEED INSERT FEEDNECK THUMB WHEEL #10-32 X 0.5 SOCKET CAP HEAD SCREW PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL EGO LV2 © 2024 PLANET ECLIPSE LTD... -
Page 12: Breech Sensor (Bs) Assembly
BREECH SENSOR (BS) ASSEMBLY DETENT (ACTIVE) BS UNIT BS COVER DETENT (SPARE) BS CLIP PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL EGO LV2 © 2024 PLANET ECLIPSE LTD... -
Page 13: Service Indicator - Lubrication Required
010 NBR70 O-RING 013 NBR70 O-RING RAMMER BUMPER BOLT TIP 013 NBR70 O-RING 010 NBR70 O-RING 011 NBR70 O-RING BOLT 010 NBR70 O-RING RAMMER INSERT BOLT RAMMER BODY PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL EGO LV2 © 2024 PLANET ECLIPSE LTD... - Page 14 011 NBR70 O-RING 013 NBR70 O-RING 008 NBR70 O-RING HPR SEAL 014 NBR70 O-RING PURGE POPPET 011 NBR70 O-RING REGULATOR BODY *In addition to the ‘lubrication’ guide on previous page PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL EGO LV2 © 2024 PLANET ECLIPSE LTD...
-
Page 15: Service Indicator - Service Required
(R) = LUBRICATE VALVE GUIDE (EXHAUST PORT) 013 NBR70 O-RING VALVE GUIDE (SEALING FACE) 017 NBR70 O-RING EXHAUST VALVE *In addition to the ‘lubrication’ guide on page 10 PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL EGO LV2 © 2024 PLANET ECLIPSE LTD... -
Page 16: Leaks Down The Barrel
CLEAN AND LUBRICATE / CHANGE HIGHLIGHTED SEALS AND FACES (C) = COMMON FAULT (R) = RARE FAULT EXHAUST VALVE VALVE GUIDE (SEALING FACE) 013 NBR70 O-RING LV2 BODY PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL EGO LV2 © 2024 PLANET ECLIPSE LTD... - Page 17 1. DEGAS THE MARKER. 2. SLIDE BACK THE BOLT AND ENGAGED RAMMER. THE BOLT WILL CYCLE AS THE SOLENOID RESETS IN THE NEXT STEP. 3. REGAS THE MARKER PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL EGO LV2 © 2024 PLANET ECLIPSE LTD...
-
Page 18: Marker Fires But Bolt Does Not Move
MARKER FIRES BUT BOLT DOES NOT MOVE CLEAN AND LUBRICATE HIGHLIGHTED SEALS AND FACES LIFT UP BOLT PIN, ALIGN BOLT ‘GROOVE’ WITH ‘DOTS’ ON THE LV2 BODY, PUSH DOWN AND ENGAGE THE BOLT PIN. PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL EGO LV2 © 2024 PLANET ECLIPSE LTD... -
Page 19: Bolt 'Pops Up' When Firing
BOLT ‘POPS UP’ WHEN FIRING CLEAN AND LUBRICATE HIGHLIGHTED SEALS AND FACES CHECK THE LEVER IS ASSEMBLED IN THE BODY OF THE LV2 AS ILLUSTRATED BELOW. PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL EGO LV2 © 2024 PLANET ECLIPSE LTD... -
Page 20: Solenoid/Manifold Leak
CLEAN AND LUBRICATE / CHANGE HIGHLIGHTED SEALS AND FACES (C) = COMMON FAULT (R) = RARE FAULT MANIFOLD-BODY GASKET MANIFOLD BODY (GASKET CHANNEL ON BOTH SIDES) LV2 BODY 4X1 NBR70 O-RING SOLENOID-MANIFOLD GASKET SOLENOID PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL EGO LV2 © 2024 PLANET ECLIPSE LTD... -
Page 21: Constant High Velocity
CONSTANT HIGH VELOCITY CLEAN AND LUBRICATE / CHANGE HIGHLIGHTED SEALS AND FACES (C) = COMMON FAULT (R) = RARE FAULT HPR SEAL LPR SEAL PURGE POPPET HPR PISTON LPR PISTON PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL EGO LV2 © 2024 PLANET ECLIPSE LTD... -
Page 22: Constant Low Velocity
CLEAN AND LUBRICATE / CHANGE HIGHLIGHTED SEALS AND FACES MANIFOLD-BODY GASKET INCORRECTLY SEATED LP HOSE CRUSHED BETWEEN FRAME AND BODY VAVLE GUIDE EXHAUST PORT BLOCKED BOLT INSERT INSTALLED INCORRECTLY, CORRECT ORIENTATION SHOWN BELOW PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL EGO LV2 © 2024 PLANET ECLIPSE LTD... -
Page 23: Inline Regulator Leak
013 NBR70 O-RING GASKET 014 NBR70 O-RING FRAME HPR PISTON 011 NBR70 O-RING 007 NBR70 O-RING 013 NBR70 008 NBR70 O-RING O-RING 011 NBR70 O-RING 014 NBR70 O-RING LV2 BODY PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL EGO LV2 © 2024 PLANET ECLIPSE LTD... -
Page 24: Breaking Paint In The Breech
BREAKING PAINT IN THE BREECH CLEAN AND LUBRICATE / CHANGE HIGHLIGHTED SEALS AND FACES (C) = COMMON FAULT (R) = RARE FAULT BOLT TIP DETENT PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL EGO LV2 © 2024 PLANET ECLIPSE LTD... -
Page 25: Inconsistant Shot To Shot Fps
(R) = RARE FAULT 014 NBR70 O-RING HPR SEAL 008 NBR70 O-RING HPR PISTON POPS BODY LPR SEAL 013 NBR70 O-RING 008 NBR70 O-RING FRAME FLITER (BLOCKED) LPR PISTON PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL EGO LV2 © 2024 PLANET ECLIPSE LTD... -
Page 26: Inefficient / 'Airy' Sound To Shot
INEFFICIENT / ‘AIRY’ SOUND TO SHOT CLEAN AND LUBRICATE / CHANGE HIGHLIGHTED SEALS AND FACES DWELL VALUE TOO HIGH LPR SET TOO HIGH SFR SET INCORRECTLY SOLENOID-BODY GASKET INSTALLED INCORRECTLY PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL EGO LV2 © 2024 PLANET ECLIPSE LTD... - Page 27 Warren, RI, 02885, USA Manchester, M17 1GA, England Düsseldorf 40233, Germany Call: +1 401 247 9061 Call: +44(0) 161 872 5572 Call +49 (0) 211 210 230-0 info.usa@planeteclipse.com info.europe@planeteclipse.com planeteclipse.com/contact 15013-WM001-C1 PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL EGO LV2 © 2024 PLANET ECLIPSE LTD...
