(continued)
lubricate all of the seals on the rammer shaft and inside
the rammer cap and replace the rammer into the rear of
the Ego10 body as shown in
(see fiGure 12.7).
note: DO NOT USE ECliPSE grEASE ON ThE rAMMEr.
ONly USE lighT PAiNTgUN Oil, wE rECOMMEND ECliPSE
gUN Oil.
replace the rammer cap, using the 3/16" hex key to secure
it into the Ego10 body
(see fiGure 12.8).
note: DO NOT OvEr TighTEN ThE rAMMEr CAP SCrEw.
Noting the position of the rammer in the Ego10 body
fiGure 12.9),
replace the bolt and locate the bolt pin into
the designated groove in the rammer shaft using the dot
on the bolt as a reference guide
note: ThE NUMbEr OF O-riNgS ON ThE rAMMEr MAy
vAry ACCOrDiNg TO ThE MODEl OF EgO10 ThAT yOU
hAvE.
WARNING
WarninG: if You are at all unsure of PerforminG
tHe maintenance Procedure Please contact
Your nearest ecliPse serVice centre. (see PaGes
72-73)
(see
(see fiGure 12.10).

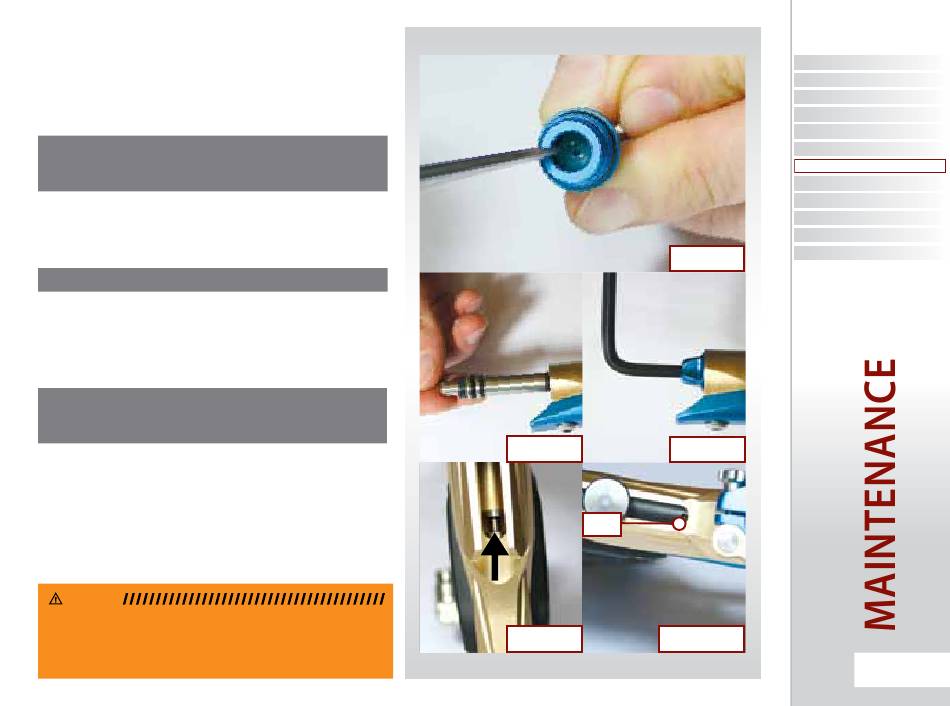

fiG 12.6
fiG 12.7
fiG 12.8
dot
fiG 12.9
fiG 12.10
