tHe actual
rate of fire

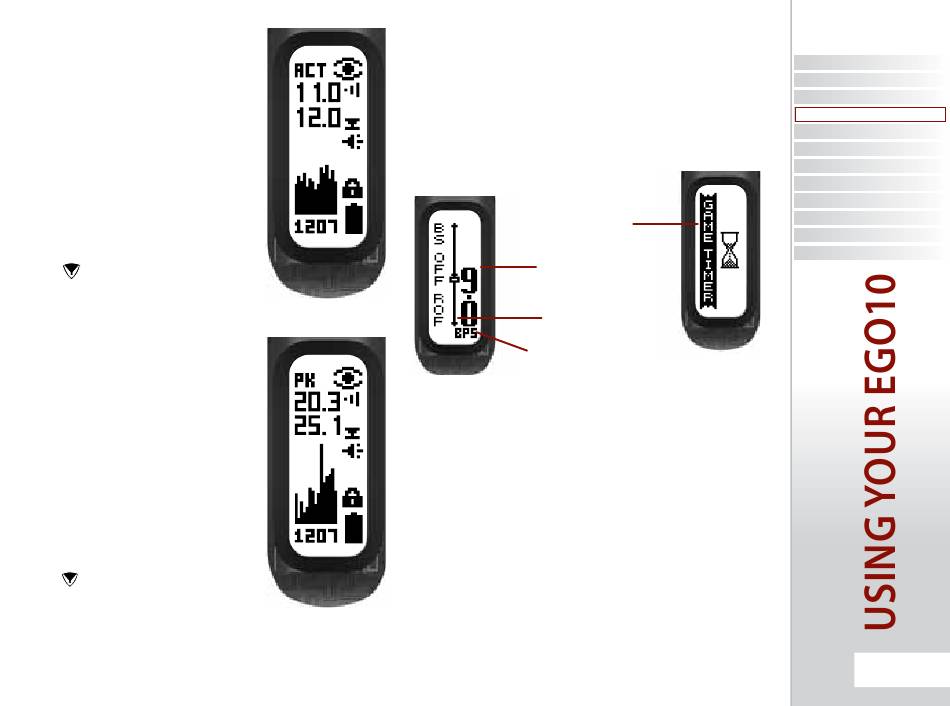

when the actual rOF is selected
for display the run screen will look
something like the screen to the right.
The value displayed in the top left of
the screen represents the number of
full cycles completed in a second - the
actual rate of fire over that second.
The graph below this number shows
the actual rates of fire achieved over
time where each bar represents the
amount of pulls in that second.
To reset the maximum, press and hold
the button for 1 second.
tHe PeaK rate
of fire
when the peak rOF is selected for
display the run screen will look
something like the screen to the right,
which differs from the display of the
actual rOF by the inclusion of the
indicator 'PK' . The value displayed in
the top left of the screen represents
the maximum peak rate of fire that
has been recorded. The graph below
this number shows the peak rates of
fire achieved over time.
To reset this maximum, press and hold
the button for 0.5 seconds.
The peak rOF is typically higher than
the actual rOF as it is much easier to fire two shots in quick
succession than it is to maintain a string over a longer
period of time.
tHe menu sYstem
behind the run screen is a structured menu system
comprised of two layers of menus. Each menu contains a
number of menu items and each menu item can either be
a parameter or a branch to another menu. branches have
an animated graphic on the right of the display, whereas
parameters have their current value
TYPICAL
BRANCH
TYPICAL
PARAMETER
TYPICAL
RANGE BAR
TYPICAL
PARAMETER
UNIT
On parameter screens a range bar will be displayed where
there is a large scale of adjustability in that parameter. The
current parameter value is displayed as a box on the range
bar which is used to indicate the range of adjustability in
the parameter value.
At the bottom of the parameter screen the unit for that
parameter will be displayed. Some parameters will not
have units, such as on or off parameters. For a detailed list
of which parameters have units, and what they stand for,
please see the Menu Tree on pages 30-33.
The menu structure is shown in the following pages.
