user interface
The Ego10 has a simple user interface through which all
aspects of it's electronic control system can be monitored
and adjusted by means of the three pushbuttons and
graphical lCD which comprise the navigation console.
run screen laYout

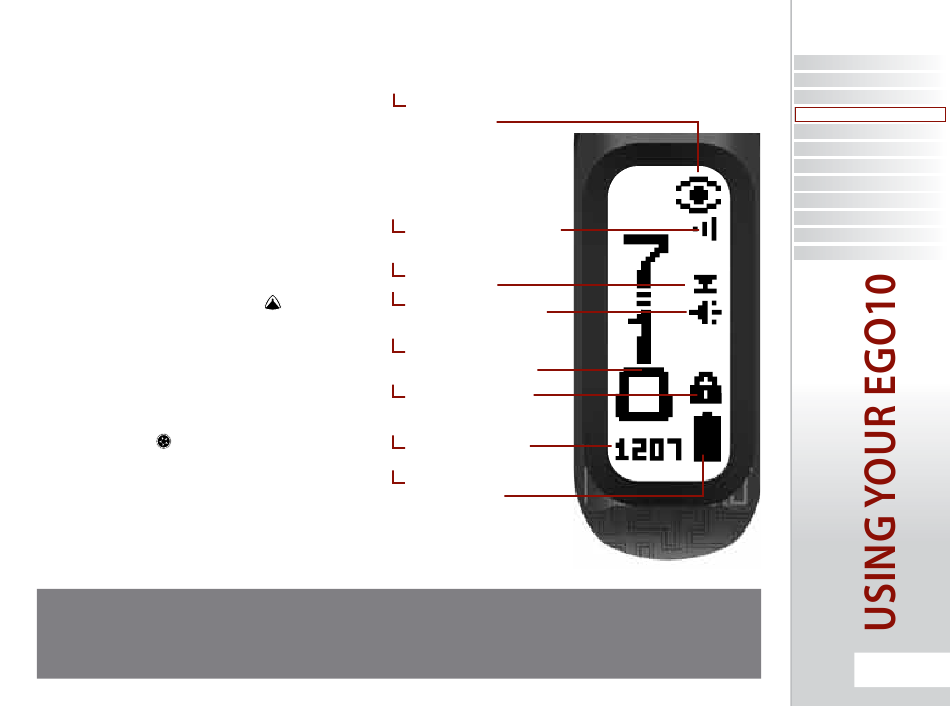

The root of the user interface is the run screen. This screen
is the one most often displayed and provides the user with
essential feedback on the state of the Ego10. A typical run
screen is shown on the right.
On the left of the screen is a display option that is user
selectable from by briefly pressing the
navigation console.
> a Game timer
> a sHot counter
> an actual rate of fire indicator
> a PeaK rate of fire indicator
briefly pressing the button will replace the display
option with the name of the currently selected preset (see
page 36).
On the right of the screen are a number of icons, each of
which provides graphical indication on different parts of
the Ego10 control electronics:
note: ThE lAyOUT OF ThE rUN SCrEEN iS COrrECT AT TiME OF PriNTiNg. hOwEvEr NEwEr vErSiONS OF ThE EgO10
SOFTwArE MAy hAvE A DiFFErENT lAyOUT OF ThE rUN SCrEEN FrOM whAT iS PriNTED iN ThiS MANUAl.
yOU MAy FiND SOME iCONS hAvE bEEN ADDED Or rEMOvED ENTirEly. iF yOU ArE UNSUrE AbOUT ANy iCONS whiCh DO
NOT FEATUrE iN ThE MANUAl CONTACT yOUr lOCAl DEAlEr/SErviCE CENTrE Or PlANET ECliPSE DirECTly.
breaK beam sensor sYstem
indicator
auX out indicator
triGGer detection
indicator
button on the
sound indicator
user selectable
disPlaY oPtion
locK indicator
clocK disPlaY
(selected models onlY)
batterY leVel
indicator
