Example 2: DriveLogix5730
Controller to
DriveLogix5730 Controller
ControlNet
Example 1: Total Connections Required by DriveLogix1
The following table calculates the connections used in this example.
Connection:
DriveLogix1 controller to 3 local I/O modules
rack-optimized connection for the DIN rail
direct connection for each I/O module
DriveLogix1 controller to remote 1794-ACNR15
DriveLogix1 to 4 remote I/O modules (through 1794-ACNR15)
all I/O modules configured as direct connection
no connection to the 1794-ACNR15
If you configured the remote I/O modules as rack-optimized, you would
only need a rack-optimized connection to the 1794-ACNR15, reducing the
above example by 3 connections.

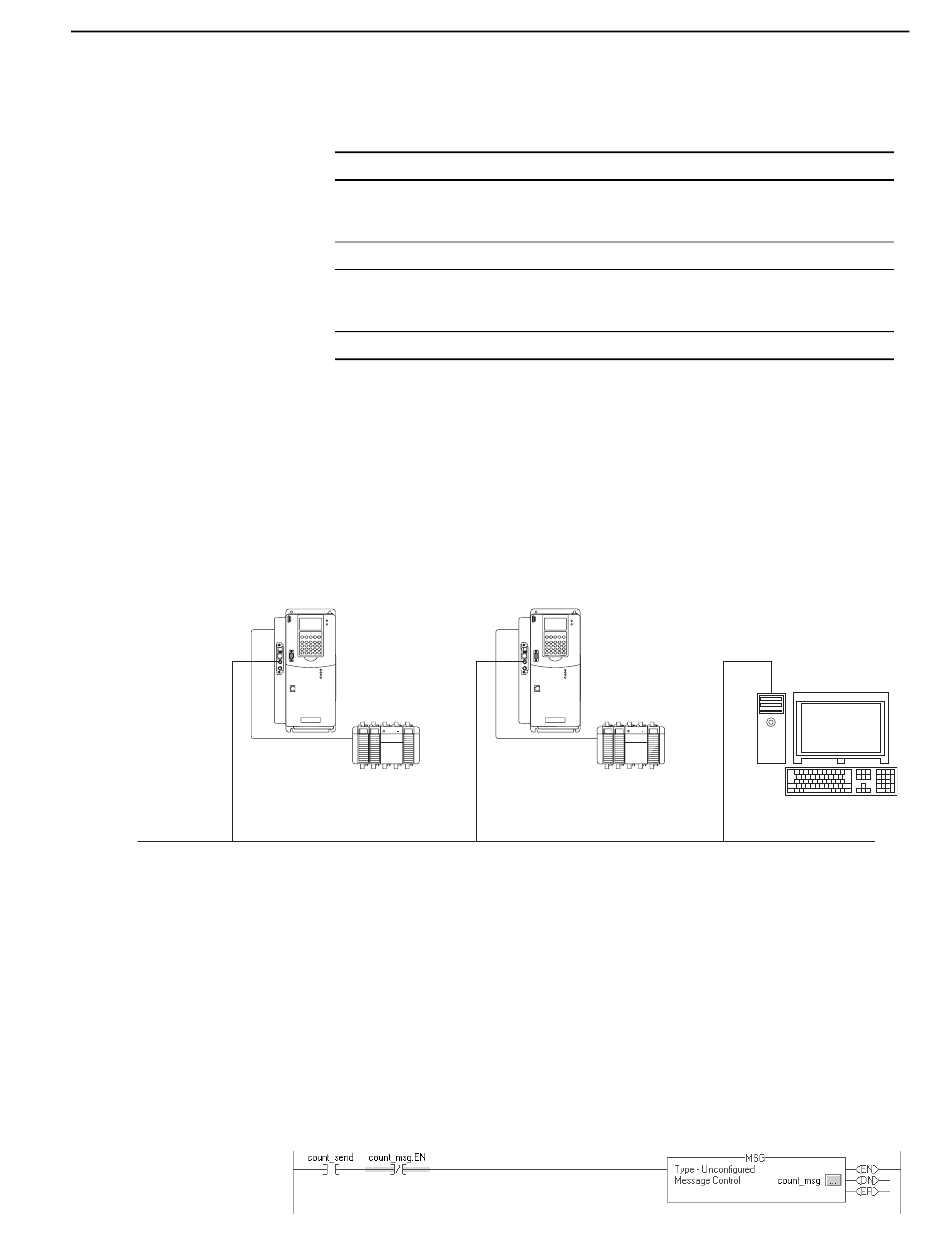

In the following example, one DriveLogix5730 controller communicates
with another DriveLogix5730 controller over ControlNet. Each DriveLogix
controller has its own local I/O.
DriveLogix5730 Controller
(DriveLogix1)
Example 2: Sending a MSG Instruction
To send a MSG from DriveLogix1 to DriveLogix2:
1. For DriveLogix1, create a controller-scoped tag and select the
MESSAGE data type.
2. Enter a MSG instruction.
In this example logic, a message is sent when a specific condition is met.
When count_send is set, the ladder logic sends the count_msg MSG.
Communicating with Devices on an ControlNet Link
Amount:
1
3
1
4
total connections used: 9
DriveLogix5730 Controller
(DriveLogix2)
7-19
workstation
