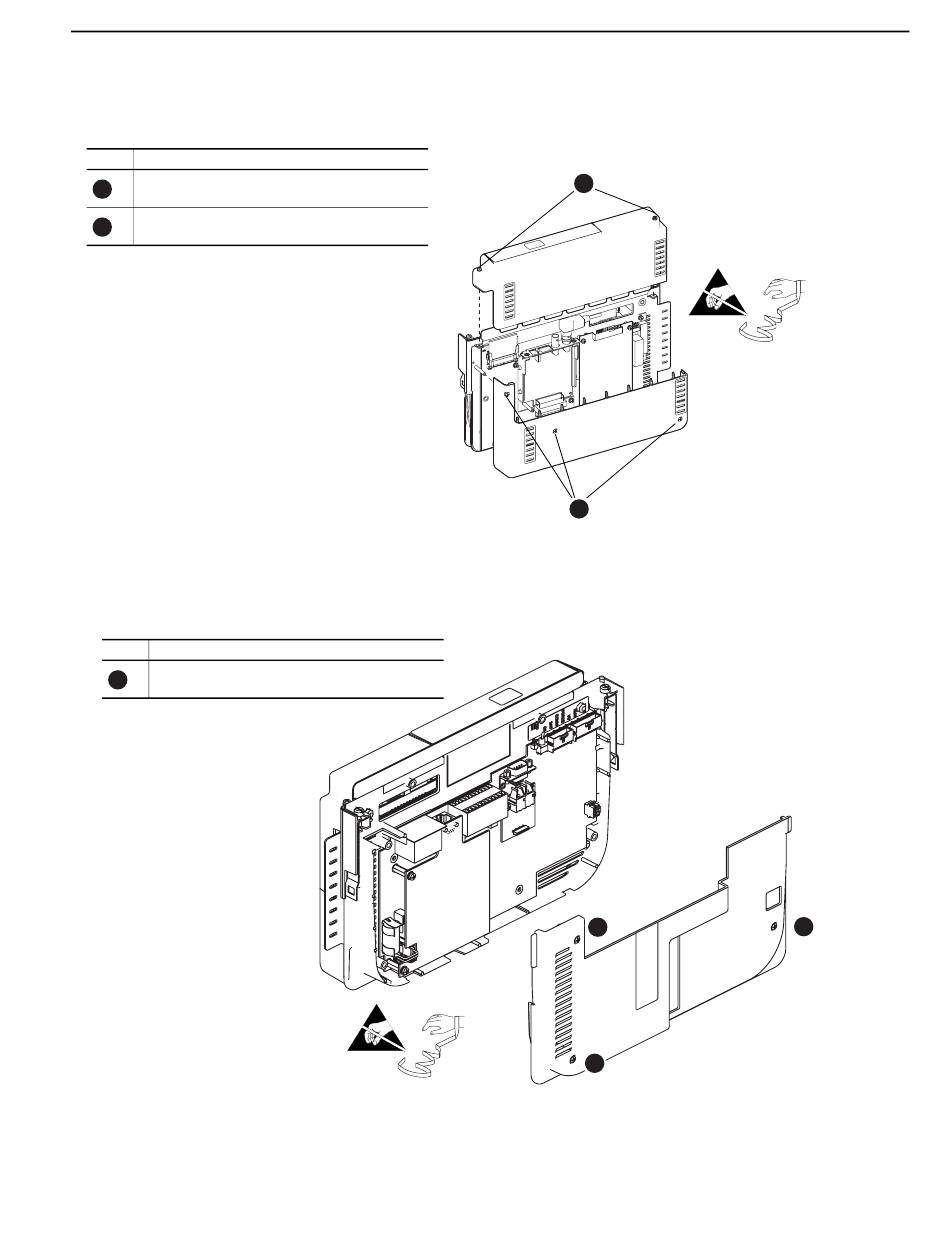

Removing the Outside
Covers
Task Description
Loosen screws on face of front cover and remove
A
the cover
Loosen screws on side of rear cover and remove
B
the cover

Removing the Inside Cover

Task Description
Loosen screws on face of front cover and remove
A
the cover
A
B
=
Access Procedures
Proper tightening torque for
reassembly is 7-10 lb.-in.
=
Proper tightening torque for
reassembly is 7-10 lb.-in.
A
A
