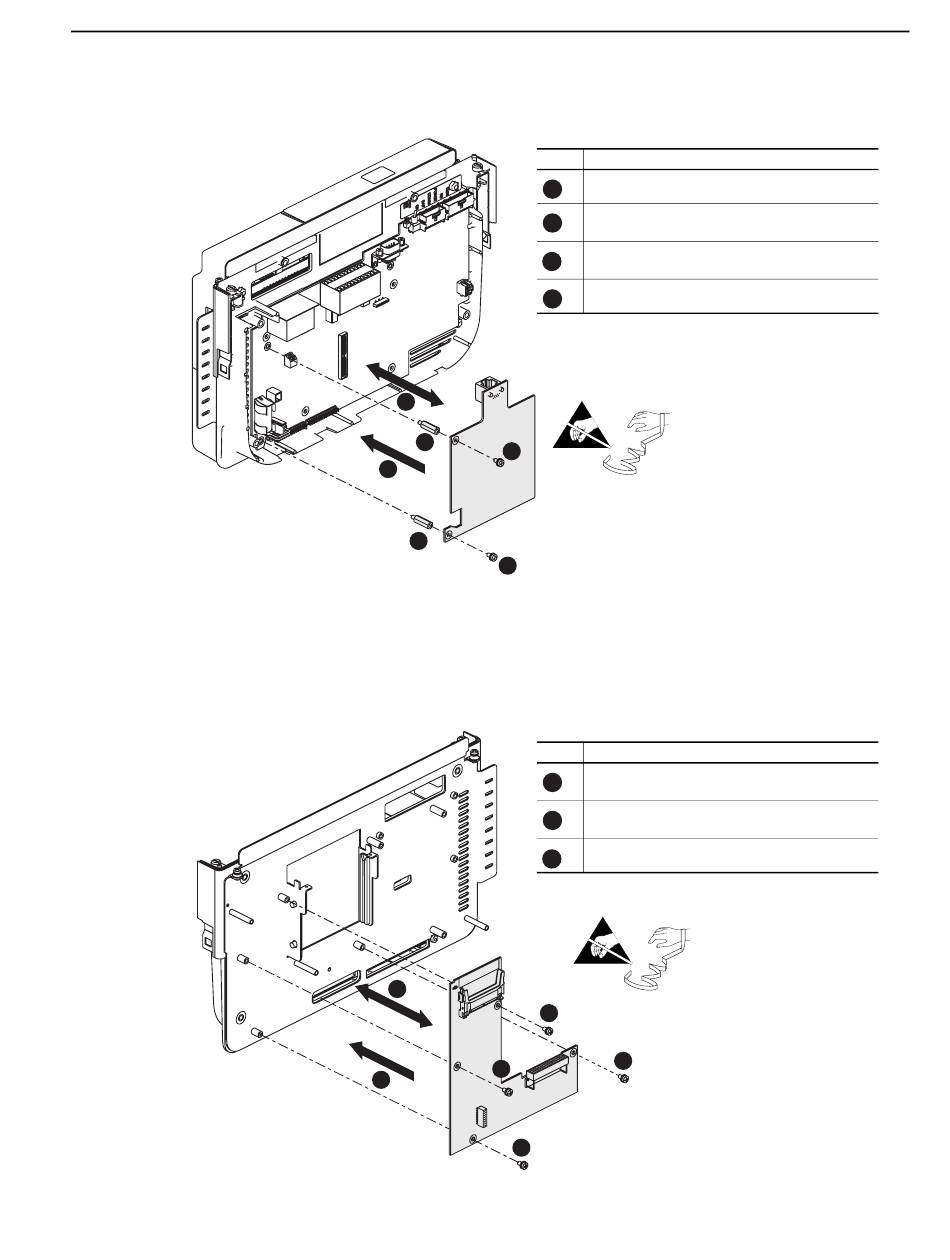

Installing the Embedded
EtherNet/IP Option Board
Installing the
DriveLogix5730 Expansion
Board
Task
A
B
C C
D
B
A
D
C
A
D
Task
A
B
C C
A
C
C
B
C
Access Procedures
Description
Install and tighten standoffs (7-10 lb.-in.)
Align connector on Embedded EtherNet/IP Option
Board with connector on Main Control Board
Place Embedded EtherNet/IP Option Board on the
Main Control Board
Install and tighten screws (7-10 lb.-in.)
=
Description
Align connector on DriveLogix5730 Expansion
Board with connector on Main Control Board
Place DriveLogix5730 Expansion Board on the
Main Control Board
Install and tighten screws (7-10 lb.-in.)
=
C
B-7
