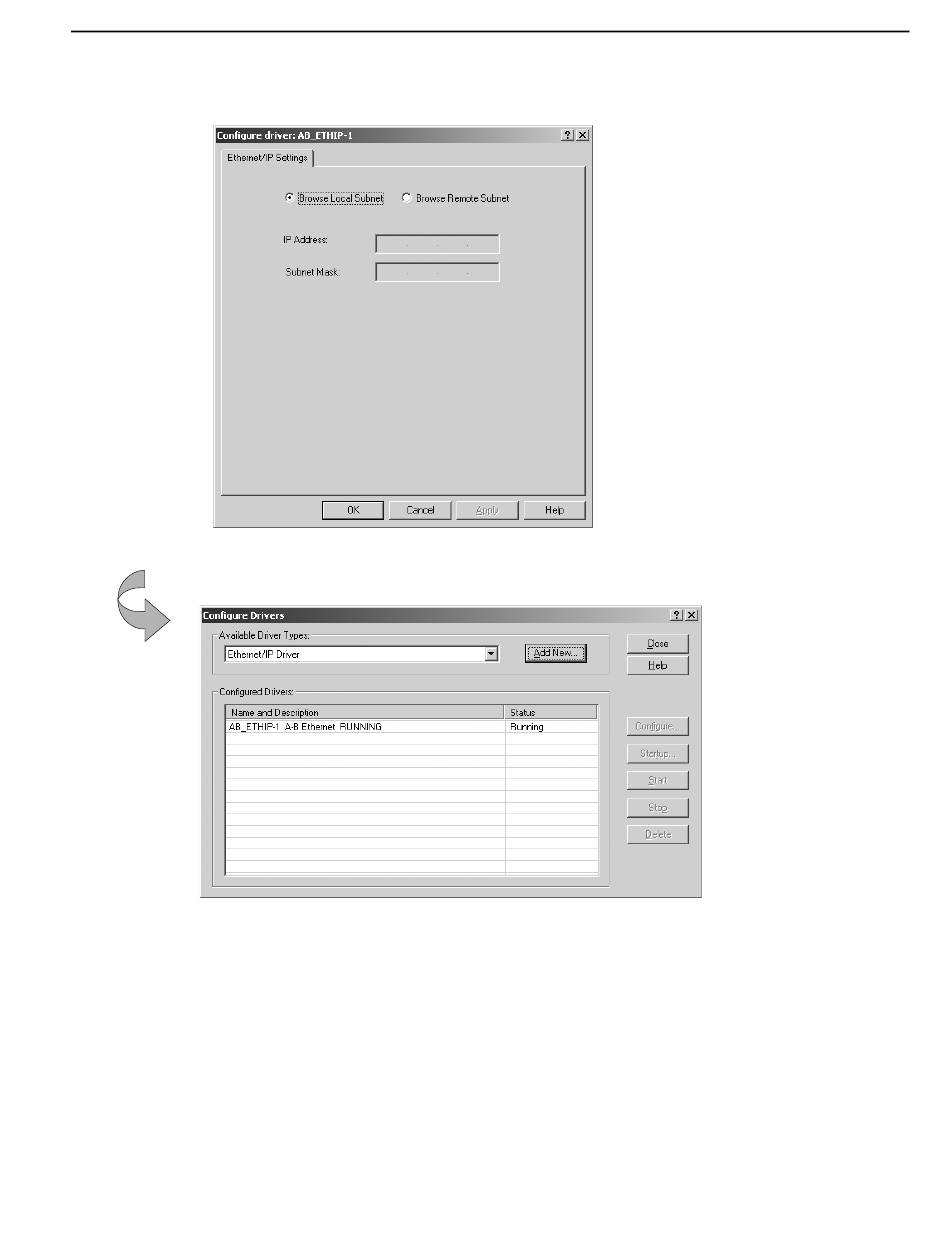

Select where the EtherNet/IP devices reside. The software locates valid IP addresses.
5.
The driver is now available and you can select the EtherNet/IP port in RSLogix 5000.
Controller Connections
Over EtherNet/IP
A Logix system uses a connection to establish a communication link
between two devices. Connections can be:
• controller to distributed I/O or remote communication modules
• produced and consumed tags
• messages
You indirectly determine the number of connections the controller uses by
configuring the controller to communicate with other devices in the system.
Communicating with Devices on an EtherNet/IP Link
Click OK.
6-11
