7-18 Communicating with Devices on an ControlNet Link
Example 1: DriveLogix
Controller and Remote I/O
Determining the API
The API (actual packets per interval) is related to the RPI for the connection
and the NUT of the network. Use this table to select the API to enter in the
above worksheet:
If:
RPI ≥ NUT and RPI < 2∗NUT
RPI ≥ 2∗NUT and RPI < 4∗NUT
RPI ≥ 4∗NUT and RPI < 8∗NUT
RPI ≥ 8∗NUT and RPI < 16∗NUT
RPI ≥ 16∗NUT and RPI < 32∗NUT
RPI ≥ 32∗NUT and RPI < 64∗NUT
RPI ≥ 64∗NUT and RPI < 128∗NUT
RPI ≥ 128∗NUT

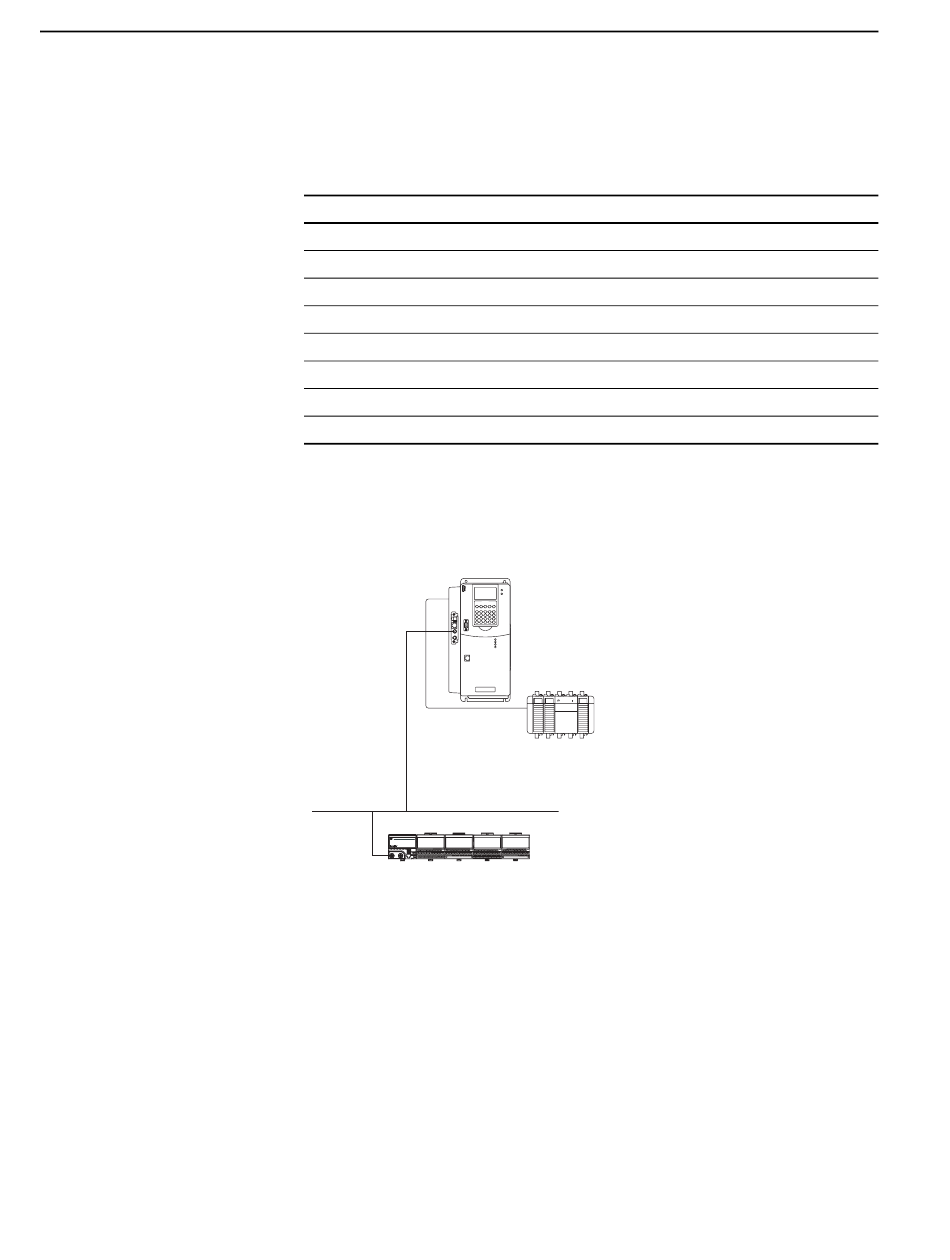

In the following example, one DriveLogix5730 controller controls remote
I/O through a 1794-ACN15 module.
ControlNet
1794-ACN with remote I/O
(Remote1)
Example 1: Controlling Remote Devices
This example has DriveLogix1 controlling the I/O connected to the remote
1794-ACN15 module. The data the DriveLogix controller receives from the
remote I/O modules depends on how you configure the remote I/O modules.
You can configure each module as a direct connection or as rack optimized.
One chassis can have a combination of some modules configured as a direct
connection and others as rack optimized.
Enter this value for the API:
NUT
2∗NUT
4∗NUT
8∗NUT
16∗NUT
32∗NUT
64∗NUT
128∗NUT
DriveLogix5730 Controller
(DriveLogix1)
