Placing and Configuring the
Drive
1.

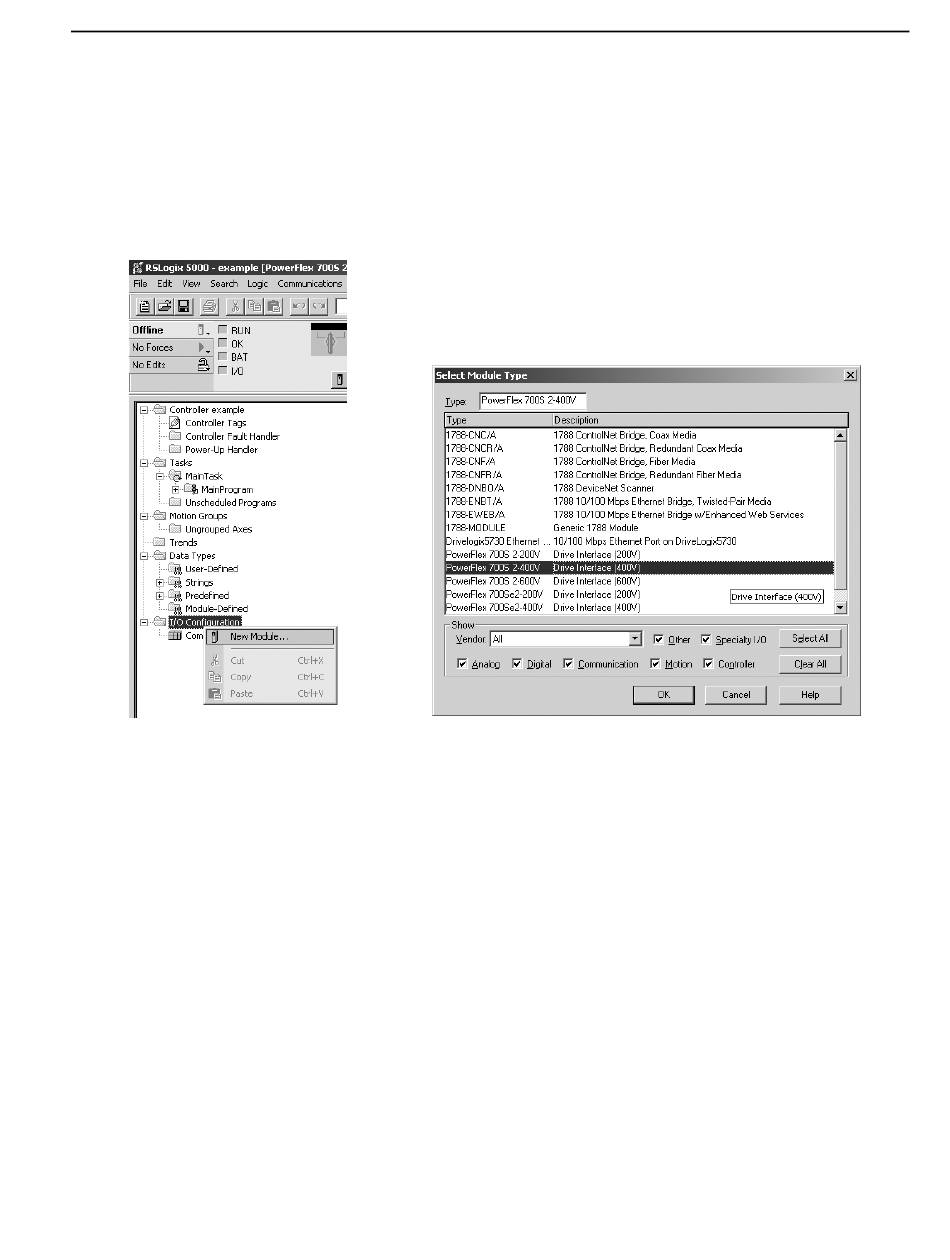

In the Controller Organizer, select the I/O Configuration folder. Right-click
the selected folder and select New Module.
When you create a project for the DriveLogix controller in RSLogix 5000,
the Controller Organizer automatically displays the local DIN rail for Flex
I/O. You must add the PowerFlex 700S drive to the configuration, in a
manner similar to adding an I/O module. The Controller Organizer
automatically places the drive in slot two.
2.
Select the drive (PowerFlex 700S 2-400V in this example).
Important: You must select the correct voltage rating for the drive, when
adding the drive. You can find this on the drive data nameplate.
Placing and Configuring the Drive
2-3
