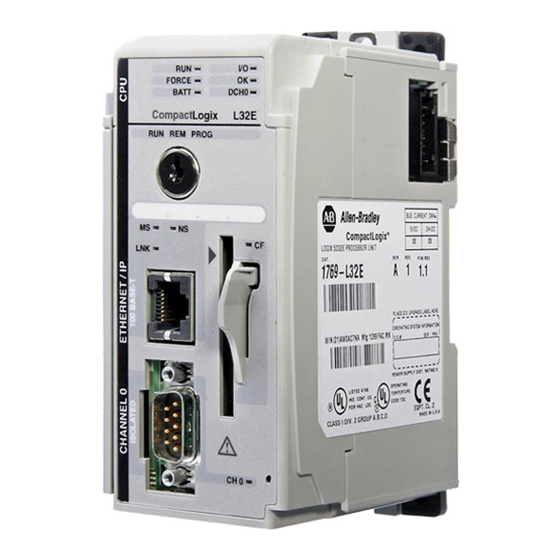

- Page 1 Programming Manual Logix 5000 Controllers Data Access 1756 ControlLogix, 1756 GuardLogix, 1769 CompactLogix, 1769 Compact GuardLogix, 1789 SoftLogix, 5069 CompactLogix, 5069 Compact GuardLogix, Studio 5000 Logix Emulate...
- Page 2 If this equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the use or application of this equipment.
-
Page 3: Summary Of Changes
None in this release. New or enhanced features Subject Reason Tag type service parameters for structure Added link to the Rockwell Automation Type Encoding of Logix page 38 Structures in CIP Data Table R/W document. Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... -
Page 5: Table Of Contents
Read Modify Write Tag Service Error Codes ......... 34 Multiple Service Packet Service ............35 Example ................... 35 Logix Data Structures ................... 36 Work with Data Structures ..............37 Tag type service parameters for structure ..........38 Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... - Page 6 Example 10 (Symbolic Segment Addressing Method) with BOOLs ..68 Access User-Defined Structures ..............69 Example 1 ....................70 Example 2 ....................70 Example 3 ....................71 Example 4 ....................71 Example 5 ....................72 Example 6 ....................73 Rockwell Automation Publication 1756-PM020F-EN-P - January 2019...
- Page 7 4F, FNC=AA) ..................91 SLC Protected Typed Logical Read with 2 Address Fields (CMD=0F, 4F; FNC=A1) ..................91 SLC Protected Typed Logical Write with 2 Address Fields (CMD=0F, 4F; FNC=A9) ..................92 Index Rockwell Automation Publication 1756-PM020F-EN-P - January 2019...
-
Page 9: Studio 5000 Environment
The Studio 5000® environment is the foundation for the future of Rockwell Automation® engineering design tools and capabilities. The Studio 5000 environment is the one place for design engineers to develop all elements of their control system. -
Page 10: Legal Notices
Corresponding Source code for open source packages included in this product are located at their respective web site(s). Alternately, obtain complete Corresponding Source code by contacting Rockwell Automation via the Contact form on the Rockwell Automation website: http://www.rockwellautomation.com/global/about-us/contact/contact.page Please include "Open Source"... - Page 11 Rockwell Automation is not responsible for these intervening factors. The instructions in this document do not cover all the details or variations in...
- Page 12 Preface Online Support — http://www.rockwellautomation.com/support/ Rockwell Automation Publication 1756-PM020F-EN-P - January 2019...
-
Page 13: Cip Services
Depending on the needs of the application, create additional structures, which are referred to as user-defined structures. Array. A sequence of elements, each of which is the same data type. • Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... -
Page 14: Atomic Data Type Sizes
Data type, which defines the organization of the data. • See CIP data types for more information. In the Logix Designer application, version 21.00.00 and later, and in RSLogix 5000 software, version 18.00.00 and later, external access to Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... -
Page 15: Tag Type Service Parameter
SINT (n = 0-7). SINT 0x00C2 1 byte 0x00C3 2 bytes DINT 0x00C4 4 bytes REAL 0x00CA 4 bytes DWORD 0x00D3 4 bytes LINT 0x00C5 8 bytes bytes = Multi-byte data values are transmitted low-byte first Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... -
Page 16: Analysis
8-bit Class ID 0x20 Value 16-bit Class ID 0x21 High Segment Type Value Byte Order Representation of Instance ID Value (low byte first) … 8-bit Instance ID 0x24 Value 16-bit Instance ID 0x25 High Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... -
Page 17: Symbolic Segments
Indicates to the object referenced in the request path to perform a task. The CIP or the device manufacturer define these tasks. Most of the services covered in this manual are defined by the Rockwell Automation vendor-specific objects, and are not found in the CIP Networks Library. -
Page 18: Services Supported By Logix 5000 Controllers
Logix 5000 Controllers on tags in the controller using symbolic addressing: Read Tag Service (0x4c) • • Read Tag Fragmented Service (0x52) Write Tag Service (0x4d) • • Write Tag Fragmented Service (0x53) Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... - Page 19 CIP Read Data CIP Data Table Read Read Tag Fragmented Service Read Data Fragmented Format Write Tag Service CIP Write Data CIP Data Table Write Write Tag Fragmented Service Write Data Fragmented Format Rockwell Automation Publication 1756-PM020F-EN-P - January 2019...
-
Page 20: Read Tag Service
Example Using Symbolic has a data type of DINT and a value of 534. The value used for Instance ID Segment Addressing was determined using methods described in CIP Services and User-created Tags. Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... -
Page 21: Example Using Symbol Instance Addressing
0000216 = 534 decimal See also Read Tag Service page 20 Services Supported by Logix 5000 Controllers page 18 Both Symbolic Segment Addressing and Symbol Instance Addressing may Read Tag Service Error Codes Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... -
Page 22: Read Tag Fragmented Service
Start at this byte offset (0) and return as much as will fit 1st Message Reply Field Bytes (in hex) Description - Symbolic Segment Addressing Reply Service Read Tag Fragmented Service (Reply) Reserved Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... - Page 23 Description - Symbolic Segment Addressing Reply Service Read Tag Fragmented Service (Reply) Reserved General Status Reply Data Too Large Extended Status Size No extended status Reply Data C2 00 SINT Tag Type Value Rockwell Automation Publication 1756-PM020F-EN-P - January 2019...
-
Page 24: Example Using Symbol Instance Addressing
00 00 00 00 Start at this element (0) and return as much will fit 1st Message Reply Field Bytes (in hex) Description - Symbol Instance Addressing Reply Service Read Tag Fragmented Service (Reply) Reserved Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... - Page 25 Start at this element (980) and return as much will fit 3rd Message Reply Field Bytes (in hex) Description - Symbol Instance Addressing Reply Service Read Tag Fragmented Service (Reply) Reserved General Status Reply Data Too Large Extended Status Size No extended status Rockwell Automation Publication 1756-PM020F-EN-P - January 2019...
-
Page 26: Read Tag Fragmented Service Error Codes
Insufficient Request Data: Data too short for expected parameters. 0x26 The Request Path Size received was shorter or longer than expected. 0xFF 0x2105 General Error: Number of Elements or Byte Offset is beyond the end of the requested tag. Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... -
Page 27: Write Tag Service
CIP Services and User-created Tags. Message Request Field Bytes (in hex) Description - Symbol Instance Addressing Request Service Write Tag Service (Request) Request Path Size Request Path is 3 words (6 bytes) long Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... -
Page 28: Write Tag Service Error Codes
(approximately 500 bytes). The client must issue a series of requests to the controller to write all data using this service. The Request Service, Request Path Size, Request Path, and Number of Elements fields remain the same for each request. The client must change the Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... -
Page 29: Example Using Symbolic Segment Addressing
91 0A 54 6F 74 61 6C 43 6F 75 6E 74 ANSI Ext. Symbolic Segment for TotalCount Request Data C2 00 SINT Tag Type Value D6 06 Total number of elements to write (1750) DA 01 00 00 Start at this offset. Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... - Page 30 C2 00 SINT Tag Type Value D6 06 Total number of elements to write (1750) 8E 05 00 00 Start at this Offset nn, nn, …nn Element Data for Elements 1422 through 1749 Rockwell Automation Publication 1756-PM020F-EN-P - January 2019...
-
Page 31: Example Using Symbol Instance Addressing
Logical Segment for Instance ID for the tag TotalCount Request Data C2 00 Tag Data Type D6 06 Number of elements to write (1750) EC 01 00 00 Start at this Offser nn,nn,...nn Element Data (474 through 947) Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... - Page 32 Logical Segment for Instance ID for the tag TotalCount Request Data C2 00 Tag Data Type D6 06 Number of elements to write (1750) 8E 05 00 00 Start at this Offset nn,nn,...nn Element Data (1422 through 1749) Rockwell Automation Publication 1756-PM020F-EN-P - January 2019...
-
Page 33: Write Tag Fragmented Service Error Codes
Tag. Also use the Read Modify Write Tag Service to modify a single bit in a Tag without disturbing other data. See also PCCC Commands page 81 These are the Service Request Parameters. Service Request Parameters Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... -
Page 34: Example
Error Code (Hex) Extended Error Description of Error (Hex) 0x03 Bad parameter, size > 12 or size greater than size of element. 0x04 0x0000 A syntax error was detected decoding the Request Path. Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... -
Page 35: Multiple Service Packet Service
The Multiple Service Packet Request Path contains the Message Router object (Class 2, Instance 1). This is the destination of the Multiple Service Packet’s Request Path. The Request Data field contains the Number of Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... -
Page 36: Logix Data Structures
A structure contains one or more members. • • Each member can be an: Atomic data type. • Another structured data type. • A single dimension array of an atomic or structure data type. • Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... -
Page 37: Work With Data Structures
UDTs with nested tags of these types. Instead, access atomic members of these tags that are visible in the Logix Designer application Data Monitor, using one of the methods that follow. Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... -
Page 38: Tag Type Service Parameters For Structure
A0 and 02, followed by the latter two bytes, which contain a 16-bit calculated field called a Structure Handle. When transmitted on the wire, it looks like this: Structure Handle Low Byte Structure Handle High Byte Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... - Page 39 Reserve this method only in cases where the control system development is complete and no further data structure changes will be made. See also CIP Services and user-created tags page 41 Rockwell Automation Publication 1756-PM020F-EN-P - January 2019...
-
Page 41: Cip Services And User-Created How Tags Are Organized In The Controller
What tags are created • If a tag is structure • • The structure members How the data is packed in a message when reading a structure • Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... -
Page 42: Tags Symbol Object
This instance of the template object provides information about the template structure such as: • Its name. The member list. • • The number of members. The size of the structure when read or written. • • The Structure Handle. Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... - Page 43 (NAME in the Data Monitor) in the client software. This includes atomic members of any structure that are visible in Data Monitor. This only applies to visible atomic tags and atomic members of structured tags. Rockwell Automation Publication 1756-PM020F-EN-P - January 2019...
-
Page 44: Create And Maintain A Symbol Object List
1. Find all controller-scope tags. 2. Isolate user-created tags from system tags. 3. Determine the makeup of the structures. Structure members are not separate Symbol instances. 4. Determine the data packing of structure members in a message. Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... -
Page 45: Step 1: Find User-Created Controller Scope Tags In A Logix 5000 Controller
3. When General Status = 06 is returned, there is more data to read. To determine the last instance sent in the reply, parse the data received from the Logix 5000 controller to find the last instance ID returned. Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... -
Page 46: Example Of Retrieving The First Group Of Tags
Symbol Type 51 0E 00 00 Second 32-bit Instance ID 06 00 16-bit Symbol Name Length 63 6F 75 6E 74 73 Characters in the symbol name 82 CF Symbol Type … Next … Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... -
Page 47: Analysis
Request Path is 3 words (6 bytes) long Request Path 20 6B 25 00 35 5D Logical Segments: Class 0x6B, Instance 0 x5D35(starting instance) Request Data 02 00 Number of attributes to retrieve 01 00 Attribute 1 – Symbol Name Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... - Page 48 Which instance of the Symbol class is associated with each controller scope tag Information about the data type of each controller scope tag, including • whether it is a structured tag See also Analysis page 47 Rockwell Automation Publication 1756-PM020F-EN-P - January 2019...
-
Page 49: Step 2: Isolate User-Created Tags From System Tags/Identifying Structured Tags
For any tag type, the value of bits 13 and 14 indicates the dimensions of the tag as shown in this table: Bit 14 Bit 13 Meaning 0 dimensions (not an array) 1 dimension array 2 dimension array 3 dimension array Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... -
Page 50: Eliminate Tags By Applying Rules
The Symbol Type, Bit 12=0, Bit 15=0, and Bits 0-11 range from • 0x001-0x0FF (atomics) The Symbol Type, Bit 12=0, Bit 15=1, and Bits 0-11 range from • 0x100-0xEFF (structures, not including Predefined) 2. Discard tags that contain these characters Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... -
Page 51: Step 3: Determine The Structure Makeup For A Specific Structure
• This is the number of 32-bit words • Template Object Definition Size • Data Type: UDINT • This is the number of bytes of the structure data • Template Structure Size • Data Type: UDINT Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... -
Page 52: Example Of Reading Template Attributes
Attribute 1, Structure Handle 00 00 Status: 0000 = success CD 9E Calculated CRC value for members of the structure. The error codes may be returned by the Get_Attribute_List service to the Template object. Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... -
Page 53: Analysis
The structure data returned by the Template Read service has the • format shown in Structure data format. See also Structure data format page 53 Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... -
Page 54: Structure Data Format
If the member is a Boolean data type, the value is the bit location • (0-31; 0-7 if mapped to a SINT). The upper 16-bits represent the data type. • The second 32-bit value is the offset location of the member in the • UDT structure. Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... -
Page 55: Example Of Retrieving Member Information
00 00 00 00 Offset to start reading from (should be zero, initially) 61 00 The number of bytes to be read. Message Reply Field Bytes Description Reply Service Read Template Service (Reply) Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... - Page 56 NULL instead of the semi-colon and characters. Non-UDT structures are beyond the scope of this publication and should not be accessed as whole structures. Rockwell Automation Publication 1756-PM020F-EN-P - January 2019...
-
Page 57: More About Bools In Udts
MachineSummary tag have these values: as a whole pilot_on = 1 • • hourlyCount[0] = 0x00 hourlyCount[1] = 0x01 • • hourlyCount[2] = 0x02 … • Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... -
Page 58: Example Of Reading An Entire Structure
= hourlyCount[5] 06 00 = hourlyCount[6] 07 00 = hourlyCount[7] 08 00 = hourlyCount[8] 09 00 = hourlyCount[9] 0a 00 = hourlyCount[10] 0b 00 = hourlyCount[11] 00 00 80 3F = rate (REAL) Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... -
Page 59: Step 5: Determine When The Tags List And Structure Information Need Refreshing
Get_Attribute_List service with the Read Tag services. If the situations occur, discard the Tag Read reply data and refresh the symbol and template information: • The values returned for these attributes are different than the last time they were read. Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... - Page 60 01 00 Attribute number (attribute 1) 00 00 Success 05 00 Attribute value (INT) 02 00 Attribute number (attribute 2) 00 00 Success 01 00 Attribute value (INT) 03 00 Attribute Number (Attribute 3) Rockwell Automation Publication 1756-PM020F-EN-P - January 2019...
- Page 61 General Status 0x10, Device State Conflict when the controller is password locked. In this state, controller memory can not be altered. Rockwell Automation suggests after receipt of the Device State Conflict for the first time, the client application should refresh the tag information one time.
-
Page 63: Cip Addressing Examples Atomic Members Of Predefined Data Types
ANSI Ext. Symbolic Segment for parts Request Data 01 00 Number of elements to read (1) Message Reply Field Bytes (in hex) Description - Symbolic Segment Addressing Reply Service Read Tag Service (Reply) Reserved General Status Success Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... -
Page 64: Example 2 (Symbol Instance Addressing Method)
ANSI Ext. Symbolic Segment for setpoints and …the Member segment for 5 Request Data CA 00 REAL Tag Type Value 01 00 Number of elements to write (1) 00 00 68 41 0x41680000 = 14.5 decimal Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... -
Page 65: Example 4 (Symbolic Segment Addressing Method)
Read one element of profile[0,1,257] which is a three dimensional array of Example 5 (Symbol Instance DINTs. Addressing Method) Message Request Field Bytes (in hex) Description Request Service Read Tag Service (Request) Request Path Size Request Path is 7 words (14 bytes) long Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... -
Page 66: Example 6 (Symbolic Segment Addressing Method)
Success Extended Status Size No extended status Reply Data C4 00 DINT Tag Type Value 25 02 00 00 0x00000252 = 549 decimal See also Atomic Members of Predefined Data Types page 63 Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... -
Page 67: Example 7 (Symbolic Segment Addressing Method)
Description - Symbol Instance and Symbolic Segment Addressing Reply Service Read Tag Service (Reply) Reserved General Status Success Extended Status Size No extended status Reply Data CA 00 REAL Tag Type Service Parameter 00 00 80 41 16.0 decimal Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... -
Page 68: Example 9 (Both Addressing Methods)
Atomic Members of Predefined Data Types page 63 Read the value of a BOOL named struct2.pilot_on using Symbolic Segment Example 10 (Symbolic Segment Addressing. The value of the BOOL is 1. Addressing Method) with BOOLs Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... -
Page 69: Access User-Defined Structures
REAL errors SINT wear REAL Structure Name: STRUCT_C Structure Name: STRUCT_D Member Data Type Member Data Type hours_full BOOL myint today STRUCT_B myfloat REAL sampleTime DINT myarray STRUCT_C[8] shipped DINT mypid REAL Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... -
Page 70: Example 1
Request Path is 8 words (16 bytes) long Request Path 91 07 73 74 72 75 63 74 31 00 ANSI Ext. Symbolic Segment for struct1, 91 04 77 65 61 72 ANSI Ext. Symbolic Segment for wear Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... -
Page 71: Example 3
Read two elements of the tag struct2.hourlyCount[4], which is a structure of Example 4 type STRUCT_B. Message Request Field Bytes (in hex) Description - Symbolic Segment Addressing Request Service Read Tag Service (Request) Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... -
Page 72: Example 5
Read Tag Service (Reply) Reserved General Status Success Extended Status Size No extended status Reply Data CA 00 REAL Tag Type Value 00 00 80 41 0x41800000=16.0 decimal See also Access User-Defined Structures page 69 Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... -
Page 73: Example 6
Read Tag Service (Reply) Reserved General Status Success Extended Status Size No extended status Reply Data C3 00 INT Tag Type Value D0 5C 0x5CD0=23760 decimal See also Access User-Defined Structures page 69 Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... -
Page 75: Unconnected Messaging (Ucmm) Through Pccc
Description of Request Parameter Semantics of Values USINT Command = 0x0B USINT Status (0 in request) See the DF1 Protocol and Command Set Reference Manual, publication 1770-6.5.16. TNSW UINT Used to match response with request Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... -
Page 76: Connected Explicit Messages Through Pccc
Tip: Rockwell Automation assumes that you are familiar with CIP and the information related to CIP that is discussed here. The details of the CIP portions of the frame are not fully described here. References to where more detailed information can be found are provided later. If you are not familiar with CIP, a tutorial is available for purchase at http://www.rockwellautomation.com/enabled/cipetraining.html. - Page 77 0B command with a CIP Forward_Close service request in it. It is not acceptable to allow connections to timeout naturally and clean themselves up. Rockwell Automation Publication 1756-PM020F-EN-P - January 2019...
-
Page 78: Fragmentation Protocol
(Ack or Nak) before the next fragment is sent, and provides the ability for the client device to abort the fragmentation sequence if necessary. This fragmentation protocol is used only with the 0A and 0B PCCC commands. Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... - Page 79 CIP Over the Controller Serial Port Chapter 4 For more information on the PCCC fragmentation protocol, go to http://www.rockwellautomation.com/enabled/guides.html. See also CIP Over the Controller Serial Port page 75 Rockwell Automation Publication 1756-PM020F-EN-P - January 2019...
-
Page 81: Supported Subset Of Pccc Commands
PCCC commands described in this chapter. See also Supported Subset of PCCC Commands page 81 Logix controllers support these subset of PCCC commands. Supported Subset of PCCC Commands PLC-2 Communication Commands page 83 • Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... -
Page 82: Initial Fields Of All Pccc Commands
The name of each command is listed in this format: Command Name (CMD=xx,yy; FNC=zz), where: • xx= CMD code in the Request yy= CMD code in the Reply • • zz = Function code Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... -
Page 83: Plc-2 Communication Commands
• [PLC-2 address] 2-bytes; byte offset from start of file, on 16-bit boundary, low byte first • [size] 1-byte; must be an even number of bytes Reply Format: [data] [data] is up to 244 bytes See also PLC-2 Communication Commands page 83 Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... -
Page 84: Protected Write (Cmd=00, 40; Fnc Not Present)
• [PLC-2 address] 2-bytes; byte offset from start of file, on 16-bit boundary, low byte first • [SET mask] is 1 byte (1=set to 1) • [RESET mask] is 1 byte (1=reset to 0) Reply Format: no data-only status Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... -
Page 85: Unprotected Bit Write (Cmd=05, 45; Fnc Not Present)
Members of SINT, INT, DINT, and REAL arrays are contiguous in Logix memory. For more information on Logical addressing, see the DF1 Protocol and Command Set Manual, publication 1770-6.5.16. Symbolic, which addresses data directly by a tag name. • Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... -
Page 86: Addressing Examples
RMW command performs this procedure. 1. Copy the specified word. 2. Reset the bits specified in the [AND mask]. 3. Set the bits specified in the [OR mask]. 4. Write the word back. Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... -
Page 87: Read Modify Write N (Cmd=0F, 4F; Fnc=79)
• For an unsuccessful command ([STS]=0xF0), a byte (error code) occurs; data may be returned, but the Logix data format is not documented. See also PCCC Commands page 81 PLC-5 Communication Commands page 85 Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... -
Page 88: Typed Read (Cmd=0F, 4F; Fnc=68)
See also PLC-5 Communication Commands page 85 The word range read command reads a block of words starting at the PLC-5 Word Range Read (CMD=0F, 4F; system address plus the word offset. FNC=01) Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... -
Page 89: Word Range Write (Cmd=0F, 4F; Fnc=00)
• [SET mask] is 2 bytes (low byte first) specifying which bits in the word to set (1=set to 1) • [RESET mask] is 2 bytes (low byte first) specifying which bits in the word to reset (1=reset to 0) Reply Format: no data; only status Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... -
Page 90: Slc Communication Commands
The service is supported for compatibility with SLC modules. It reads data SLC Protected Typed Logical from the logical address. Read with 3 Address Fields (CMD=0F, 4F; FNC=A2) Request Format: [byte size][file number][file type][element number][sub-element number] Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... -
Page 91: Slc Protected Typed Logical Write With 3 Address Fields(Cmd=0F, 4F, Fnc=Aa)
See also SLC Communication Commands page 90 PCCC Commands page 81 This read command provides a simpler version for reading data. SLC Protected Typed Logical Read with 2 Address Fields (CMD=0F, 4F; FNC=A1) Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... -
Page 92: Slc Protected Typed Logical Write With 2 Address Fields (Cmd=0F, 4F; Fnc=A9)
• [element number] 1 byte, 0-254; 3 bytes for >=255, first byte=0xFF then 2-byte number, low byte first • [data] Reply Format: no data-only access See also SLC Communication Commands page 90 PCCC Commands page 81 Rockwell Automation Publication 1756-PM020F-EN-P - January 2019... - Page 93 Structures, user-defined 69, 70, 71, 72, 73 Symbol object list, create 45, 49, 51, 57, 59 Symbol object list, maintain 45, 49, 51, 57, 59 Tags 41, 42 User-defined structures, access 69, 70, 71, 72, 73 Rockwell Automation Publication 1756-PM020F-EN-P - January 2019...
- Page 94 Automation representative. New product satisfaction return Rockwell Automation tests all of its products to ensure that they are fully operational when shipped from the manufacturing facility. However, if your product is not functioning and needs to be returned, follow these procedures.
