Monitoring I/O Modules

The DriveLogix5730 controller offers different levels at which you can
monitor I/O modules. You can:
• use the programming software to display fault data (See
Data on page 3-15)
• program logic to monitor fault data so you can take appropriate action
(Refer to Logix5000 Controllers Common Procedures Programming
Manual, publication number 1756-PM001, for examples.)
Displaying Fault Data
Fault data for certain types of module faults can be viewed through the
programming software.

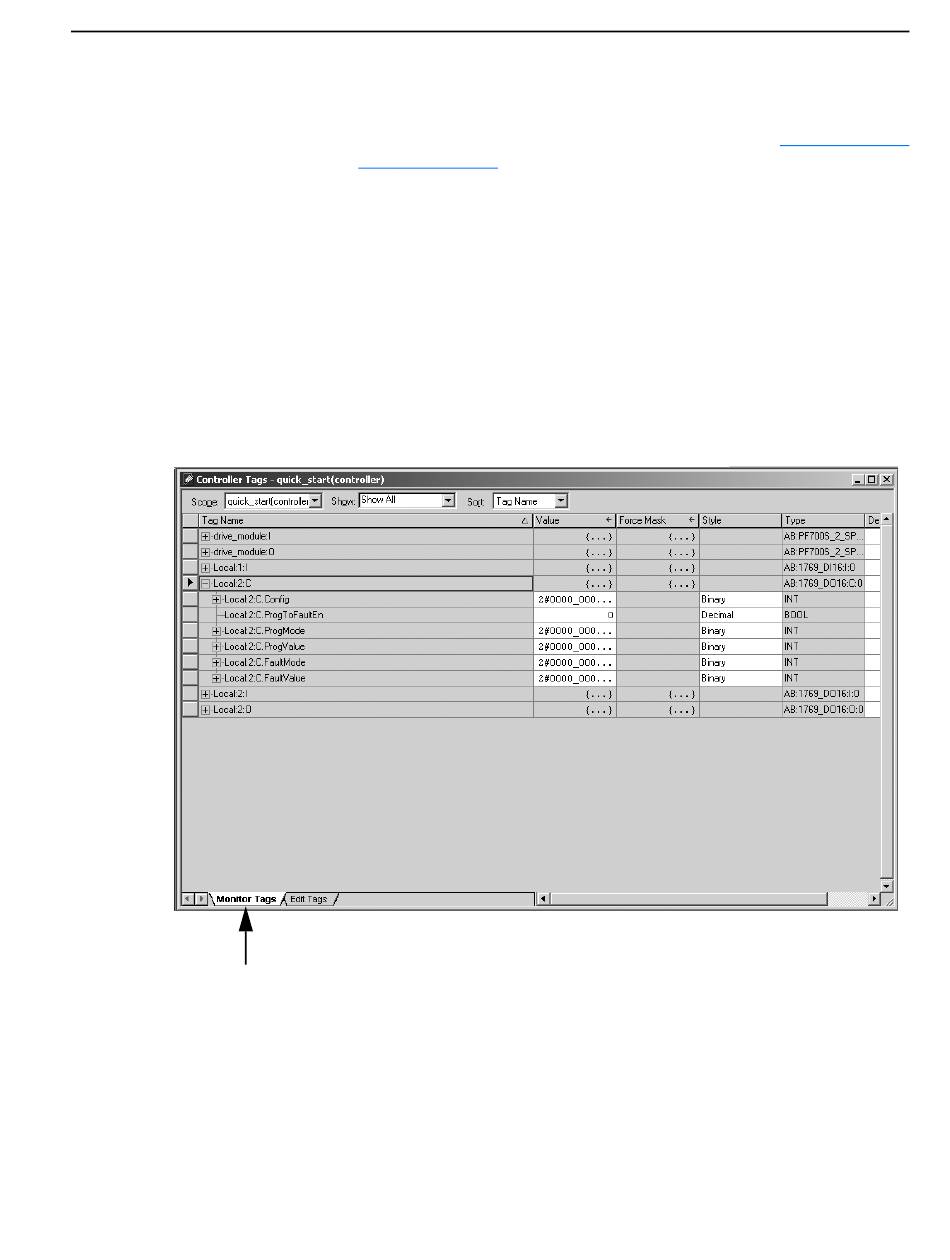

To view this data, select Controller Tags in the Controller Organizer.
Right-click to select Monitor Tags.
Placing and Configuring Local I/O
