A-6
DriveLogix5730 Controller Specifications

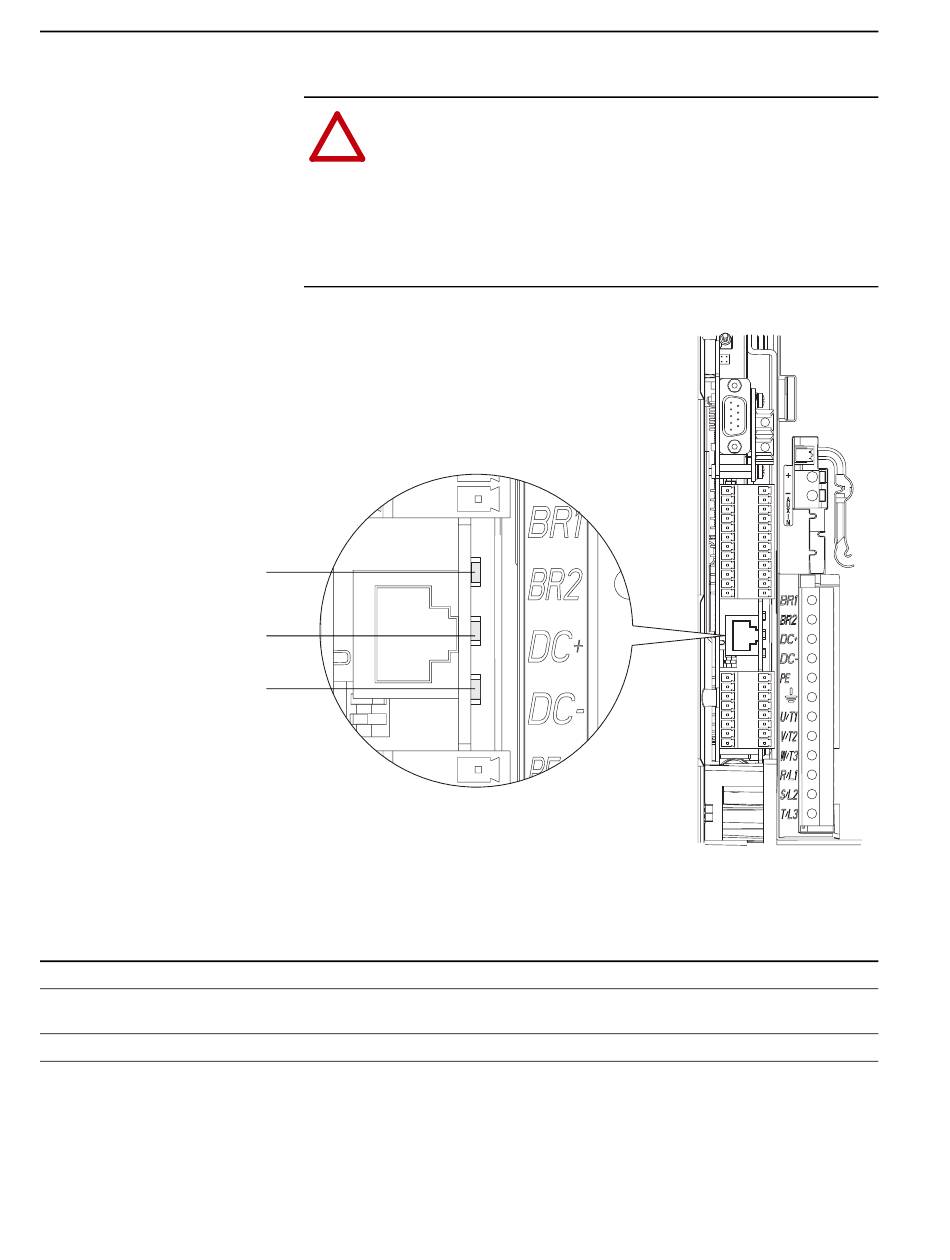

Embedded EtherNet/IP
Option LEDs
Module Status (MS)
Network Status (NS)
Link Status (LNK)
Condition:
Status:
off
no power
flashing green
standby
solid green
OK
ATTENTION: The Embedded EtherNet/IP Option LEDs are
!
only operational when the drive is energized, and only visible
with the drive door open. Servicing energized equipment can be
hazardous. Severe injury or death can result from electrical
shock, burn or unintended actuation of controlled equipment.
Follow Safety related practices of NFPA 70E, ELECTRICAL
SAFETY FOR EMPLOYEE WORKPLACES. DO NOT work
alone on energized equipment!
Module Status (MS) indicator
Indicates:
The controller does not have power.
The port does not have an IP address and is
operating in BOOTP mode.
The port is operating correctly.
Recommended Action:
Check the controller power supply.
Verify that the BOOTP server is running.
Normal operation. No action required.
