Installing The Compact I/O Cable - Rockwell Automation Allen-Bradley DriveLogix 5730 User Manual

B-8 Access Procedures
Installing the Compact I/O
Cable
A D
B
A D
B
C
=
Use cable tie to anchor
cable to slots on this flange
for strain relief

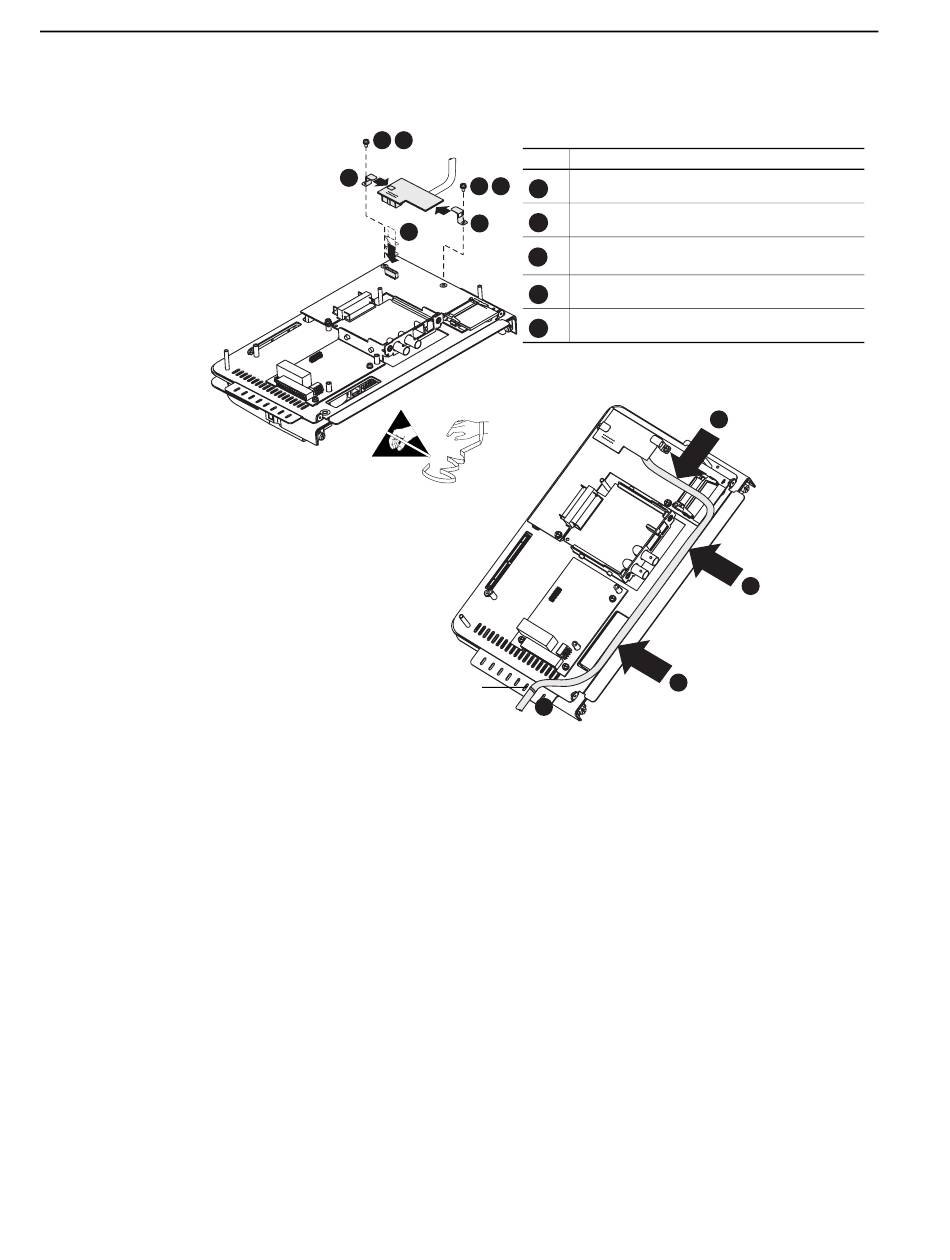

Task Description
Remove screws
A
Install clips on controller end of cable
B
Plug controller end of cable into mating connector
C C
on the Logix Expansion Board
Install and tighten screws (7-10 lb.-in.)
D
Route and secure cable
E
E
E
E
E
