2.

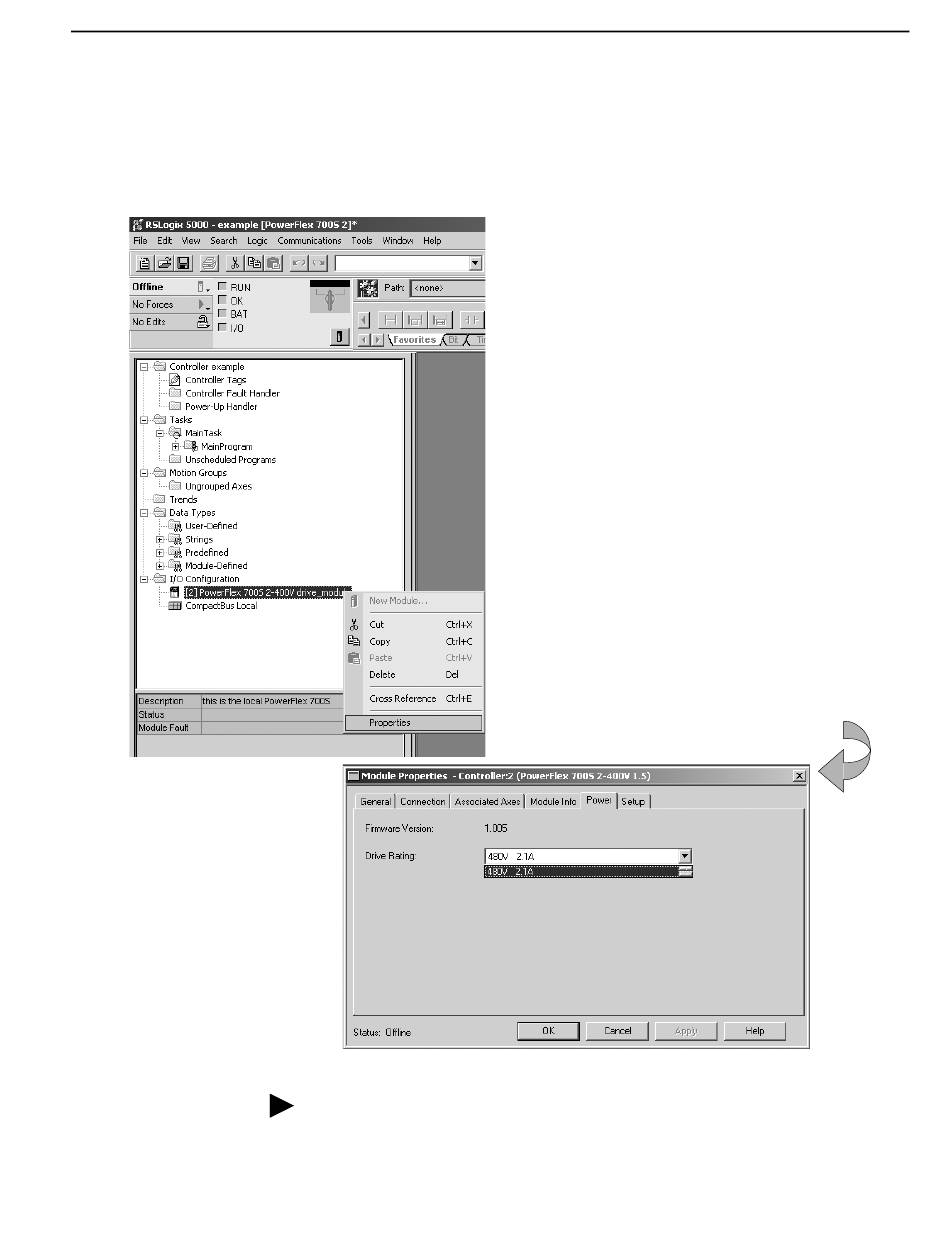

In the Controller Organizer, select the PowerFlex 700S drive. Right-click the drive module and select Properties.
3.
Select the Power tab.
4.
Select the correct Drive Rating. This data can be found on the PowerFlex 700S data nameplate.
TIP: If your drive's power rating does not appear as a selection, you do not
have the DriveExecutive Lite database file for your drive. To create a
database file, connect to the drive with DriveExecutive Lite. This will
automatically create the database. You can also download the database file
from http://www.ab.com/drives/data.html
Placing and Configuring the Drive
2-13
