2-4 Placing and Configuring the Drive
3. Select the Major Revision.

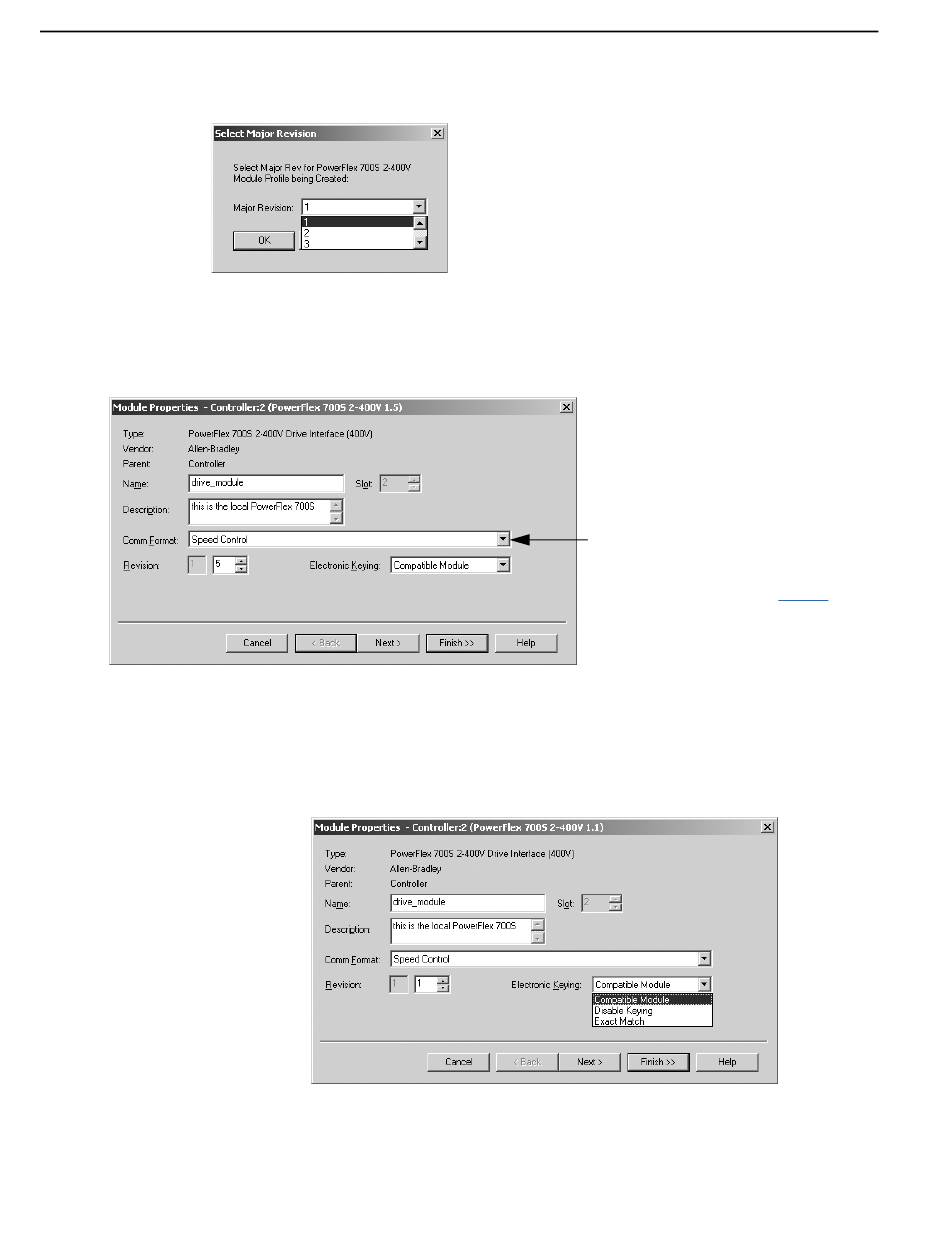

4. Configure the drive. Use the module properties wizard to specify characteristics for the
module. Click Next to continue through the wizard.
5. Name the drive and specify the Comm Format. Click finish when you are done. The
completed module appears in the Controller Organizer.
Electronic Keying
Electronic keying has no effect on drive module. However, the default
setting (Compatible Module) is recommended.
Selecting "Compatible Module" allows you to enter the drive firmware
minor revision.
The selection you make for the Comm Format
determines the communication format for the
connection to the drive. This determines the
tag names and data types. See
Once you complete adding a module, you
cannot change this selection.
page 2-5.
