1.

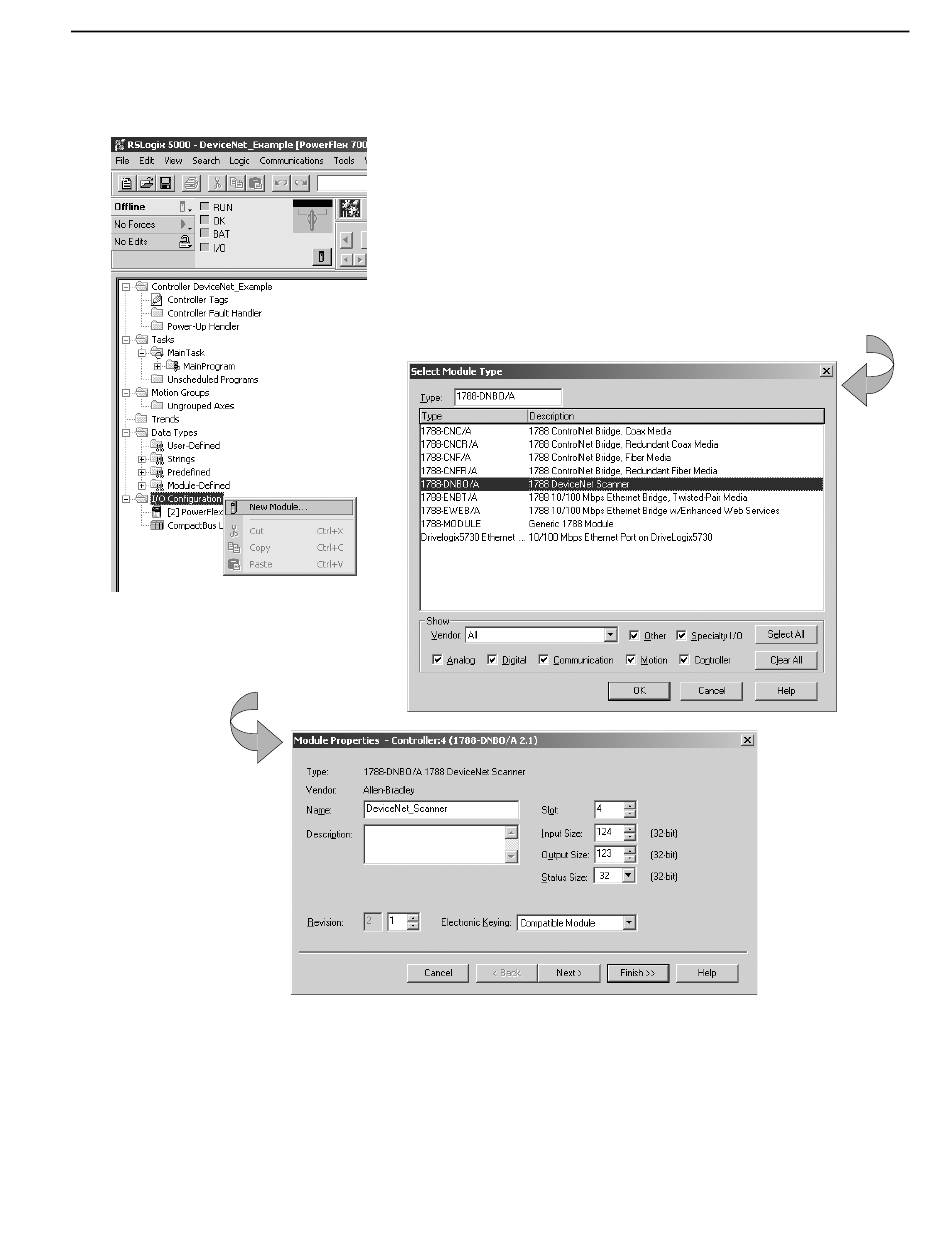

In the Controller Organizer, select the I/O Configuration folder. Right-click the selected folder and select New Module.
Creating a Project for the DriveLogix5730 Controller
2.
Select the 1788-DNBO DeviceNet
Scanner from the list of possible
communication devices.
Click OK.
3.
Enter a Name for the port and make sure it is assigned to
slot 4.
Click Finish.
Communicating with Devices on an DeviceNet Link
8-9
