3.

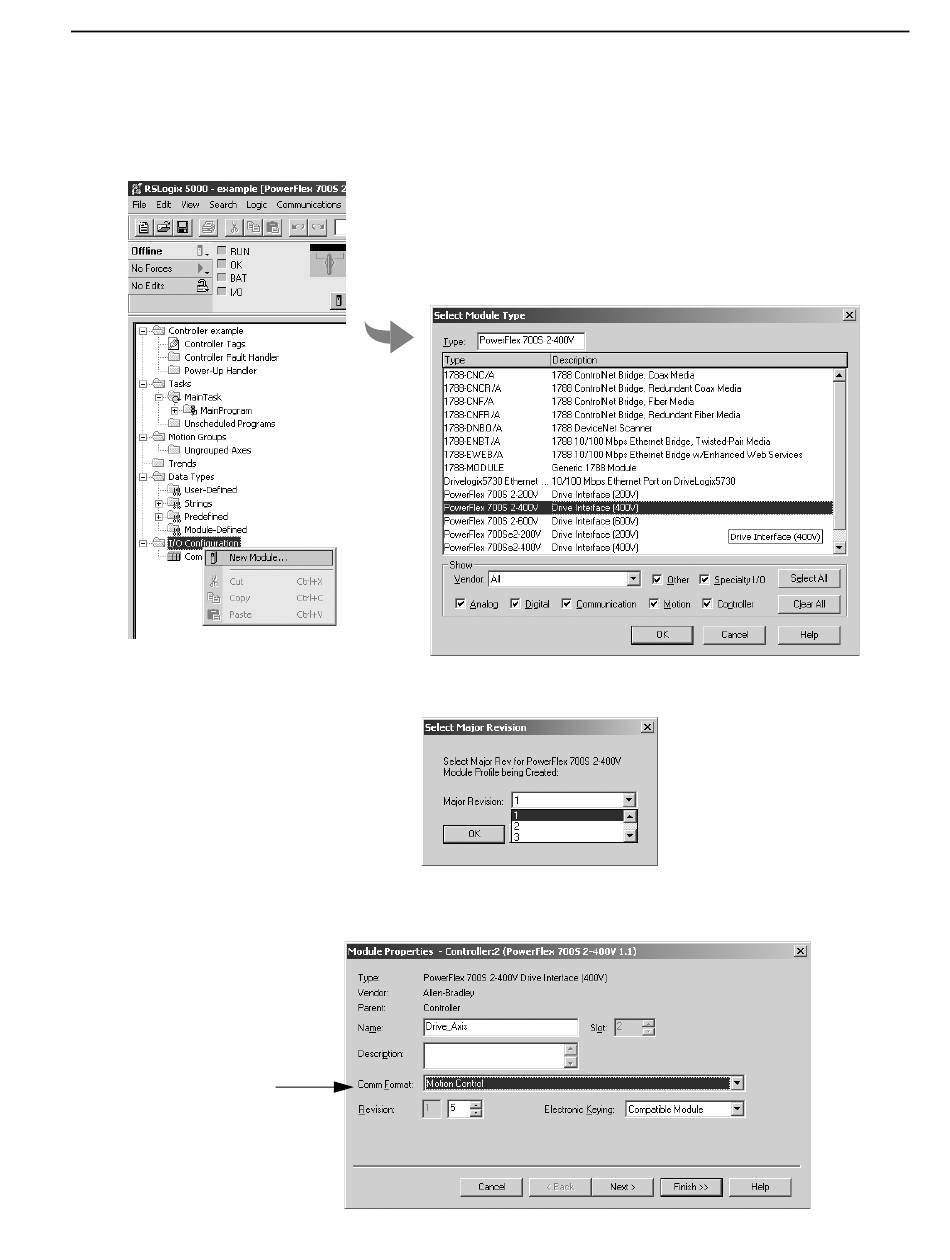

In the Controller Organizer, select the
I/O Configuration folder.
Right-click the selected folder and
select New Module.
5.
Select the Major Revision.
Select the Motion Control
Communication Format.
4.
Select the drive (PowerFlex 700S-400V in this example).
4.
Configure the drive. Use the module properties wizard to specify
characteristics for the module. Click Next to continue through the wizard.
Configuring DriveLogix Motion
Click OK.
Click Next.
4-3
