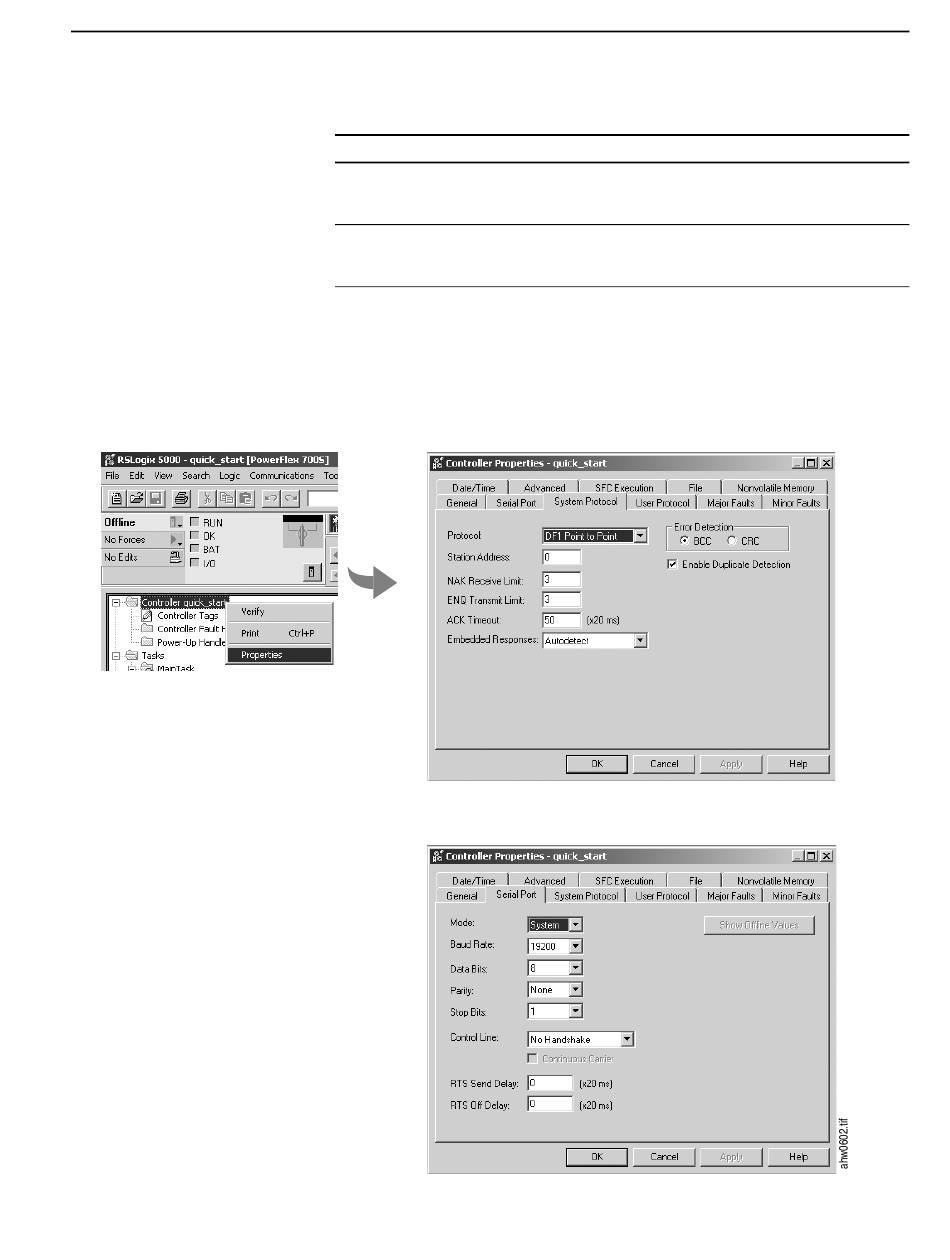

1. In RSLogix 5000 programming software, select the Controller folder. Right-click to select Properties.
2. On the System Protocol tab, specify the appropriate serial communication configuration.
ahw0600.tif
3. On the Serial Port tab, specify the appropriate communication settings.
The grayed out settings are selections
that do not apply to a DH-485 network.
The cable you use to connect the controller depends on the port you use on
the 1761-NET-AIC converter.
If you connect to this port:
port 1
DB-9 RS-232, DTE connection
port 2
mini-DIN 8 RS-232 connection
Step 2: Configure the DH-485 port of the controller
Communicating with Devices on a DH485 Link
Use this cable:
1747-CP3
or
1761-CBL-AC00
1761-CBL-AP00
or
1761-CBL-PM02
ahw0601.tif
9-3
