DriveLogix5730 Controller Specifications A-3

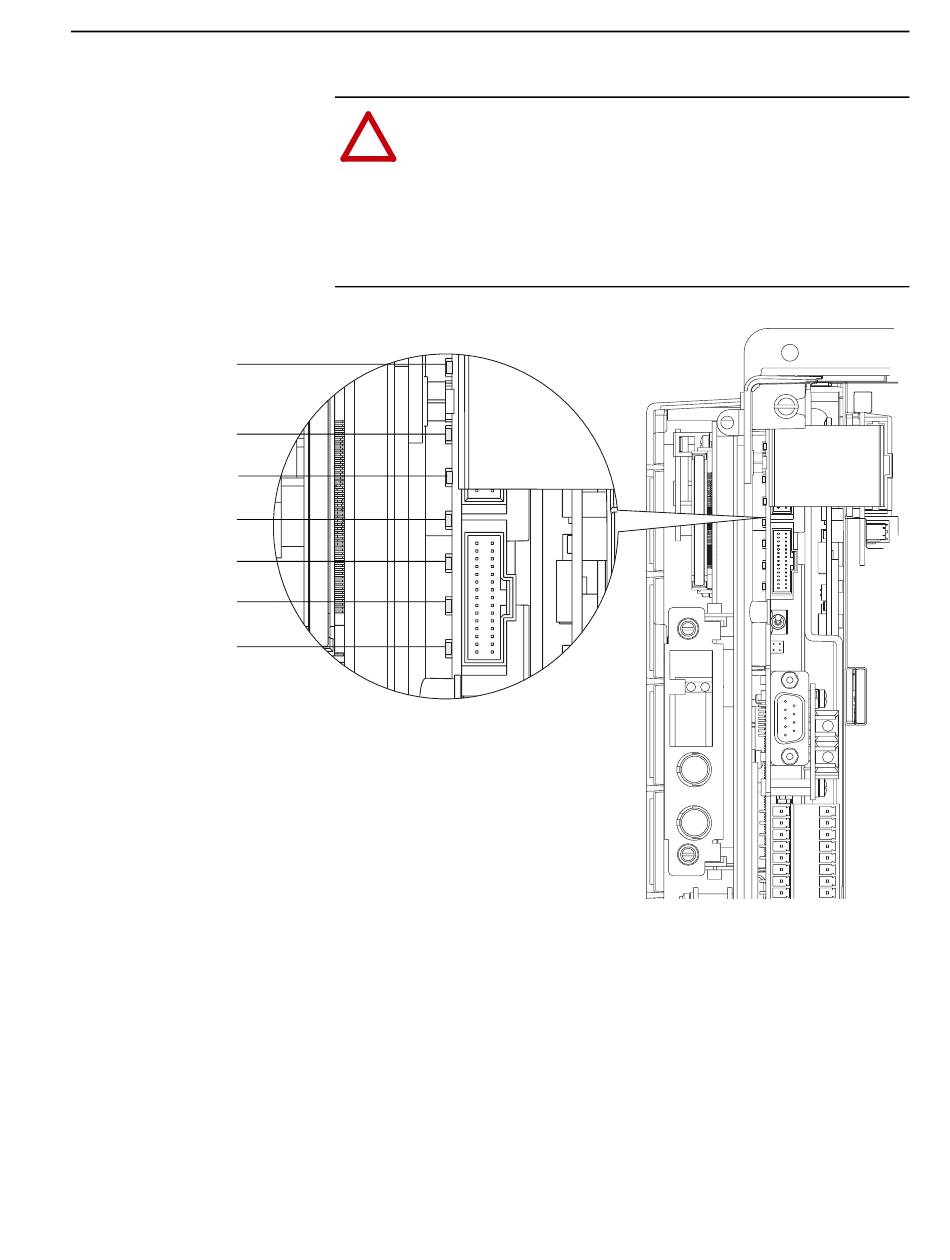

Controller LEDs

ATTENTION: The controller LEDs are only operational when
!
the drive is energized, and only visible with the drive door open.
Servicing energized equipment can be hazardous. Severe injury
or death can result from electrical shock, burn or unintended
actuation of controlled equipment. Follow Safety related
practices of NFPA 70E, ELECTRICAL SAFETY FOR
EMPLOYEE WORKPLACES. DO NOT work alone on energized
equipment!
(1)
RUN (Drive)
RUN (DriveLogix)
FORCE
I/O
COM
BAT
OK
(1) Do not confuse the Drive Run LED with the DriveLogix Run LED. The Drive
Run LED indicates a drive function NOT a DriveLogix function.
