System Processor

Processor Module
(CPU)

System Control Panels

Front Control
Panel
Acme Packet 6100 Hardware Installation Guide

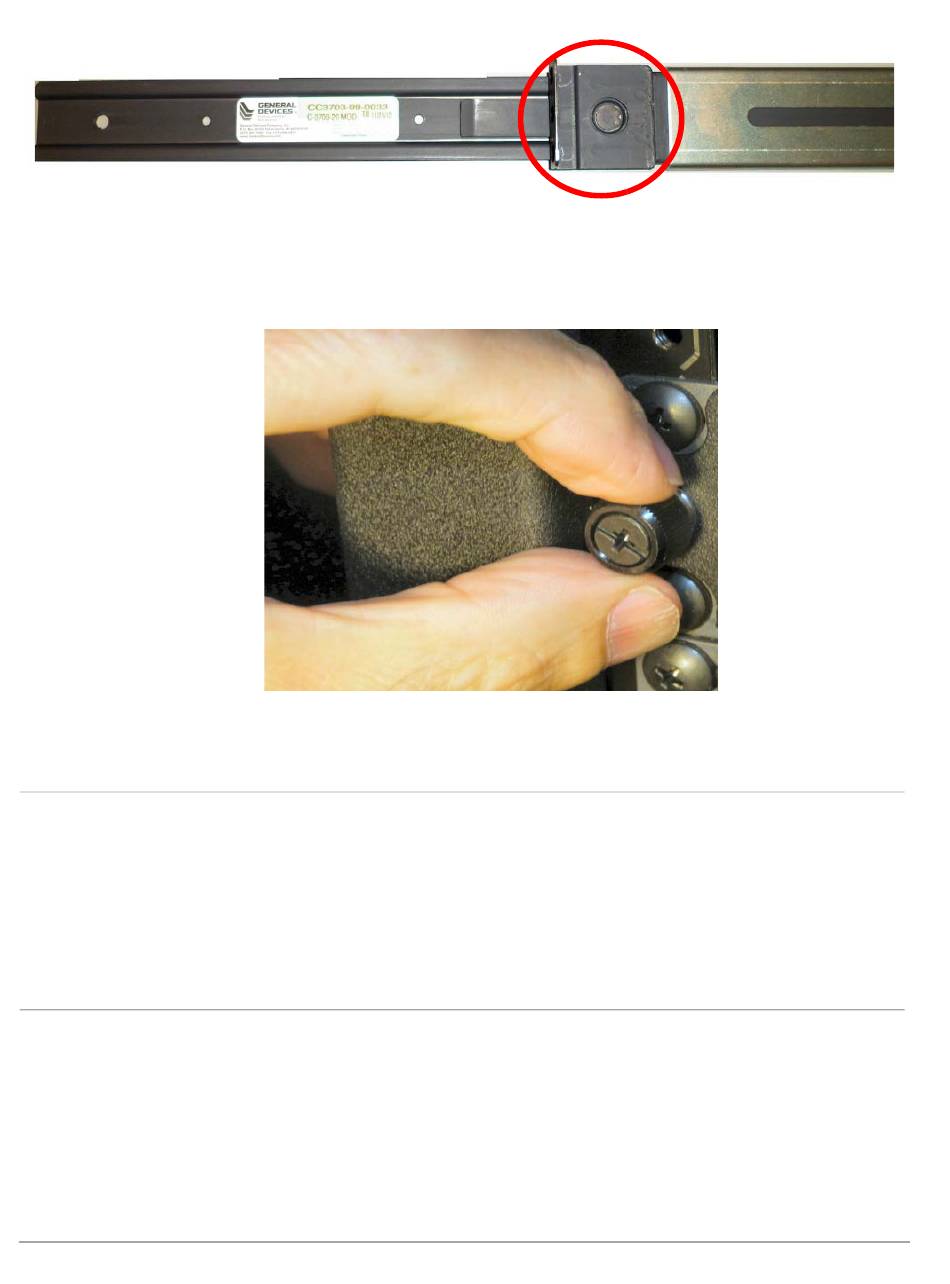

Figure 2 - 9. Locking Clip Fastens the Chassis and Rack Slide Rails
Once the chassis has been fully inserted into the rack, turning the captive
thumbscrews clockwise will lock the chassis securely into the rack.
Figure 2 - 10. Locking the Chassis to the Rack
The Acme Packet 6100 processor module (CPU) is located on the main board
of the Acme Packet 6100. This processor module handles both the
management and signal processing within the system. The CPU interacts with
the Network Processor (NP) to perform call and media control.
This section describes the Acme Packet 6100 front and rear control panels.
The Acme Packet 6100 front control panel provides easy access to several
system components. You can access the graphic display, navigation buttons,
7
