large hole
40

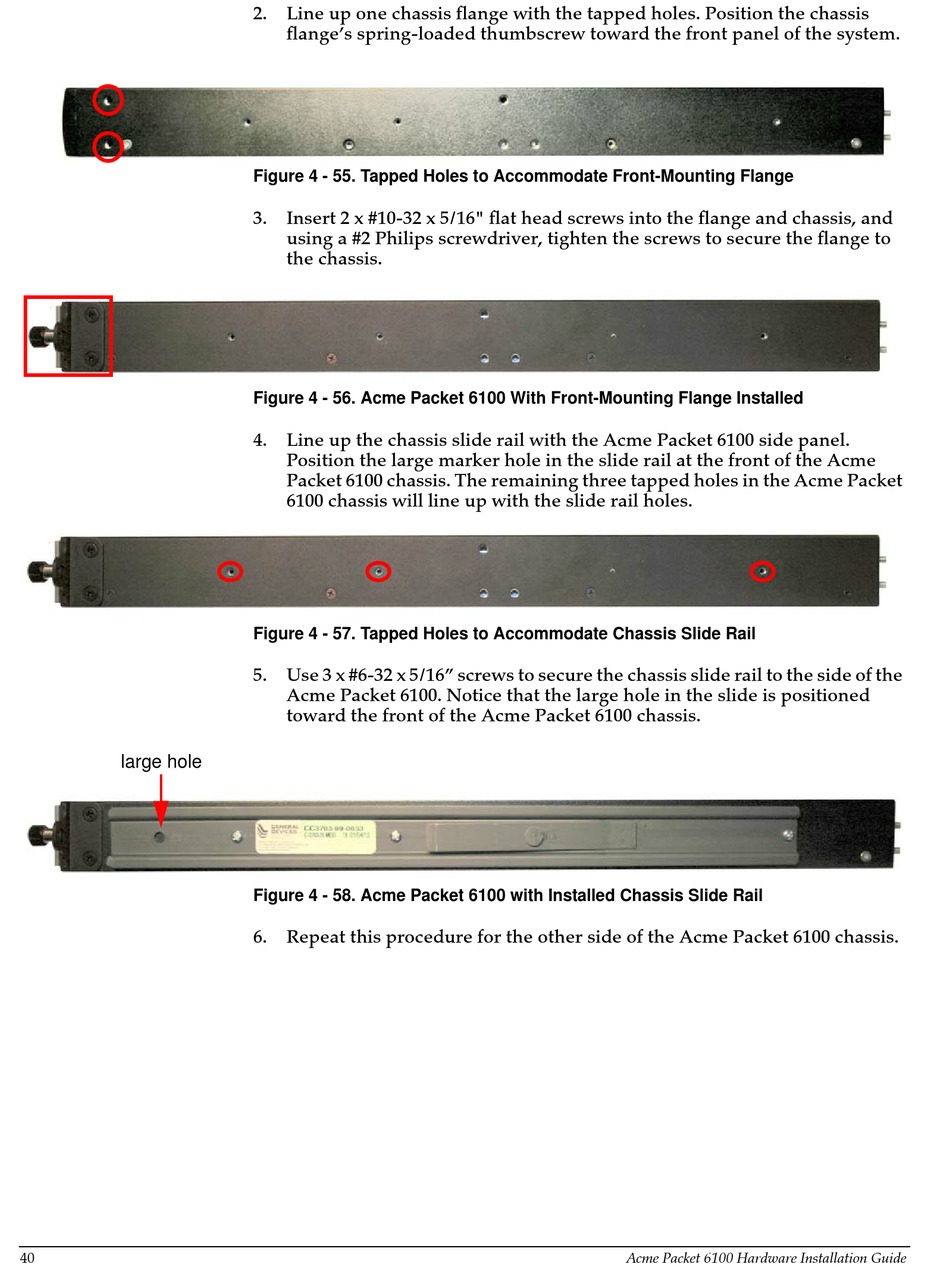

2. Line up one chassis flange with the tapped holes. Position the chassis
flange's spring-loaded thumbscrew toward the front panel of the system. 
Figure 4 - 55. Tapped Holes to Accommodate Front-Mounting Flange
3. Insert 2 x #10-32 x 5/16" flat head screws into the flange and chassis, and
using a #2 Philips screwdriver, tighten the screws to secure the flange to
the chassis.
Figure 4 - 56. Acme Packet 6100 With Front-Mounting Flange Installed
4. Line up the chassis slide rail with the Acme Packet 6100 side panel.
Position the large marker hole in the slide rail at the front of the Acme
Packet 6100 chassis. The remaining three tapped holes in the Acme Packet
6100 chassis will line up with the slide rail holes.
Figure 4 - 57. Tapped Holes to Accommodate Chassis Slide Rail
5. Use 3 x #6-32 x 5/16" screws to secure the chassis slide rail to the side of the
Acme Packet 6100. Notice that the large hole in the slide is positioned
toward the front of the Acme Packet 6100 chassis.
Figure 4 - 58. Acme Packet 6100 with Installed Chassis Slide Rail
6. Repeat this procedure for the other side of the Acme Packet 6100 chassis.
