Component Overview

Chassis

The Acme Packet 1100 can be installed in a variety of configurations. The appliance can either
be installed on a desktop/shelf, wall mounted or rack mounted.

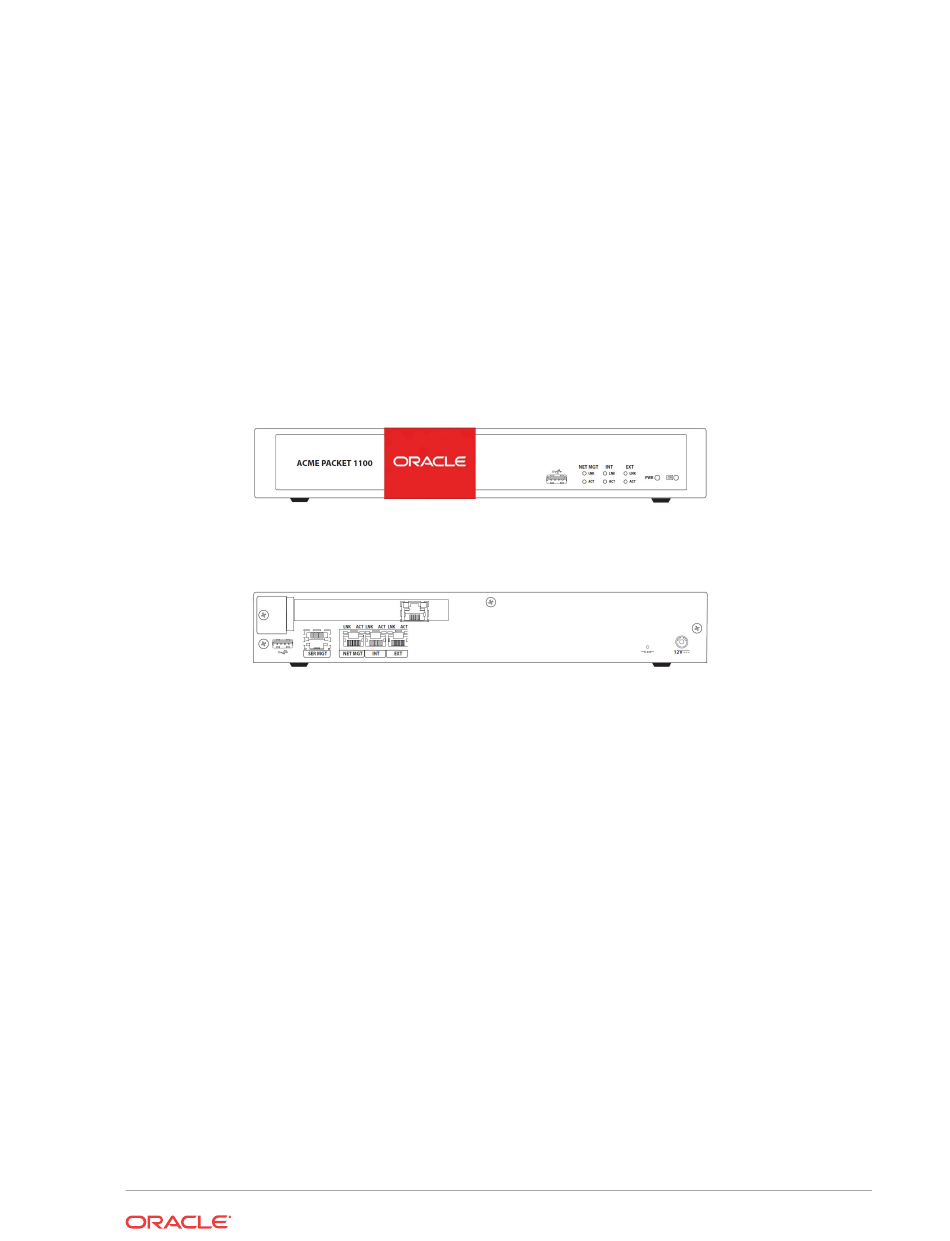

Figure 2-1 Acme Packet 1100 - Front Panel
Figure 2-2 Acme Packet 1100 - Rear Panel

Mounting Hardware

The Acme Packet 1100 can be mounted in a variety of ways that are explained in the chapter on
installation of the chassis.

System Processor

Processor Module (CPU)

The Acme Packet 1100 processor module (CPU) is located on the main board of the Acme
Packet 1100 System as a daughter card. This processor module handles both the management
and signal processing within the system.

System Control Panels

This section describes the Acme Packet 1100 front and rear control panels.
