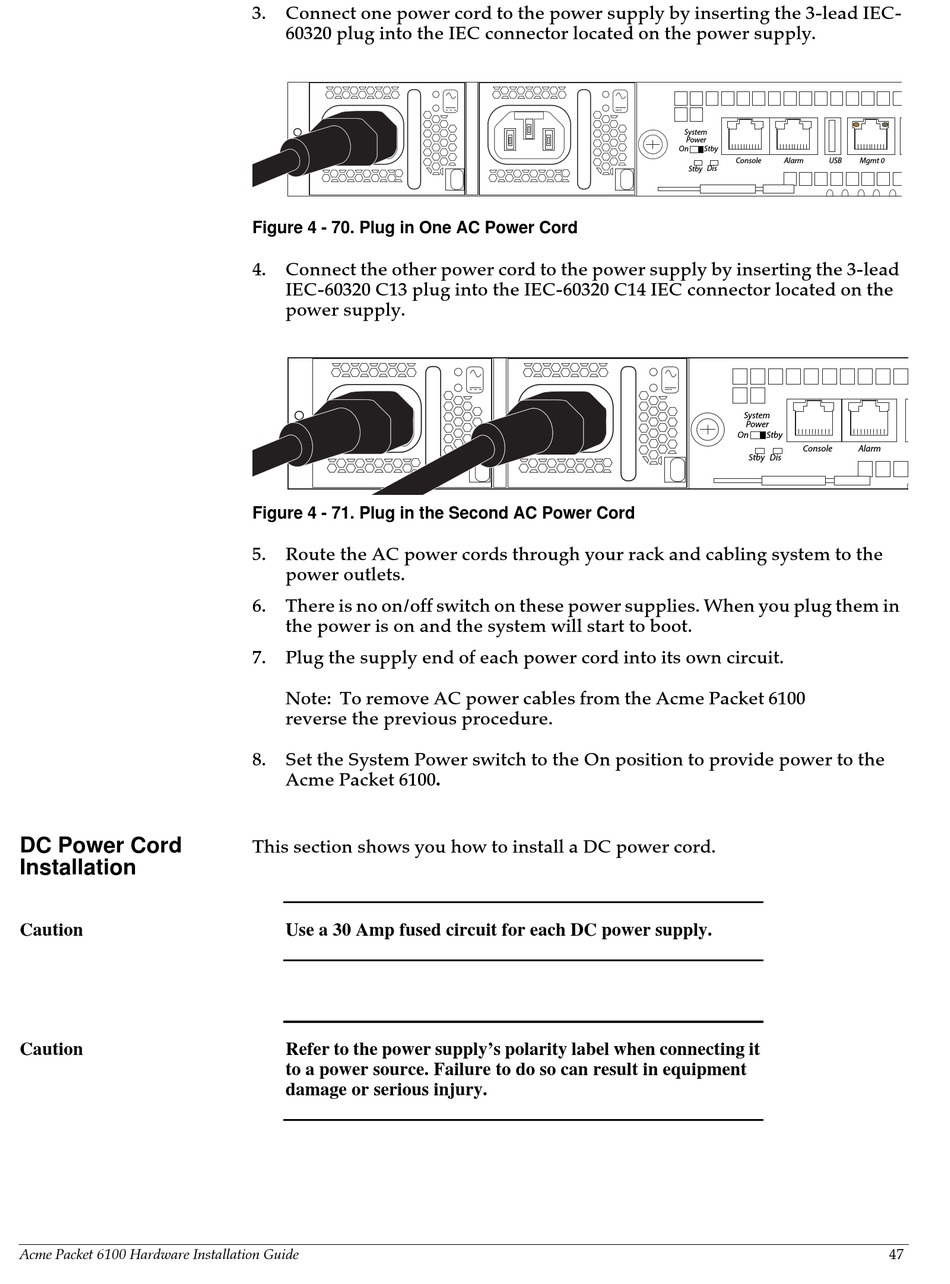

Oracle Acme Packet 6100 Hardware Installation Manual page 55

DC Power Cord
Installation
Caution
Caution
Acme Packet 6100 Hardware Installation Guide
3. Connect one power cord to the power supply by inserting the 3-lead IEC-
60320 plug into the IEC connector located on the power supply.
Figure 4 - 70. Plug in One AC Power Cord
4. Connect the other power cord to the power supply by inserting the 3-lead
IEC-60320 C13 plug into the IEC-60320 C14 IEC connector located on the
power supply.
Figure 4 - 71. Plug in the Second AC Power Cord
5. Route the AC power cords through your rack and cabling system to the
power outlets.
6. There is no on/off switch on these power supplies. When you plug them in
the power is on and the system will start to boot.
7. Plug the supply end of each power cord into its own circuit.
Note: To remove AC power cables from the Acme Packet 6100
reverse the previous procedure.
8. Set the System Power switch to the On position to provide power to the
Acme Packet 6100.
This section shows you how to install a DC power cord.
Use a 30 Amp fused circuit for each DC power supply.
Refer to the power supply's polarity label when connecting it
to a power source. Failure to do so can result in equipment
damage or serious injury.
System
Power
On Stby
Console Alarm USB
Dis
Stby
System
Power
On Stby
Console
Stby Dis
Mgmt 0
Alarm
47
