Power Components

Grounding Terminals
16
Mixed transceiver types are unsupported on SFP-based NIUs; both ports are
required to be populated with identical SFPs, based on compliance testing.
Alarm USB Mgmt 0 Mgmt 1 Mgmt 2

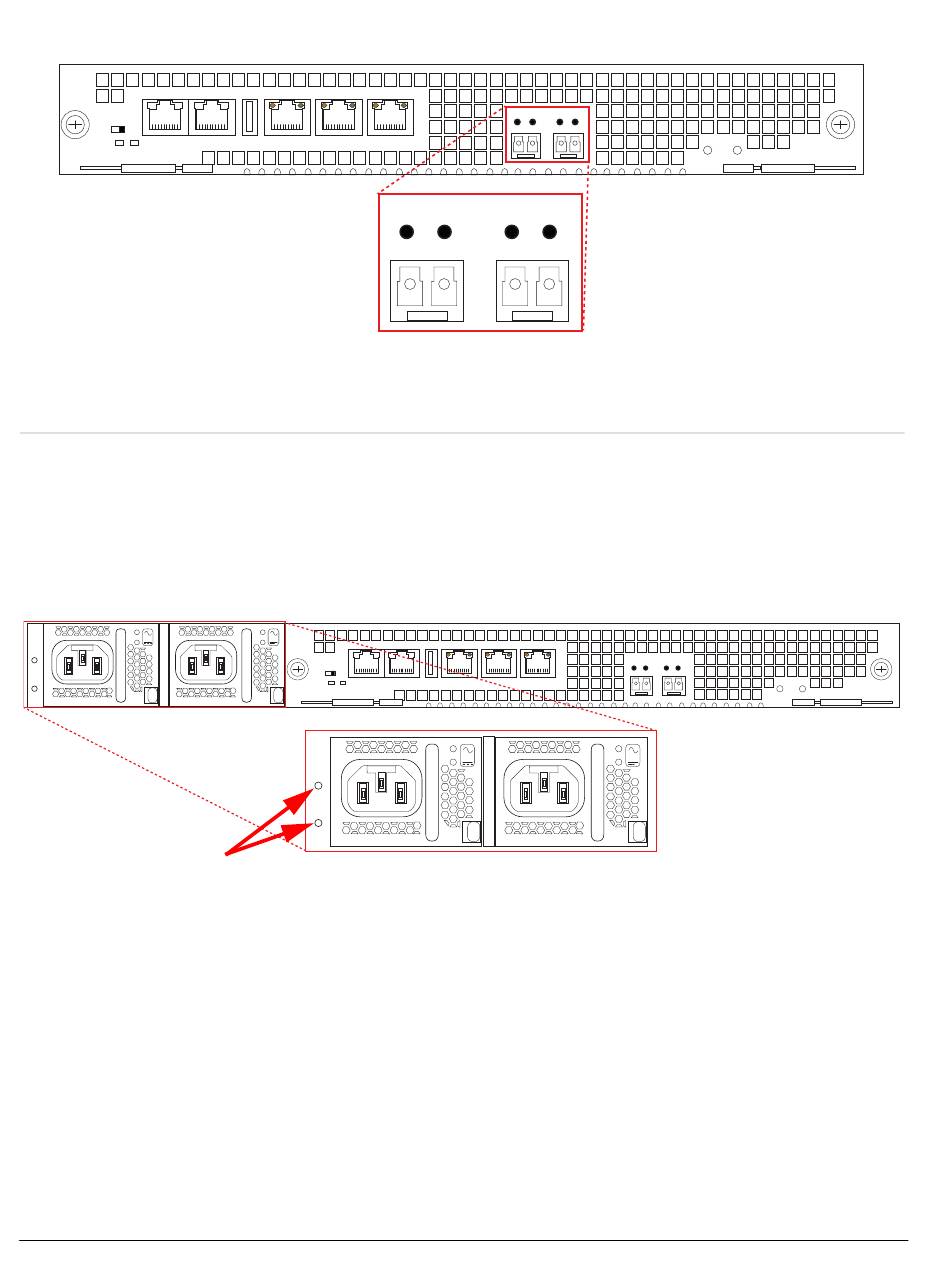

Figure 2 - 25. Acme Packet 6100 Signaling and Media Interfaces
Acme Packet offers AC or DC power options for the Acme Packet 6100. The
power supplies are user-replaceable, hot swappable components.
Each power supply is accessed from the rear panel of the Acme Packet 6100.
The power supply located at right is designated as power supply A while the
power supply located at left is designated as power supply B.
System
Power
On Stby
Console
Stby Dis
Power Supply B
Figure 2 - 26. Acme Packet 6100 Dual AC Power Supplies and Grounding Posts
LINK ACT LINK ACT
LINK ACT LINK ACT
Alarm USB Mgmt 0 Mgmt 1 Mgmt 2
Power Supply A
PWR H/S
LINK ACT LINK ACT
PWR H/S
