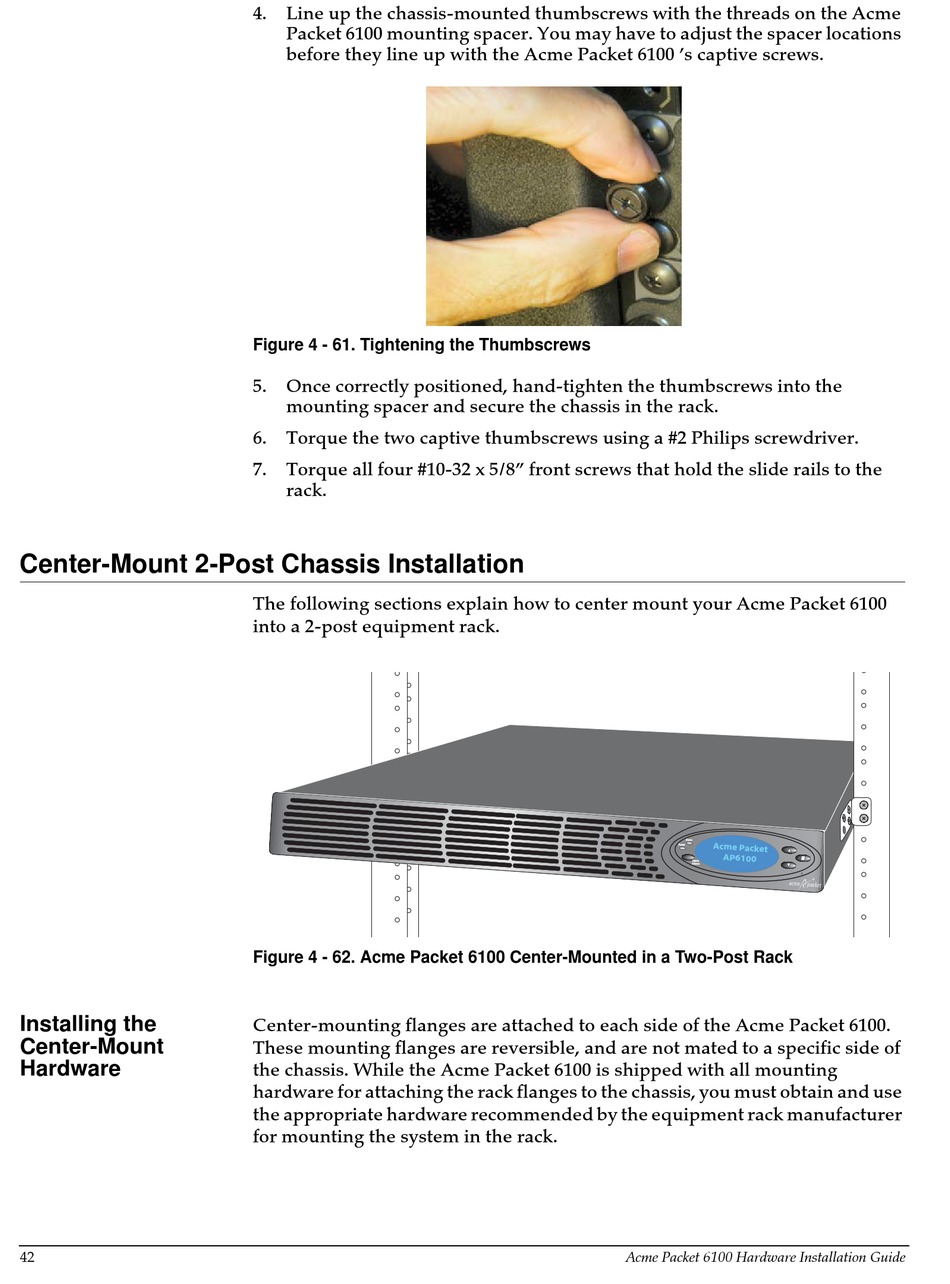

Center-Mount 2-Post Chassis Installation

Installing the
Center-Mount
Hardware
42
4. Line up the chassis-mounted thumbscrews with the threads on the Acme
Packet 6100 mounting spacer. You may have to adjust the spacer locations
before they line up with the Acme Packet 6100 's captive screws. 
Figure 4 - 61. Tightening the Thumbscrews
5. Once correctly positioned, hand-tighten the thumbscrews into the
mounting spacer and secure the chassis in the rack.
6. Torque the two captive thumbscrews using a #2 Philips screwdriver.
7. Torque all four #10-32 x 5/8" front screws that hold the slide rails to the
rack.
The following sections explain how to center mount your Acme Packet 6100
into a 2-post equipment rack.
Figure 4 - 62. Acme Packet 6100 Center-Mounted in a Two-Post Rack
Center-mounting flanges are attached to each side of the Acme Packet 6100.
These mounting flanges are reversible, and are not mated to a specific side of
the chassis. While the Acme Packet 6100 is shipped with all mounting
hardware for attaching the rack flanges to the chassis, you must obtain and use
the appropriate hardware recommended by the equipment rack manufacturer
for mounting the system in the rack.
