Caution
AC Power Cord
Installation
Caution
46
3.
Screw the two kep nuts onto the grounding post, securing the grounding
lug in place. When attached correctly, the grounding lug fits snugly
between the chassis's rear panel and the kep nuts.

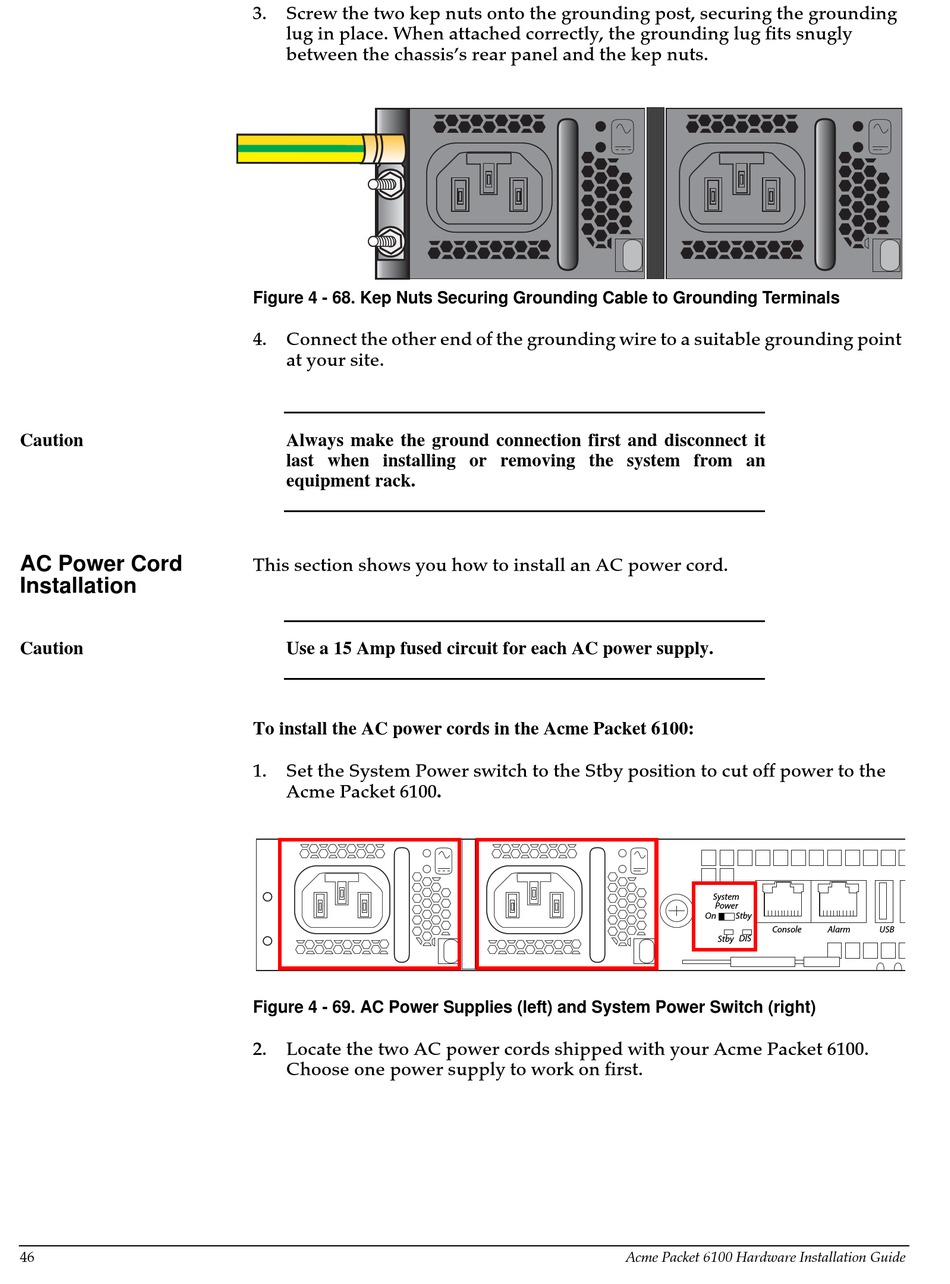

Figure 4 - 68. Kep Nuts Securing Grounding Cable to Grounding Terminals
4.
Connect the other end of the grounding wire to a suitable grounding point
at your site.
Always make the ground connection first and disconnect it
last when installing or removing the system from an
equipment rack.
This section shows you how to install an AC power cord.
Use a 15 Amp fused circuit for each AC power supply.
To install the AC power cords in the Acme Packet 6100:
1.
Set the System Power switch to the Stby position to cut off power to the
Acme Packet 6100.
Figure 4 - 69. AC Power Supplies (left) and System Power Switch (right)
2.
Locate the two AC power cords shipped with your Acme Packet 6100.
Choose one power supply to work on first.
System
Power
On
Stby
Console
Stby
DIS
Acme Packet 6100 Hardware Installation Guide
Alarm
USB
