Maintaining the
Cooling
Components
Acme Packet 6100 Hardware Installation Guide

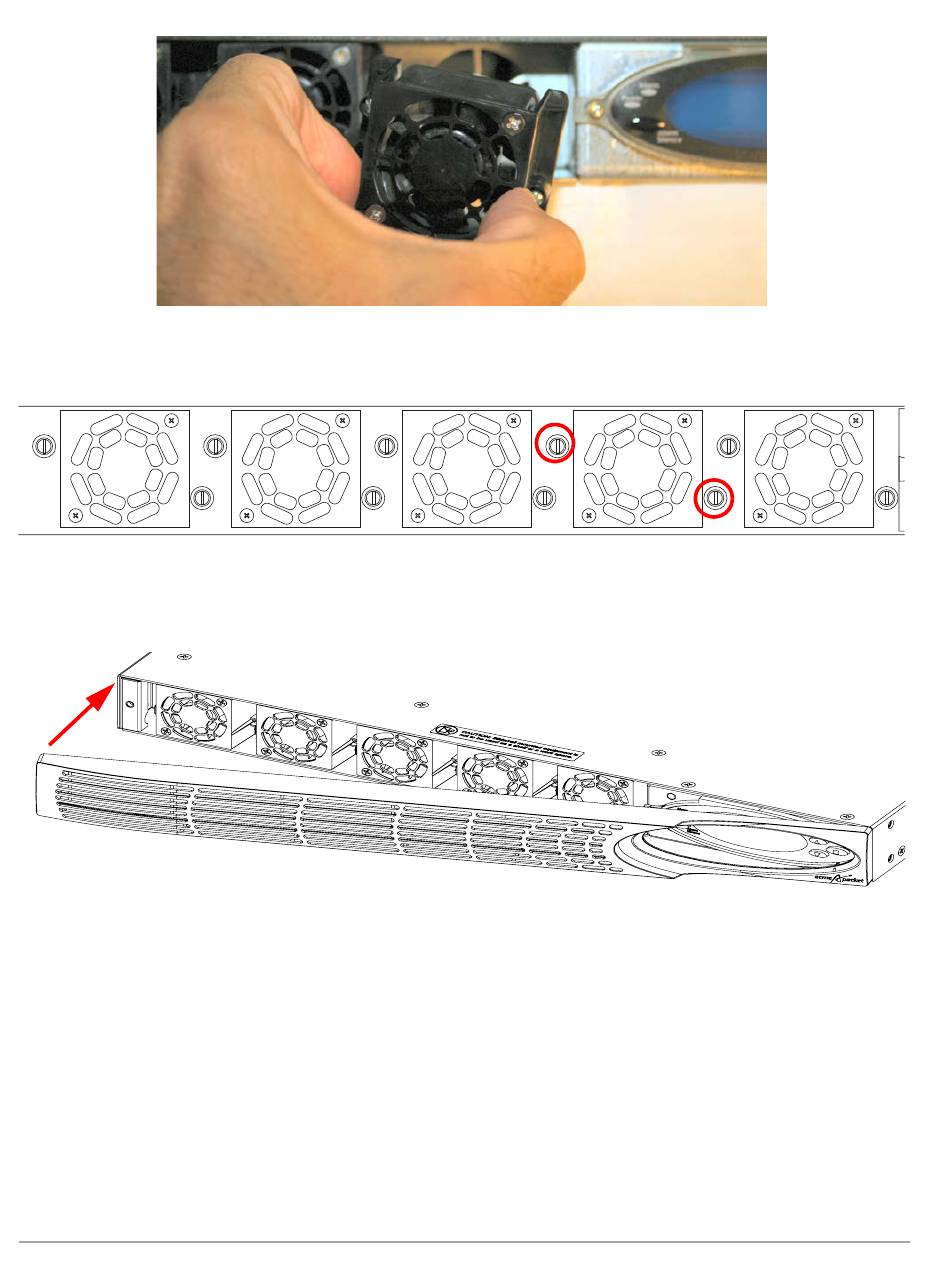

Figure 6 - 99. Inserting the Fan into the Chassis Slot
2. Using a small bladed screwdriver, tighten the two captive screws to hold
the fan into place.
Figure 6 - 100. Tightening Fan-Fastening Screws
3. Install the front bezel onto the Acme Packet 6100 by attaching the magnetic
bezel to one side of the chassis front and then pivot the other side of the
bezel until the other magnetic side attaches.
Figure 6 - 101. Replacing the Front Bezel
4. The replacement fan and bezel are installed into the Acme Packet 6100.
The Acme Packet 6100 air filter removes airborne particles before they are
drawn into the Acme Packet 6100 chassis. To prevent system malfunction and
prolong the life of the system's cooling components:
Replace the fan filter every three months
•
Clean the air inlets once a week.
•
Cooling maintenance encompasses cleaning the fan module and cleaning the
air inlets on the front of the Acme Packet 6100 chassis. Cleaning the fan module
