Oracle Acme Packet 6100 Hardware Installation Manual page 17

Alarm LED
Alarm Silence Button
Graphic Display
Navigation Buttons
Intake Fans
Rear Panel
IN
OUT
Acme Packet 6100 Hardware Installation Guide
The alarm LED on the front control panel indicates if any alarms are active on
the Acme Packet 6100. The LED can be three potential colors to indicate the
severity of the alarms:
Unlit — indicates the system is fully functional without any faults.
•
Amber — indicates that a major alarm has been generated.
•
Red — indicates that a critical alarm has been generated.
•
The alarm silence button clears the alarm table internally and opens the alarm
circuits connected to the network interface unit's alarm port.
The graphic display is a four-line VFD display window on the Acme Packet
6100 front control panel that reports real-time status, alarms, and general
system information.
Use the navigation buttons to navigate through the menus and information
visible on the graphic display.
Five individual intake fans keep the Acme Packet 6100 cool by blowing air
through the front panel and exhausting heated air through the rear of the
chassis. The intake fans are hot-pluggable and are covered by a particle filter
that prevents excess dust and contaminants from entering the system. The
particle filter is attached to the rear of the front bezel.

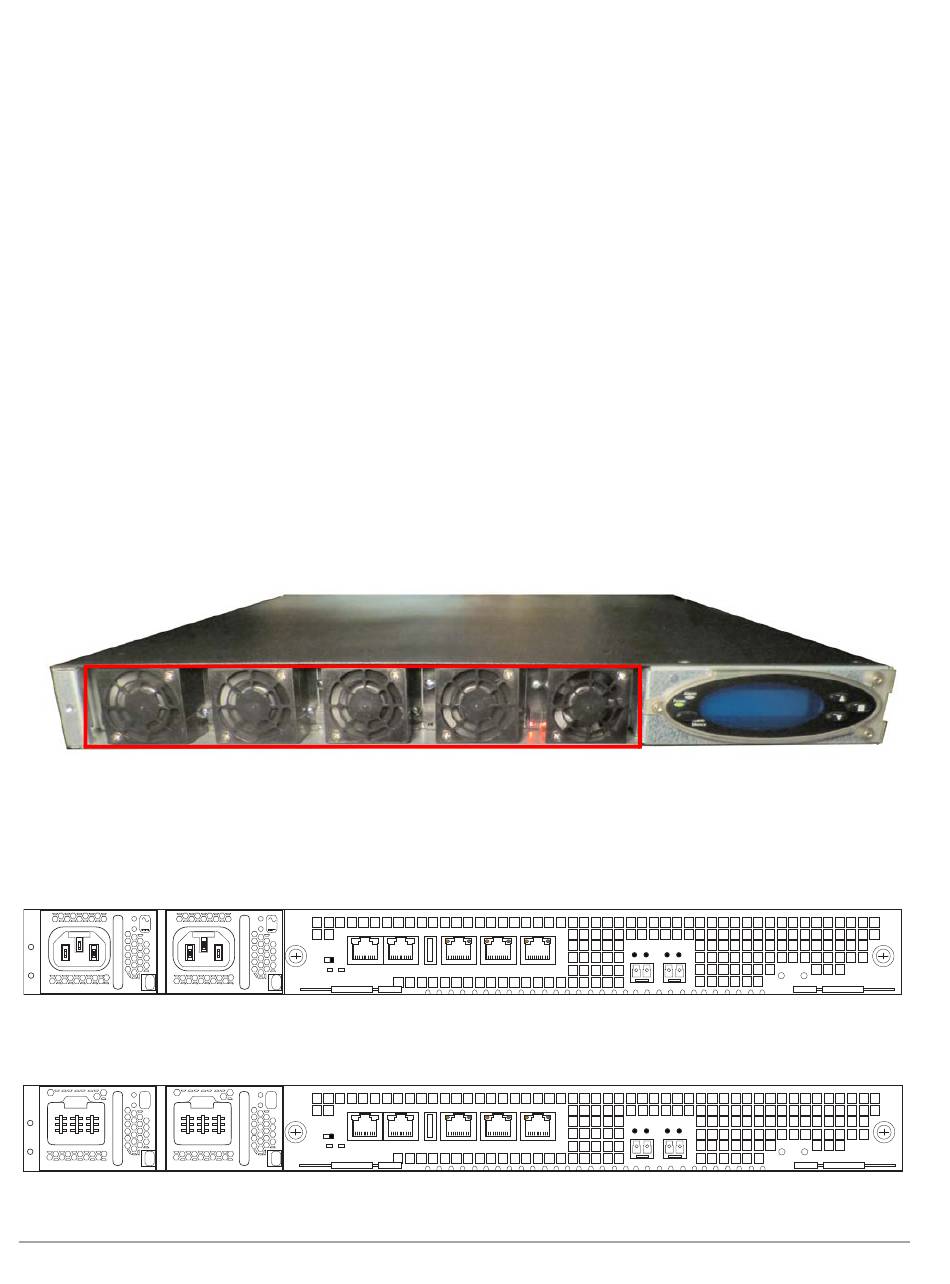

Figure 2 - 13. Intake Fans (shown with front bezel removed)
Power supplies and the network interface unit are located on the rear chassis
panel. Rear panel components are described in subsequent sections of this
chapter.
System
Power
On Stby
Console Alarm USB
Stby Dis
Figure 2 - 14. Acme Packet 6100 - Rear Panel with AC Power Supplies
IN
OUT
System
Power
On Stby
Console Alarm USB
Stby Dis
Figure 2 - 15. Acme Packet 6100 - Rear Panel with DC Power Supplies
LINK ACT
Mgmt 0 Mgmt 1 Mgmt 2
LINK ACT
Mgmt 0 Mgmt 1 Mgmt 2
LINK ACT
PWR H/S
LINK ACT
PWR H/S
9
