Acme Packet 6100 Hardware Installation Guide
2.
Pull the bale clasp latch out and down. It will pivot downwards on its
hinge.

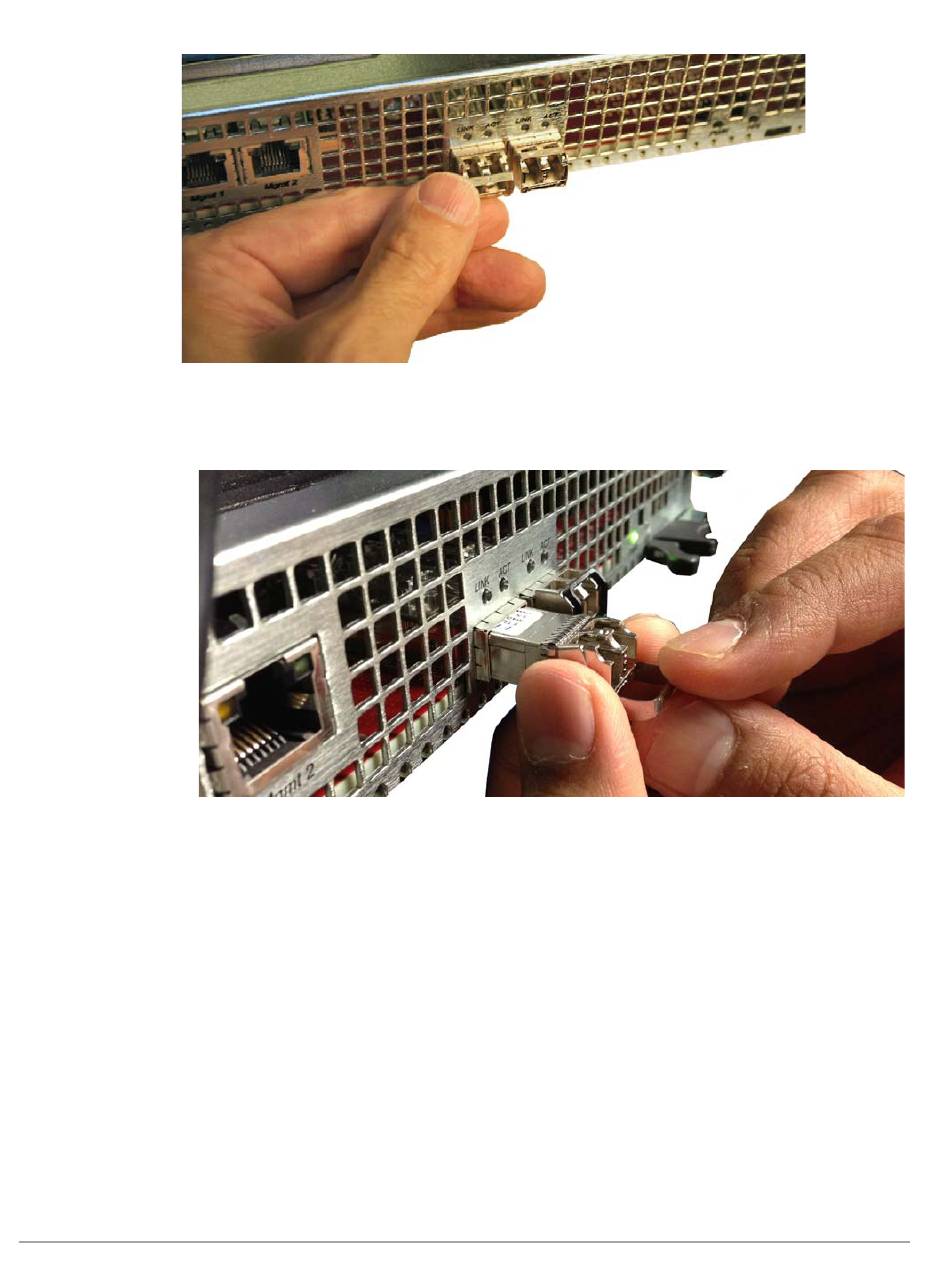

Figure 6 - 121. Lowering the FSP+ Bale Clasp Latch
3.
Holding the extended bale clasp latch with one hand, use your other hand
to pull the optical transceiver fully out of its socket in the physical interface
card.
Figure 6 - 122. Removing the Optical Transceiver
81
